24W桌面式開關電源適配器
| 型號： | GFP241DA-1220-1 |
|---|---|
| 品牌： | - |
| 原產地： | 中國 |
| 類別： | 電子、電力 / 電源和配電設備 / 適配器 |
| 標籤︰ | GFP241DA-2410-1 , GFP241DA-0926-1 , GFP241DA-1220-1 |
| 單價： |
-
|
| 最少訂量： | 500 件 |
產品描述

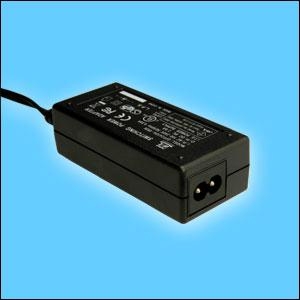

24W Power Adapter
Model : GFP241DA-XXXX-1
Description
- Market:USA,Canada,Japan,Europe
- Desk-top Type
- Meet CEC Regulations
- ROHS Compliance
- Efficiency Level V
General Specifications
| Maximum output power: | 24W |
| Input voltage: | 90~264Vac |
| Input Frequency: | 47Hz~63Hz |
| Input Current: | 0.55A |
| Leakage Current (max): | 0.25mA |
| No Load Power Consumption: | Less than 0.3W |
| Efficiency: | Meet CEC |
| Ripple noise (max): | +1% Voltage Max |
| Line Regulation: | ±1% |
| Load Regulation: | ±5% |
| Hold-Up Time: | 16mS |
| Over Voltage Protection: | 120% |
| Operating Temperature: | 0~40°C |
| Storage Temperature: | -20~85°C |
| Storage Humidity: | 5%RH~95%RH |
| Withstand voltage: | AC 3KV |
| Burn-In Test: | 100% Full Load |
| MTBF: | 50000Hours |
| Weight: | 175g |
Dimensions
LxWxH: 96x43.7x27.8 (mm)
| Model | INPUT | OUTPUT |
| GFP241DA-0540-1 | 5V 3.1A-4A | |
| GFP241DA-0638-1 | 6V 2.9A-3.8A | |
| GFP241DA-0926-1 | 9V 2.1A-2.6A | |
| GFP241DA-1024-1 | 90-264VAC | 10V 1.9A-2.4A |
| GFP241DA-1220-1 | (47-63Hz) | 12V 1.6A-2.0A |
| GFP241DA-1516-1 | 15V 1.2A-1.6A | |
| GFP241DA-2410-1 | 24V 0.8A-1.0A
|
| 付款方式︰ | T/T,PAYPAL |
|---|---|
