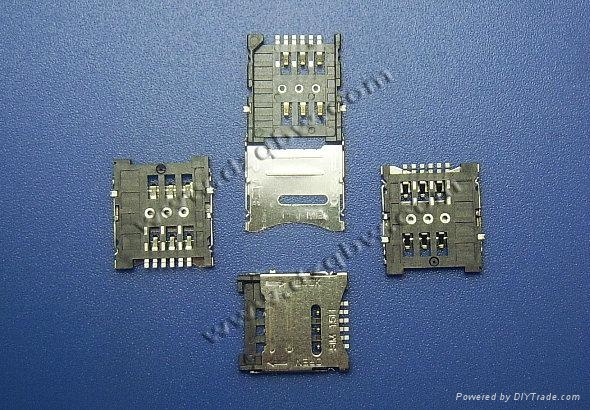

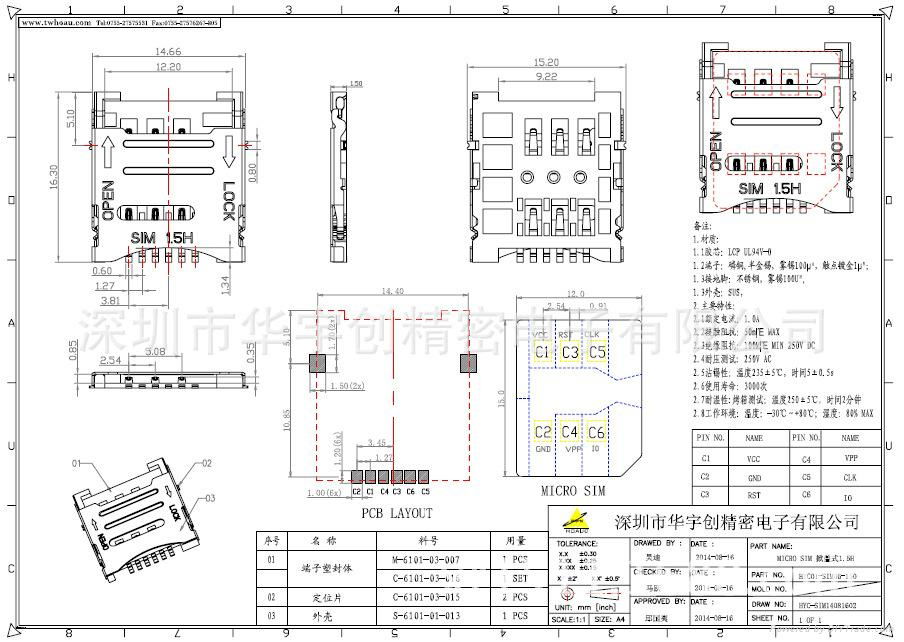

MICRO SIM 6P掀蓋1.5卡座

Voltage Rating : 250V AC

Current Rating : 0.5Amps Max

Contact Resistance (signal): 100mΩInitial (140mΩAfter Test) Max.

Insulation Resistance : 500mΩMin. at 500VDC .

Dielectric Withstanding Voltage : 250VAC/Minute .

Operating Temperature : -55?C~+85?C

Mating Cycle : 5000 Insertions

本產品適用於手機，平板電腦，POS機，無線路由器等產品，現有生產SIM 6P,SIM 6P沉板，SIM 6+1,SIM 6+2，SIM 8P，SIM 8+1,SIM8+2.品質穩定，交期快。現大量出貨，歡迎來電咨詢洽談。
