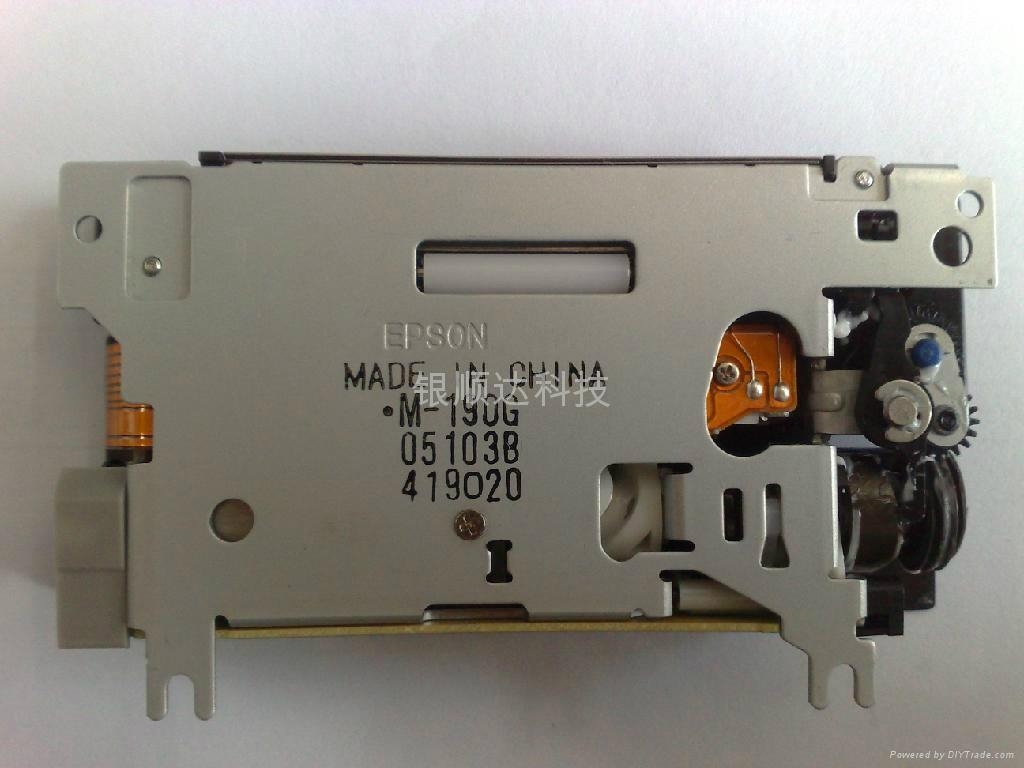

EPSON M-190G
梭式點陣打印機M-190G

M-190G：M-190系列的升級型號

清晰、快速的打印輸出
M-190G系列的打印速度比早先的M-190還要快，這種小型點陣打印機可以滿足清晰快捷的打印輸出。

處理低質紙張能力的改進，處理低質紙張的效果好。

能使用ERC-40耐用型色帶
M-190G採用新型ERC-40耐用色帶，能打印200萬個字符。

技術規格：
M-190G Series (1 Station Printer)
Model M-190G
Printing Method Shuttle impact dot matrix
Printing Format 　
Font 5 x 7
Column capacity 24 columns
Character size 1.7 (W) x 2.6 (H) mm
Line spacing 3.7 mm (In case of 5 x 7 font and 3 dots / line paper feed)
Column spacing 2.0 mm
Number of total dots 144 dots / line
Printing Speed 2.7 lines / sec. ± 20%
Print head 　
Voltage 5.0 ± 0.5 VDC
Peak current Approx. 2.5 A / solenoid (at 5 VDC)
Motor 　
Voltage 5.0 ± 0.5 VDC
Mean current Approx. 0.35 A (at 5 VDC)
Paper Roll paper
Dimensions 57.5 ± 0.5 mm (W) x dia 83 mm max.
Total Thickness 0.06 to 0.085 mm
Copy Capability Original and one copy
Ribbon Cassette ERC-09 / ERC-22 / ERC-40
Operating Temperature -10 to 50℃ (using ERC-22, ERC-40)
Reliability 　
Print head Life -
MCBF 1,500,000 lines
Printer Life 2,250,000 lines
Overall Dimens ions 91.0 (W) x 46.9 (D) x 15.8 (H) mm
Mass (without options) Approx. 100 g
