型號: | 齐全 |
---|---|
品牌: | Jacob |
原產地: | 德國 |
類別: | 工業設備 / 機械五金 / 其他機械五金 |
標籤︰ | Jacob電纜接頭 , Jacob電纜接頭 , Jacob防爆產品 |
單價: |
¥2
/ 件
|
最少訂量: | 100 件 |
“上海淼亮供應Jacob喇叭口黃銅鍍鎳電纜接頭”詳細介紹

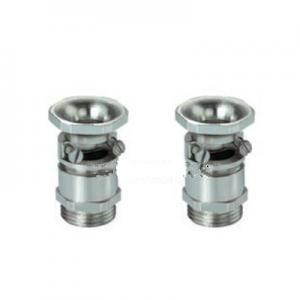

Jacob喇叭口黃銅鍍鎳電纜接頭(Jacob-Trumpet-shaped cable gland)
JACOB FAVORIT cable gland 23.6xxMxx,FAVORIT cable gland 23.6xx
>> Configuration
Pressure screw:Brass CuZn39Pb3, nickel-plated
Strain relief clamp:Brass, nickel-plated
Bolts:Stainless steel
Washers:Steel, zinc-plated
Sealing ring:SBR/NBR, multiple perforation
Gland body:Brass CuZn39Pb3, nickel-plated
Connecting thread:metric, as per EN 60423
>>Properties
increased anchorage and bending protection
Temperature range:-30°C/+100°C
Protection grade:IP55
Comment:connecting thread long available on request
>>Features
Connecting thread standard length
A | ØC | L | SW1 | SW2 | H | Part No. | |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | Piece | ||
M12x1,5 | 5,5 - 8 | 6 | 17 | 20 | 35,5 | 100 | 23.609M12 |
M16x1,5 | 6 - 11,5 | 6 | 20 | 24 | 37 | 50 | 23.611M16 |
M20x1,5 | 6 - 11,5 | 6,5 | 22 | 24 | 37,5 | 50 | 23.611M20 |
M20x1,5 | 8 - 11,5 | 6,5 | 22 | 27 | 38,5 | 50 | 23.613M20 |
M25x1,5 | 8,5 - 15 | 7 | 27 | 30 | 40,5 | 50 | 23.616M25 |
M25x1,5 | 12 - 19 | 7 | 30 | 34 | 44,5 | 25 | 23.621M25 |
M32x1,5 | 17 - 27 | 8 | 40 | 46 | 51 | 10 | 23.629M32 |
M40x1,5 | 17 - 27 | 8 | 43 | 46 | 51 | 10 | 23.629M40 |
* Clamping range of anchorage
Connecting thread standard length
A | ØC | L | SW1 | SW2 | H | Part No. | |
---|---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | Piece | ||
Pg 9 | 6 - 8,5 | 6 | 17 | 20 | 35,5 | 50 | 23.609 |
Pg 11 | 7,5 - 11,5 | 6 | 20 | 24 | 37 | 50 | 23.611 |
Pg 13,5 | 8,5 - 13 | 6,5 | 22 | 27 | 38,5 | 50 | 23.613 |
Pg 16 | 9,5 - 15 | 6,5 | 24 | 30 | 40 | 50 | 23.616 |
Pg 21 | 12 - 19 | 7 | 30 | 34 | 45 | 25 | 23.621 |
Pg 29 | 16,5 - 27 | 8 | 40 | 46 | 51 | 10 | 23.629 |
* Clamping range of anchorage
