無風扇列車專用計算機VTC 6210-R
| 型號： | VTC 6210-R |
|---|---|
| 品牌： | Nexcom |
| 原產地： | 臺灣 中國 |
| 類別： | 電腦、影音數碼 / 電腦整機 / 工控電腦 |
| 標籤︰ | 列車專用計算機 , 車載計算機 , 無風扇工業計算機 |
| 單價： |
-
|
| 最少訂量： | 5 件 |
產品描述
VTC 6210-R基於Intel® Core™ 四核處理器 E3845 (1.91GHz), 是特別為列車車輛環境設計的。使VTC 6210-R符合EN50155 標準的強固，無風扇，緊湊型機制。VTC 6210-R在汽車和計算機之間，通過內置的CAN BUS 2.0B接口提供完整通訊能力。VTC 6210-R 具備豐富的PAN, WLAN 和 WWAN 無線連接。雙 SIM 卡支持，VTC 6210-R 通過軟件允許3個SIM 卡備份，以達到更好的連接質量。此外，3個SIM 卡 + 雙 WWAN 模塊體系結構可以提高帶寬，為更快的數據傳輸速度。不只是數據傳輸, VTC 6210-R也支持雙向語音通訊。配置智能電源管理，VTC 6210-R 可以通過引擎，RTC 定時器或SMS遠程消息喚醒。通過整合多種 I/O端口和3 x mini-PCIe插槽擴展, VTC 6210-R 保持靈活性以滿足不同車輛的應用需求，如信息娛樂系統，調度系統和視頻監控。
| CPU | Intel® Atom™ processor quad core E3845, 1.91GHz |
| 內存 | 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB. Default 2GB |
| 存儲 | 1 x 2.5" SSD/HDD SATA 2.0 (externally accessible, optional lockable storage available)1 x CFast (externally accessible) |
| 擴展 | 1 x Full size mini-PCIe socket (USB 2.0)1 x Full size mini-PCIe socket (USB 2.0 + PCIe)1 x Full size mini-PCIe socket (USB 2.0 + PCIe) |
| 功能 | 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with ReckoningBuilt-in G-sensor |

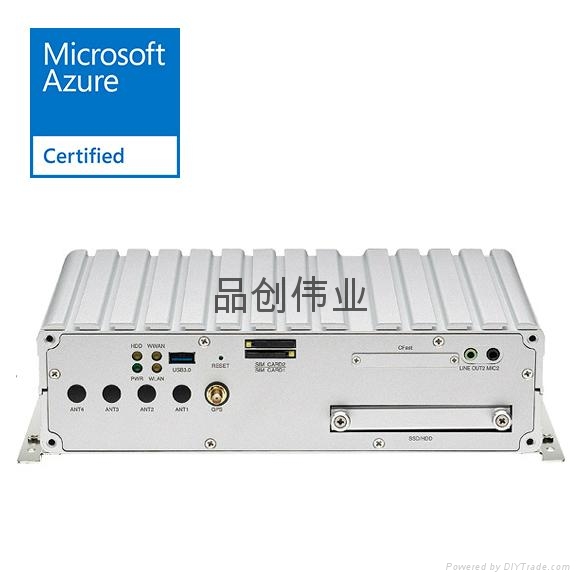

| I/O 前置接口 | 4 x LED for power, storage, WWAN, WLAN2 x Externally accessible SIM card socket (selectable)1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x Externally accessible 2.5" SATA 2.0 SSD/HDD tray1 x Externally accessible CFast card socket with cover1 x Reset button1 x Type A USB 3.0 compliant host, supporting system boot up4 x Antenna hole for WWAN/WLAN/BT |

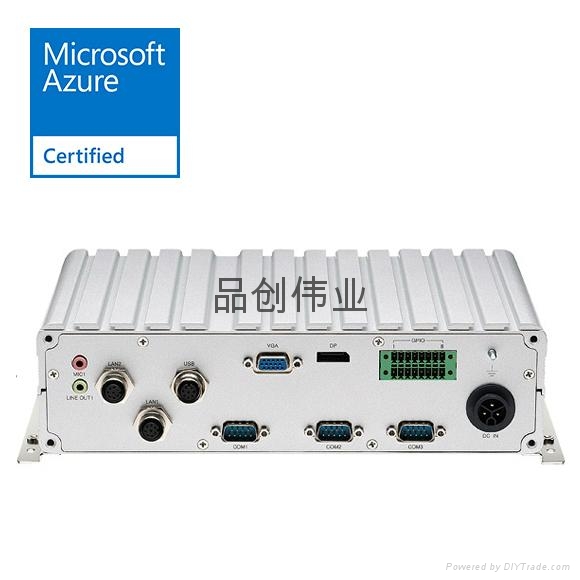

| I/O 後置接口 | 1 x Circle Type DC Input with ignition and typical 19W power consumption
- 24VDC(16.8~31.2V), non-isolation - 36VDC(25.2~46.8V), non-isolation - 110VDC(77~143V), w/ 3KVDC isolation1 x M12 with two USB 2.0 compliant host, supporting system boot up2 x M12 10/100/1000 Ethernet1 x Phone jack 3.5mm for 1 x Mic-in1 x Phone jack 3.5mm for 1 x Line-out1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz1 x DP port, resolution up to 2560 x 1600 @60H1 x Antenna hole for GPS2 x DB-9 RS-232 (isolation)1 x DB-9 RS-422/485 (isolation)1 x 16-pin terminal block - 1 x CAN Bus 2.0B (on board) - 4 x DI, 4 x DO with isolation Input Voltage (internal type): 5VDC TTL (default) Input Voltage (source type): 3 ~ 12VDC (Programmable Digital output or optional isolation) Digital output (sink type): 5VDC TTL (default), max current: 20mA Digital output (source type): 3 ~ 19VDC, max current: 150mA |
| 電源管理 | Ignition On/Off controlProgrammable On/Off delay timerSystem wake up event
Ignition switch RTC timer ALARM interrupt Cellular MODEM wakeup signalSystem wake up condition Wake up event is triggered, and DC input voltage is greater than UVP threshold Timer delay is only applicable for Ignition on System power down condition Soft off, or Ignition off Timer delay is only applicable for Ignition off |
| 操作系統 | Windows 8, WES8Window 7, WES7Linux kernel 3.X |
| 尺寸 | 260mm (W) x 176mm (D) x 70mm (H) (10.24" x 6.93" x 2.75")Weight: 2.5kg |
| 環境 | Operating temperatures:
-40°C to 70°C (w/ industrial SSD) with air flow -20°C to 50°C (w/ commercial HDD) with air flowStorage temperatures: -40°C to 85°CRelative humidity: 10% to 90% (non-condensing)Shock (SSD/HDD): Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g |
| 標準/認証 | CE approvalFCC Class AEN50155 conformity
- Ambient Temperature EN 50155 TX (-40 ~ 70° C) - Shock and Vibration IEC 61373 class B - Interruptions of Voltage Supply Class S1,S2 - Supply Change Over Class C1,C2 - EMC EN 50121-3-2 |
