產品介紹：

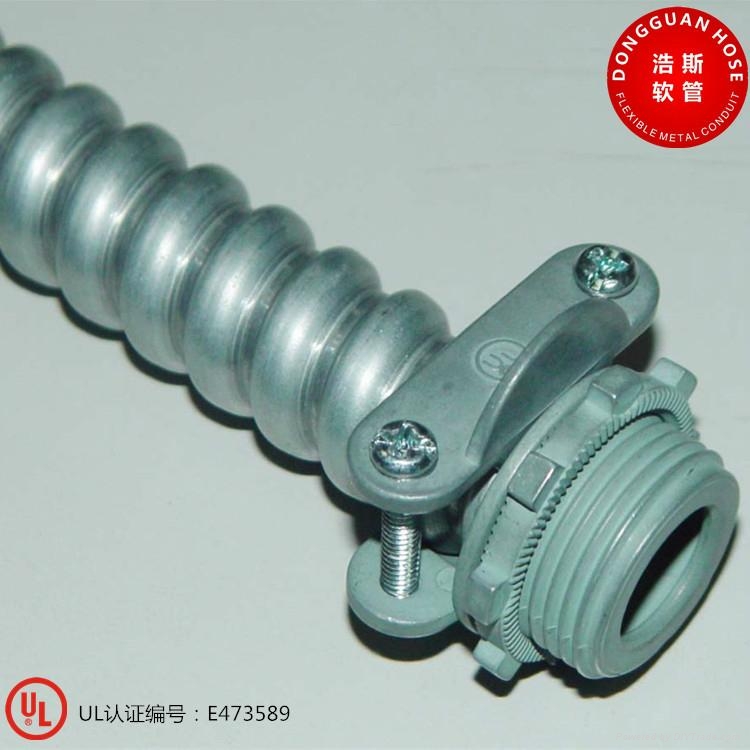

UL1金屬軟管



UL1 Flexible Metal Conduit







UL file：E473589



(認証編號：E473589)







UL美標金屬軟管，UL美標電工管



(RWS Flexible Metal Conduit)







Steel Flexible Metal Conduit. High Strength Steel Strip.



UL Recognized Component in 5/16". UL Listed in 3/8" through1/2".



CSA Certified for Trade Sizes 5/16" and 3/8" Available Upon Request.



















APPLICATIONS 應用：



RWS (Reduced Wall Steel) Flexible Metal Conduit is suitable for the following installations:



UL金屬軟管適用於以下安裝環境:



• Power and lighting branch circuit conductors and cables for connecting receptacles, luminaries, equipment,  office partitions, etc. 電力,照明,辦公區域的布線保護



• Environmental air-handling spaces per NEC® 300.22(C) 空調系統布線保護



• Metal raceway for wires and cables per NEC® (ANSI/NFPA-70) Article 348



鐵路布線保護



• Motor feeder, branch, and control circuit conductors and cables



馬達控制線路保護



• Class 1, Class 2, Class 3 Remote-control, signaling, and power-limited circuit conductors and cables



遠程控制、信號線路保護



• Fire alarm system co nductors and cables of power-limited or non-power-limited fire alarm circuits



火警系統線路保護



• Voice, data, communications and video cables including CATV and optical fiber cables



語音、數據、通訊、視頻、電視、光纖線路保護



• Concealed or exposed installations per NEC® Article 348 and the applicable NEC® provisions



密封防爆環境的線路保護



• Elevators, hoist ways, and escalators per NEC® 620.21  電梯、自動扶梯的線路保護



• As a grounding conductor for lengths up to 6 feet (20A max) as per 2011 NEC® 250.118(5)



• Electric signs and outline lighting per NEC® 600.7, 600.31 (1000 volts or less), and 600.32 (>1000 volts) 戶外招牌及照明的線路保護



• Hazardous location, Class 1, Div. 2, for flexible connectors only per 2011 NEC® 501.10(B)(2) & 501.30(B) 危險場所的線路保護



• UL 1, 2, & 3 Hour Through Penetration Fire stop  Systems: C-AJ-1462, C-AJ-1463, C-AJ-1464, W-L-1308, andW-L-1309 焊接滅火系統的線路保護











CONSTRUCTION and SIZE結構及尺寸：



RWS flexible metal conduit is manufactured with a galvanized, corrosion resistant, high strength steel alloy. The metal strip is helically formed into a continuously interlocked flexible metal conduit that can withstand impact and crushing forces. UL金屬軟管由鍍鋅、防腐、高強度的鋼帶製成， 鋼帶採用波浪自鎖型結構，具有很強的的機械抗壓抗拉保護性能。







Trade Size (Inches)	Approximate Weight (lbs/100 ft)	Inner Diameter Min./Max.(mm)	Outer Diameter Min./Max. (mm)	Approx. Bend Radius* (Inches)	Standard Coil Length (feet)	Standard Reel Length (feet)
5/16 *	16	7.92~8.32	11.94~12.95	3.5	100	1000
3/8  *	18	9.52~9.96	14.22~15.49	4	100 / 250	1000
9/16 *	23	13.89~14.61	17.90~18.67	4	100 / 250	1000
1/2  *	27	15.88~16.38	21.84~23.37	4	100	500 / 1000
3/4  *	34.5	20.62~21.21	26.54~28.07	5	100	500 / 1000
1 *	57	25.40~26.42	33.02~35.05	6	50	400
1--1/4 *	68	31.75~33.02	39.37~41.40	8	50	250
1--1/2 *	78	38.10~40.01	46.99~49.53	10	25	150
2 *	133	50.80~52.83	59.69~62.23	12	25	100
2--1/2 *	165	> 63.5	72.64~77.72	15	25	100
3 *	197	> 76.2	85.34~90.42	18	25	100
3--1/2 *	231	> 88.90	98.04~103.12	21	25	100
4 *	264	> 101.6	110.72~115.82	24	25	100







* Trade size 5/16" is provided as UL Recognized construction.



Minimum bend radius based on NEC Chapter 9 (other bends).







FEATURES 產品特性：



• Provides mechanical protection for conductors and cable



 為線纜提供機械保護

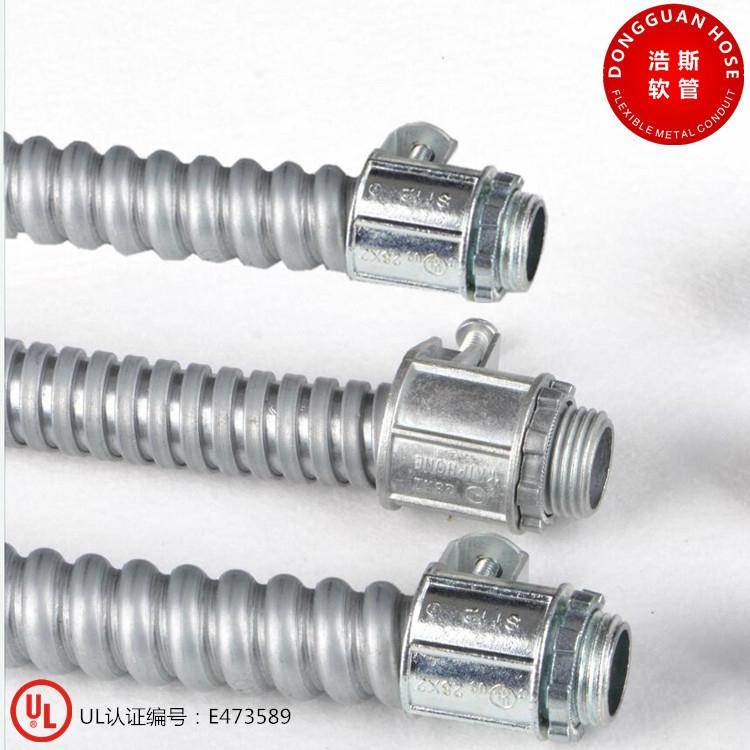

• For use with listed connectors intended for NEC Type FMC (Flexible Metal Conduit)



可配接符合UL規範的接頭



• Smooth interior for easy wire pulling



內壁光滑，適於穿線



• High strength steel construction



高強度鋼鐵結構



• Hot-dipped, heavy zinc coating for rust/corrosion resistance



熱鍍鋅層保護免受腐蝕侵害



• Superior crush proof qualities



超強抗壓



• Built in flexibility for simplified positioning



柔軟靈活，方便布線安裝
