產品結構 | Product Structure

外殼材料：鋁

Shell Material: Aluminum

引出方式：插片

Capacitor Lead Ways: Terminal tabs

特點與用途 | Features And Uses

該產品具有體積小、重量輕、損耗低、絕緣電阻高、自愈性好、耐衝擊電流大、過載能力強、性能穩定等特點。內部裝有防爆裝置，安全防護性能可靠。適用於空調、冰箱、電機、壓縮機等的啟動與運行。

The capacitor has advantages of small volume, light weight, low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrying capacity, and steady electricity performance, and reliable safety with inner anti-explosion, etc. Suitable for air conditioning, refrigerator, motor, compressor. Contribute to motor's starting and running.

技術參數 | Technical Parameter

額定電壓 Rated Voltage: 150~500V.AC

容量範圍 Capacitance Range: 1~100μF (μF=MFD)

容量偏差 Capacitance Tolerance: ±5%

工作頻率 Operating Frequency: 50Hz/60Hz

氣候類別 Climate : 40/85/21

環境溫度 Ambient Temp: -40~85℃

試驗電壓 Test Voltage: T-T: 2Un/2S, T-C: 2200V.AC/2S

損耗角正切值 Dissipation Factor (loss): tan δ≤0.002 (100Hz)

安全等級 Class of Safety protection: S0、S1、S2、S3

運行等級 Class of operation: CLASS A(30000H)、CLASS B(10000H)、CLASS C(3000H)

執行標準 Executing Standards: IEC60252，EN60252，VDE0560-8，UL810，GB/T3667.1-2005

通過認証 Valid certification: ISO9001、ISO14001、CQC、UL、CE、TUV、VDE、CSA、ROHS、SGS

No.	Specification	Shell size
01	CBB65, 450V.AC, 20uF, ±5%, 2+4 250#	Φ45*75mm
02	CBB65, 450V.AC, 25uF, ±5%, 2+4 250#	Φ45*100mm
03	CBB65, 450V.AC, 30uF, ±5%, 2+4 250#	Φ45*100mm
04	CBB65, 450V.AC, 35uF, ±5%, 2+4 250#	Φ50*100mm
05	CBB65, 450V.AC, 40uF, ±5%, 2+4 250#	Φ50*100mm
06	CBB65, 450V.AC, 45uF, ±5%, 2+4 250#	Φ50*110mm
07	CBB65, 450V.AC, 50uF, ±5%, 2+4 250#	Φ50*110mm
08	CBB65, 450V.AC, 60uF, ±5%, 2+4 250#	Φ50*125mm
09	CBB61, 450V.AC, 1uF, ±5%, 2+2 187#	12*26*37
10	CBB61, 450V.AC, 1.2uF, ±5%, 2+2 187#	12*26*37
11	CBB61, 450V.AC, 1.5uF, ±5%, 2+2 187#	15*26*37
12	CBB61, 450V.AC, 2uF, ±5%, 2+2 187#	15*26*37

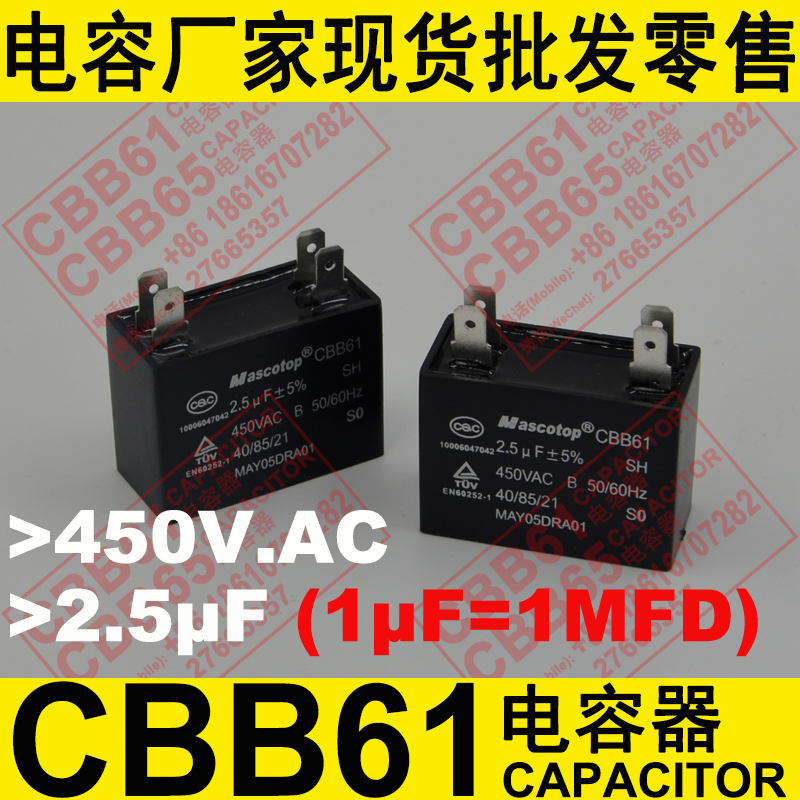

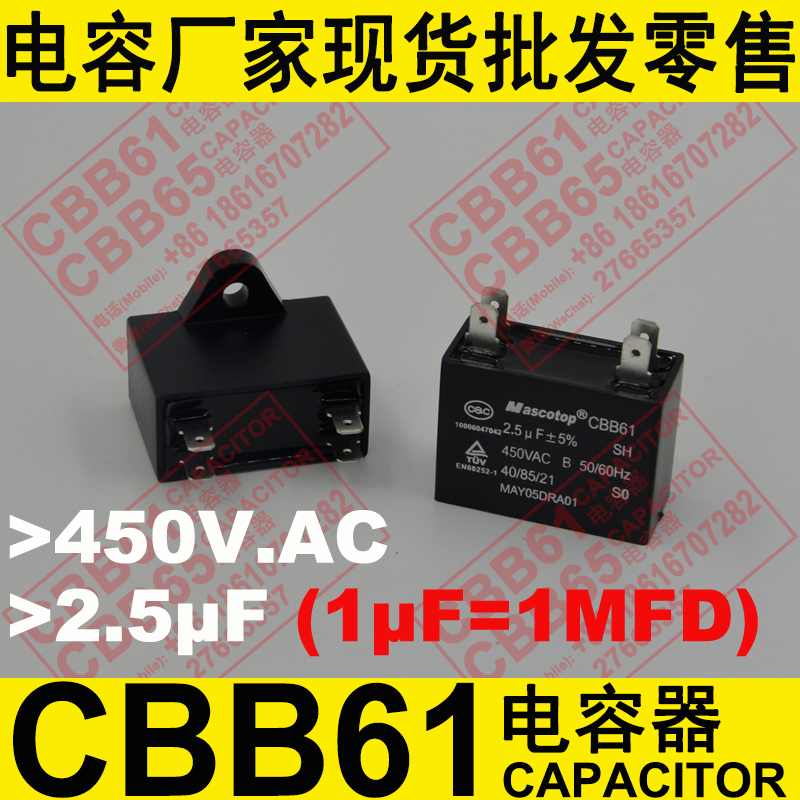

13	CBB61, 450V.AC, 2.5uF, ±5%, 2+2 187#	18*28*37
14	CBB61, 450V.AC, 3uF, ±5%, 2+2 187#	18*28*37
15	CBB61, 450V.AC, 3.5uF, ±5%, 2+2 187#	18*29*47
16	CBB61, 450V.AC, 4uF, ±5%, 2+2 187#	18*29*47
17	CBB61, 450V.AC, 4.5uF, ±5%, 2+2 187#	18*34*47
18	CBB61, 450V.AC, 5uF, ±5%, 2+2 187#	18*34*47
19	CBB61, 450V.AC, 6uF, ±5%, 2+2 187#	22*34*47
20	CBB61, 450V.AC, 7uF, ±5%, 2+2 187#	22*34*47
