鴻成達廠家定製防靜電週轉車 SMT車間防靜電PCB槽板車
用途及特性
Uses and characteristics
1.有效消除PCB板在生產週轉中產生的靜電危害.
2.隨意調節槽板之間的間距，用於存放不同規格的PCB板.
3.方便運輸及存儲.
1. Effectively eliminate the static electricity harm that PCB board in production turnover.
2. Arbitrarily adjust the spacing between the slot board for storing differentspec of PCB boards.
3. Convenient transportation and storage.

規格specification

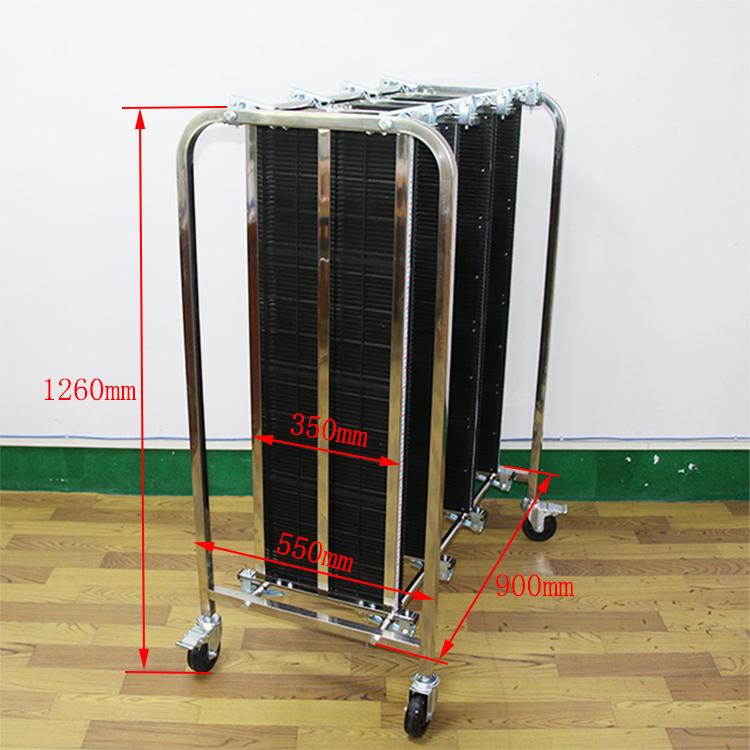

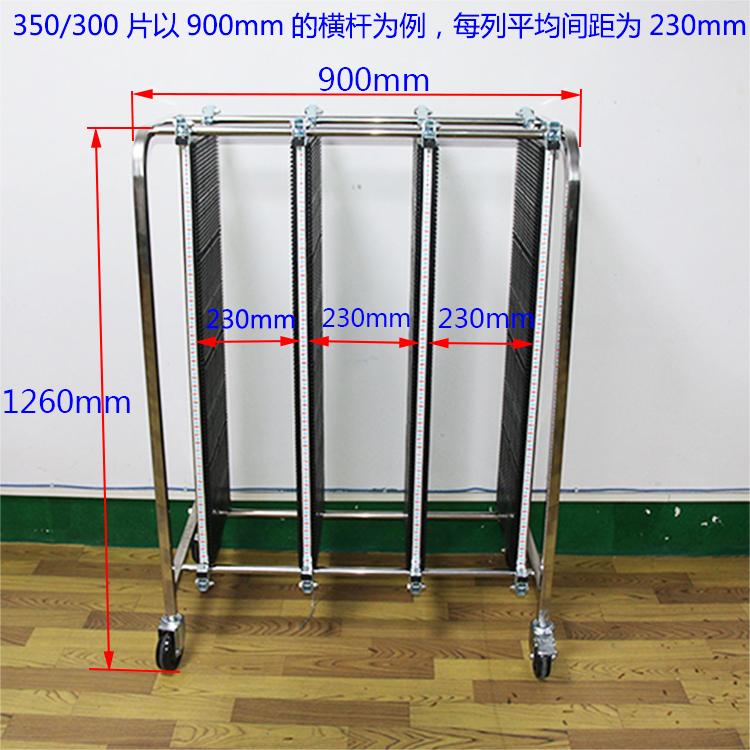

900*550*1260 3列
靜電板槽長：350mm  槽寬5mm 槽深5mm
900*550*1260 3 columns
Electrostatic plate slot length: 350mm slot width 5mm slot depth 5mm

材質明細
Material Details
1.框架：不鏽鋼，
2.槽板：PP，
3.調節扣：金屬鍍鉻，
4.輪子：導電橡膠輪.
1.Frame:Stainless steel,
2.Slot board:PP,
3.Adjustment buckle:Metal chrome plating,
4.Wheels:Conductive rubber wheels.
表面電阻：10^6-10^9Ω
測試環境：25±2℃
RH:55%±5%
Surface resistance: 10^6-10^9Ω
Test environment: 25±2℃
RH: 55% ± 5
