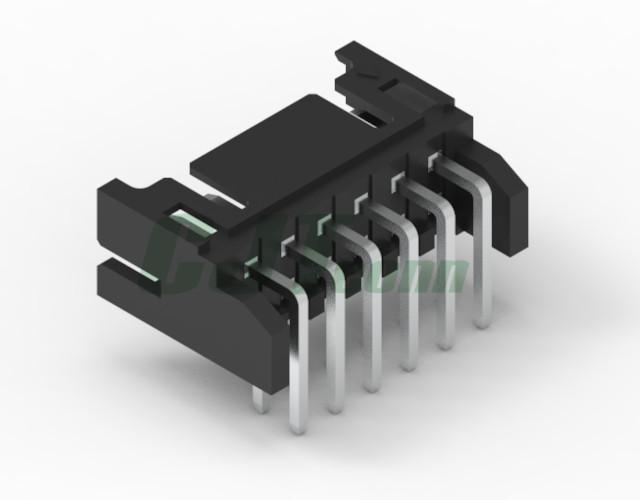

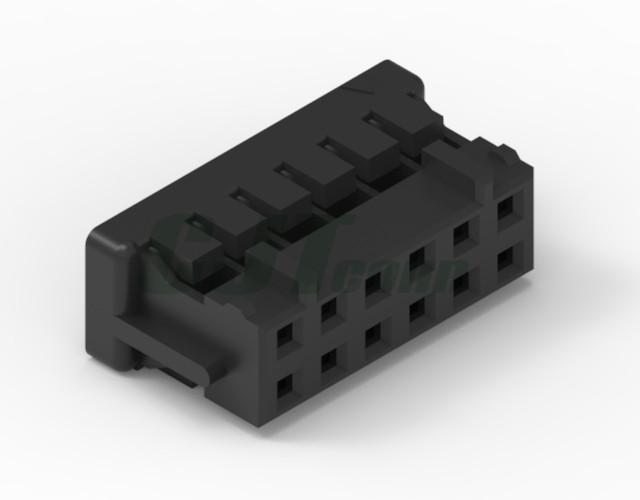

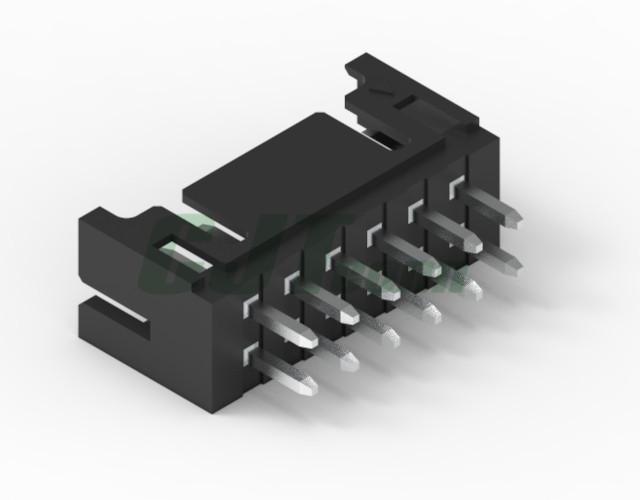

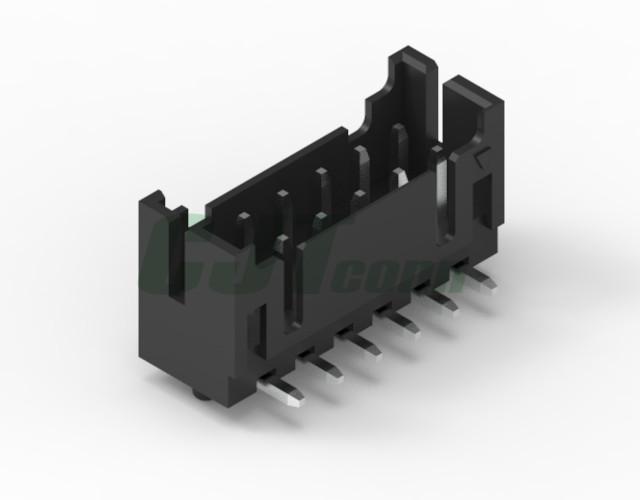

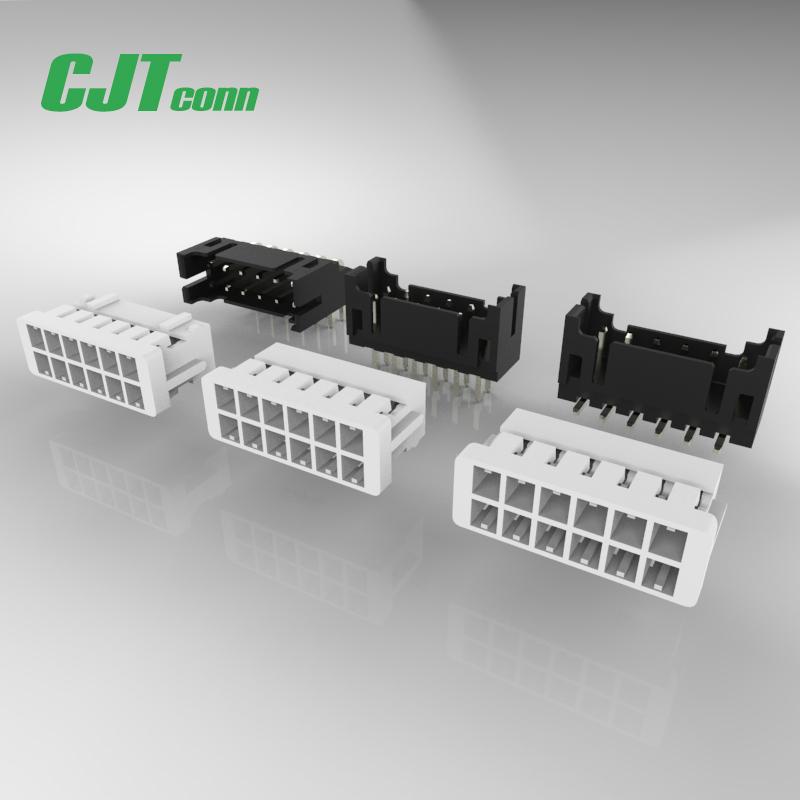

廣瀨連接器同等品 DF11-4DS-2C DF11-6DS-2C 2.0mmPCB插座 雙排

產品類型功能類別線對板
裝配類型針座
節距（mm）2.00mm
產品系列A2009系列
配置功能行數2
針數2x2P〜2x20P
電氣特性工作電壓（V AC / DC）250
電流（最大）（A）2
接觸電阻30mΩMax
絕緣電阻1000MΩMin
外殼特性外殼材料尼龍66，UL94V-0
顏色黑色
PIN材質黃銅
鎳上的PIN鍍錫
使用環境工作溫度範圍（°C）-40℃〜105℃
行業標準UL / CUL E326732

DF11-4DP-2DSA(08)

DF11-6DP-2DSA(08)

DF11-8DP-2DSA(08)

DF11-10DP-2DSA(08)

DF11-12DP-2DSA(08)

DF11-14DP-2DSA(08)

DF11-16DP-2DSA(08)

DF11-18DP-2DSA(08)

DF11-20DP-2DSA(08)

DF11-22DP-2DSA(08)

DF11-24DP-2DSA(08)

DF11-26DP-2DSA(08)

DF11-28DP-2DSA(08)

DF11-30DP-2DSA(08)

DF11-32DP-2DSA(08)

DF11-34DP-2DSA(08)

DF11-36DP-2DSA(08)

DF11-38DP-2DSA(08)

DF11-40DP-2DSA(08)



DF11-4DP-2DSA(24)

DF11-6DP-2DSA(24)

DF11-8DP-2DSA(24)

DF11-10DP-2DSA(24)

DF11-12DP-2DSA(24)

DF11-14DP-2DSA(24)

DF11-16DP-2DSA(24)

DF11-18DP-2DSA(24)

DF11-20DP-2DSA(24)

DF11-22DP-2DSA(24)

DF11-24DP-2DSA(24)

DF11-26DP-2DSA(24)

DF11-28DP-2DSA(24)

DF11-30DP-2DSA(24)

DF11-32DP-2DSA(24)

DF11-34DP-2DSA(24)

DF11-36DP-2DSA(24)

DF11-38DP-2DSA(24)

DF11-40DP-2DSA(24)



DF11-4DP-2DSA(20)

DF11-6DP-2DSA(20)

DF11-8DP-2DSA(20)

DF11-10DP-2DSA(20)

DF11-12DP-2DSA(20)

DF11-14DP-2DSA(20)

DF11-16DP-2DSA(20)

DF11-18DP-2DSA(20)

DF11-20DP-2DSA(20)

DF11-22DP-2DSA(20)

DF11-24DP-2DSA(20)

DF11-26DP-2DSA(20)

DF11-28DP-2DSA(20)

DF11-30DP-2DSA(20)

DF11-32DP-2DSA(20)

DF11-34DP-2DSA(20)

DF11-36DP-2DSA(20)

DF11-38DP-2DSA(20)

DF11-40DP-2DSA(20)



DF11-4DP-2DSA(24)

DF11-6DP-2DSA(24)

DF11-8DP-2DSA(24)

DF11-10DP-2DSA(24)

DF11-12DP-2DSA(24)

DF11-14DP-2DSA(24)

DF11-16DP-2DSA(24)

DF11-18DP-2DSA(24)

DF11-20DP-2DSA(24)

DF11-22DP-2DSA(24)

DF11-24DP-2DSA(24)

DF11-26DP-2DSA(24)

DF11-28DP-2DSA(24)

DF11-30DP-2DSA(24)

DF11-32DP-2DSA(24)

DF11-34DP-2DSA(24)

DF11-36DP-2DSA(24)

DF11-38DP-2DSA(24)

DF11-40DP-2DSA(24)



DF11-4DP-2DSA(87)

DF11-6DP-2DSA(87)

DF11-8DP-2DSA(87)

DF11-10DP-2DSA(87)

DF11-12DP-2DSA(87)

DF11-14DP-2DSA(87)

DF11-16DP-2DSA(87)

DF11-18DP-2DSA(87)

DF11-20DP-2DSA(87)

DF11-22DP-2DSA(87)

DF11-24DP-2DSA(87)

DF11-26DP-2DSA(87)

DF11-28DP-2DSA(87)

DF11-30DP-2DSA(87)

DF11-32DP-2DSA(87)

DF11-34DP-2DSA(87)

DF11-36DP-2DSA(87)

DF11-38DP-2DSA(87)

DF11-40DP-2DSA(87)



DF11-4DP-2DSA(80)

DF11-6DP-2DSA(80)

DF11-8DP-2DSA(80)

DF11-10DP-2DSA(80)

DF11-12DP-2DSA(80)

DF11-14DP-2DSA(80)

DF11-16DP-2DSA(80)

DF11-18DP-2DSA(80)

DF11-20DP-2DSA(80)

DF11-22DP-2DSA(80)

DF11-24DP-2DSA(80)

DF11-26DP-2DSA(80)

DF11-28DP-2DSA(80)

DF11-30DP-2DSA(80)

DF11-32DP-2DSA(80)

DF11-34DP-2DSA(80)

DF11-36DP-2DSA(80)

DF11-38DP-2DSA(80)

DF11-40DP-2DSA(80)
