臺灣振峰弔環、振峰吊鉤、YOKE 絕緣解決方案、YOKE Insulation Solution、YOKE絕緣旋轉鉤帶開式弔環及連接型自鎖鉤

YOKE絕緣旋轉鉤帶開式弔環及吊鉤

●●YOKE 絕緣旋轉件設計于焊接工程時，保護高架航車。
●●YOKE 具重型起重功能，帶有強大但自重輕巧的系統。
●●YOKE 旋轉件與組件都依EN1677-1進行載荷測試，至少為工作荷載極限的2.5倍。
●●YOKE 所有旋轉件在製造過程中都單獨進行測試，以確保絕緣特性能防禦1000伏高壓電。每項產品出廠裝箱時都帶有絕
緣測試証書。
●●YOKE 絕緣旋轉件設計帶有滾珠軸承，可以在載重情況下完全旋轉。
●●YOKE 獲得由德國 BG 公司認証 証書。

● YOKE Insulated Swivel is designed for winch protection in overhead crane during welding operations.
● Heavy hoisting with a strong but lightweight system.
● Individual swivels & components are proof load tested to a minimum of 2.5 times the working load limit.
● All Swivels are individually tested during manufacturing to assure 1000 Volts insulating property. Test
certificate is packaged with each unit shipped.
● YOKE Insulated Swivels are designed with ball bearing which performs to fully swivel under Load.
● Acquired certificate approved by Deutsche Gesetzliche Unfallversicherung (DGUV)

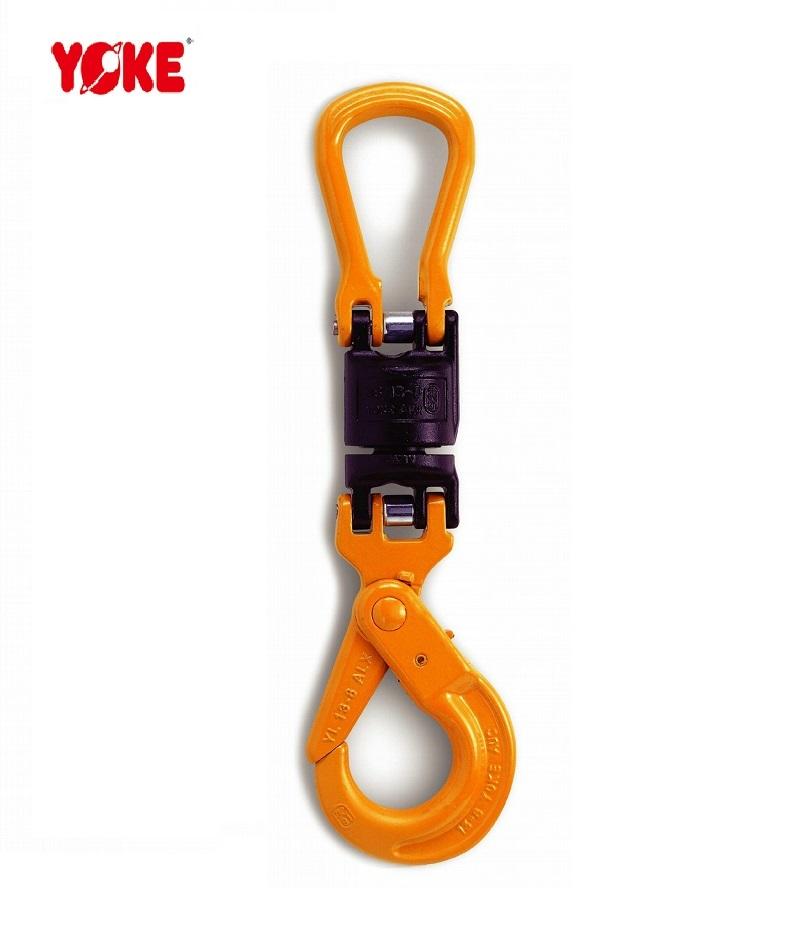

YOKE's innovative, fine design with " Coupling Pin " system hook is able to solve any of your problems in Chain, Wire Rope and Synthetic Slings.
The hook :
1. Create safer lifting with the use of " Self Locking " system.
2. Assembly is fast and easy with only a hammer required.
3. Acquired certificate approved by BG German company.
4. Patent :Taiwan, China, France, Germany, Italy, Japan,USA, Switzerland.

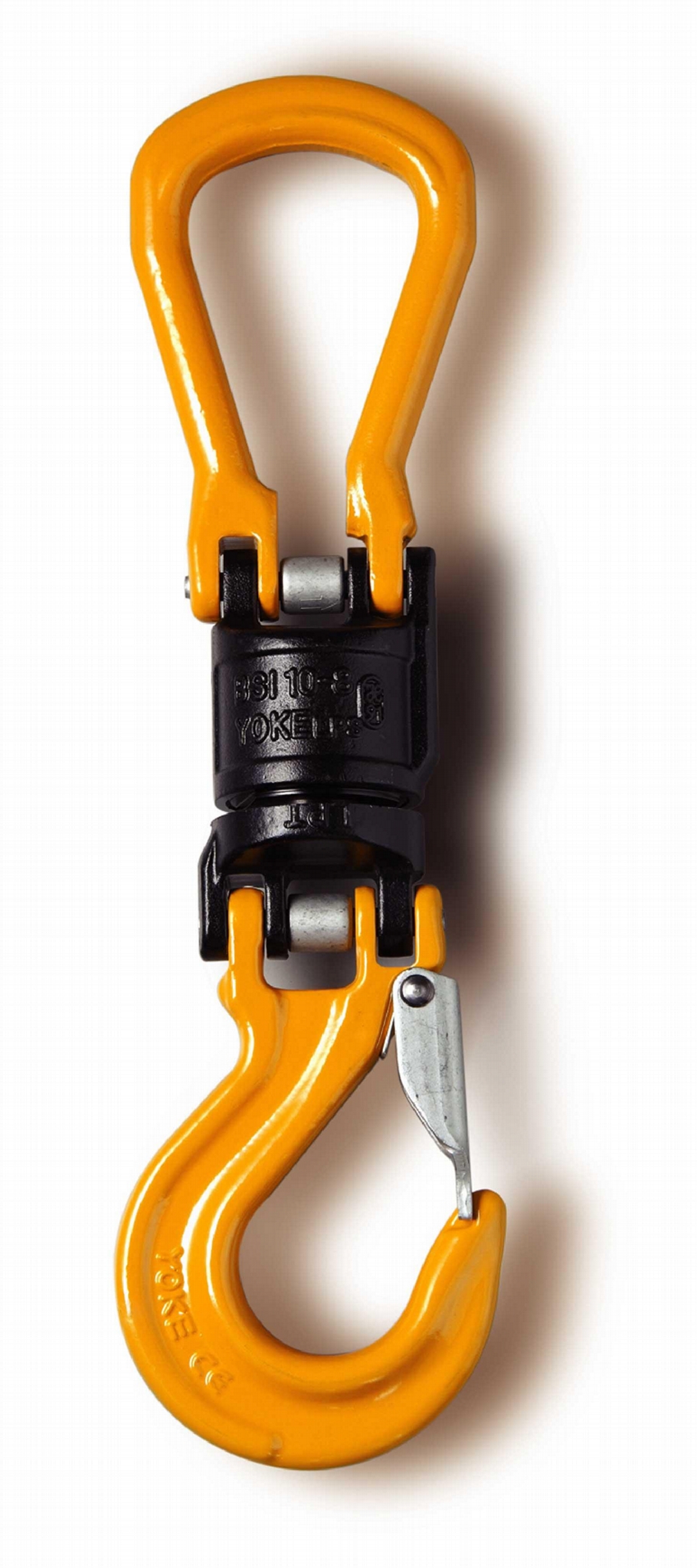

YOKE Insulated Blank Swivels.

with Ball Bearing
Individually tested to resist 1000 Volts insulated with Test Certificate.
Design for protection of overhead crane during welding operations on
suspended loads.

YOKE振峰絕緣弔環8-088N-07 2T絕緣旋轉環
YOKE振峰絕緣弔環8-088N-10 3.15T絕緣旋轉環
YOKE振峰絕緣弔環8-088N-13 5.3T絕緣旋轉環
YOKE振峰絕緣弔環8-088N-16 8T絕緣旋轉環
YOKE振峰絕緣弔環8-088N-20 12.5T絕緣旋轉環

YOKE振峰絕緣吊鉤8-123-07 2.0T
YOKE振峰絕緣吊鉤8-123-10 3.15T
YOKE振峰絕緣吊鉤8-123-13 5.3T
YOKE振峰絕緣吊鉤8-123-16 8.0T
YOKE振峰絕緣吊鉤8-123-20 12.5T
★ 設計因素4 : 1 經測試和認証。
根據EN1677 標準進行測試。
防禦1000 伏高壓電

Insulated Blank Swivels. Code " BSI "

with Ball Bearing
Individually tested to resist 1000 Volts insulated with Test Certificate.
Design for protection of overhead crane during welding operations on
suspended loads.

YOKE Insulation Solution

● YOKE Insulated Swivel is designed for winch protection in overhead crane during welding operations.
● Heavy hoisting with a strong but lightweight system.
● Individual swivels & components are proof load tested to a minimum of 2.5 times the working load limit.
● All Swivels are individually tested during manufacturing to assure 1000 Volts insulating property. Test
certificate is packaged with each unit shipped.
● YOKE Insulated Swivels are designed with ball bearing which performs to fully swivel under Load.
● Acquired certificate approved by Deutsche Gesetzliche Unfallversicherung (DGUV)

YOKE's innovative, fine design with " Coupling Pin " system hook is able
to solve any of your problems in Chain, Wire Rope and Synthetic Slings.
The hook :
1. Create safer lifting with the use of " Self Locking " system.
2. Assembly is fast and easy with only a hammer required.
3. Acquired certificate approved by BG German company.
4. Patent :Taiwan, China,

Insulated Blank Swivels.
with Ball Bearing
Individually tested to resist 1000 Volts insulated with Test Certificate.
Design for protection
