IGBT 逆變等離子弧切割機

產品描述

Outline and function

Function: plasma arc cutting

Application Scope: cutting stainless steel, alloy steel, foundry iron, carbon steel, Copper, Aluminum, Manganese, Titanium, clad plate and so on.

Performance Feature

Digit display can preset cutting parameters accurately and the current is stepless.

With advanced soft switch high frequency inverter technology and super-power IGBT module switch device circuit,the machine is reliable.

100% arc-striking success rate, stable and stiff arc, smooth incision, excellent technological performance.

The machine has all signal output required by CNC control and is suitable for automatic cutting.

With high duty cycle,this machine can keep working a long time under maximum current.

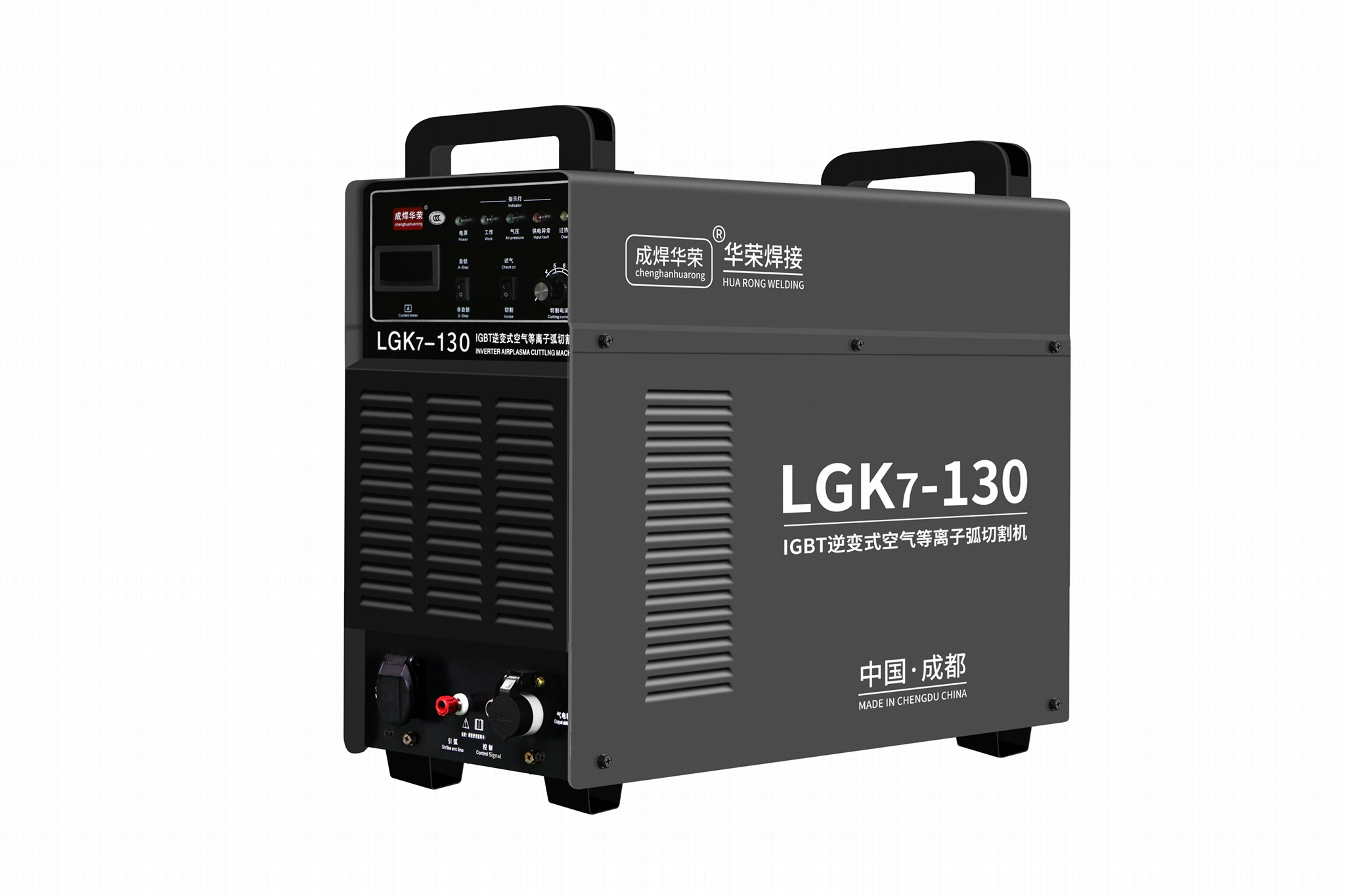

LGK7-130
Name		Unit	Parameter
Voltage/frequency		V/Hz	3～380V±15% 50/60Hz
Rated input capacity		KVA	24
Rated input current		A	36
Power factor		-	0.86
Rated output current		A	130
Rated output voltage		V	132
Rated duty cycle		%	100/40℃
Output no-load voltage		V	310
Output current range		A	30～130
Quality cutting thickness (steel )		mm	25
Max cutting thickness (steel)		mm	45
Plasma gas usage		-	Compressed air
Working gas pressure scope		MPa	0.45-0.55
Efficiency		%	90
Insulation class		-	F
Shell protection degree		-	IP21S
Torch cooling		-	Air-cooled
Arc-striking mode		-	Non-contact arc-striking
Dimension(L×W×H)		mm	670×325×595
Net weight		Kg	55
Low-carbon steel	Quality cutting	mm	25
	Cut-off ability	mm	45
	Max perforation	mm	22
Stainless steel	Cut-off ability	mm	32
Stainless steel	Quality puncture	mm	20
Aluminum	Cut-off ability	mm	32
Aluminum	Quality puncture	mm	20

付款方式︰	TT
