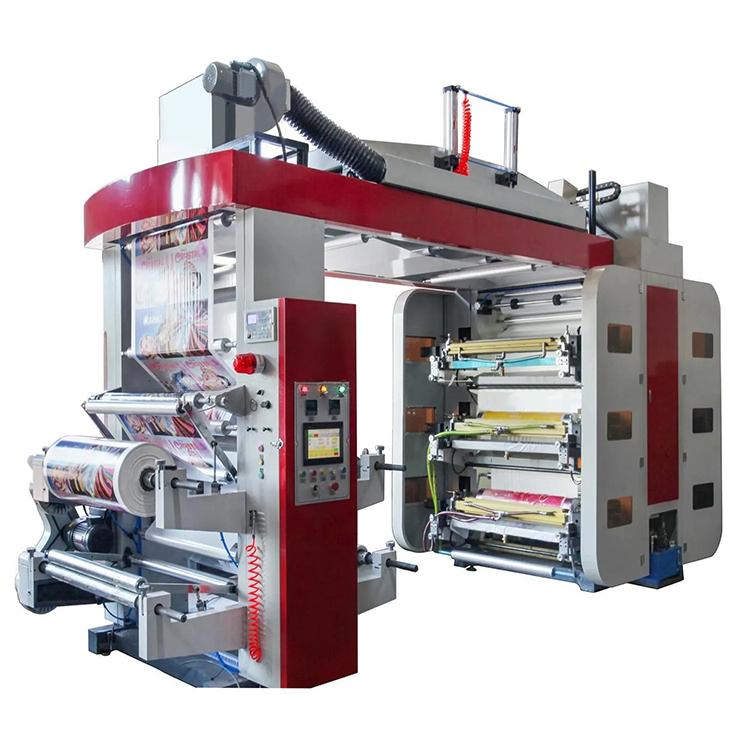

NXT Series High Speed- 4 colour Flexographic Printing Machine

Feature：

1. The frame adopts 75MM thick wall, full casting flat plate, increase the scale and so on to enhance the stability.

2. The printing roller is made of thickened steel bars, with 10 silk thick hard chrome protective layer.

3. The aluminum alloy guide wheel, with hard oxidation, dynamic balance, static balance treatment.

4. High-precision wider synchronous belt drive, low noise while high speed running, low vibration, makes machine more stable.

5.The plate roller gear, adopts special helical gear transmission. Each tooth 5MM, more stable printing effect, and more accurate printing length .



Main points:

-Adopts the synchronous belt drive instead of Gear drive;

-Machine running more quite, higher printing precision, good quality;

-Machine more stability;

-High Mechanical speed: 135m/min

-High printing speed: 30-120m/min ( match chamber doctor blade)

-Single unwind & Single rewind



高速6色柔版印刷機

特點：

1.機身採用75MM加厚牆板，全鑄件平板地盤，加大秤杆等增強機身穩定性。

2.承印輥採用加大加厚鋼棍，並電鍍10絲厚的硬鉻保護層拋光處理。

3.鋁合金導輪進行硬質氧化、動平衡、靜平衡處理。

4.高精度加寬同步帶傳動，機器高速運轉時低噪音，低震動讓機器更穩定。

5.版輥齒輪採用特製斜齒輪傳動，每個齒印刷長度5MM，印刷效果更穩定，印刷長度更精確。





Technical Parameter : 主要參數

型號	Model	NXT6-600	NXT6-800	NXT6-1000	NXT6-1200	NXT6-1400	NXT6-1600
最大印料寬度	Max. Material width	650mm	850mm	1050mm	1250mm	1450mm	1650mm
最大印刷寬度	Max. Printing width	560mm	760mm	960mm	1160mm	1360mm	1560mm
印刷色數	Printing color	6+0, 5+1, 4+2, 3+3
印刷長度	Printing length	11.8''-35.4''（300-900mm）/11.8''-47.2''（300-1200mm）
起落版方式	Printing cylinder way	Hydraulic control up and down液壓
驅動方式	Drive type	Synchronous belt drive 同步帶傳動
機械速度	Mechanical speed	135m/min
印刷速度	Printing speed	10-90m/min
網紋輥	Anilox roller	(1) Metal anilox roller 6pcs:100-300LPI 金屬網紋輥6條/ (2) Ceramic anilox roller 6pcs: Shanghai murata brand 200-800LPI 陶瓷網紋輥 6條 Open type doctor blade 6pcs 開放式刮刀6把
自動張力控制	Tension system	Automatic tension controller with magnetic powder brake and clutch
糾邊	EPC	Web guide 1pcs
套准精度	Register precision	Longitudinal：±0.2mm  crosswise：±0.2mm； 縱向：±0.2mm 橫向：±0.2mm
套色方式	Color register	By manual手動
收放卷直徑	Unwind/rewind dia.	Φ1000mm/Φ1200mm/Φ1500mm
裝夾料	Material holder	Air shaft 3’’, 2pcs 氣漲軸
烘乾方式	Dry system	Electric heating電加熱
總功率	Machine power	30kw	32kw	34kw	38kw	40kw	45kw
機械尺寸	Machine size （L x W x H）	5.6m×2.0m×3.4m	5.6m×2.2m×3.4m	5.6m×2.4m×3.4m	5.6m×2.6m×3.4m	5.6m×2.8m×3.4m	5.6m×3.0m×3.4m
機器重量	Machine weight	5200Kg	5400 Kg	5600 Kg	5800 Kg	6000 Kg	6200 Kg

Machine Also can made as client requirement. 我們也可以根據客戶的要求定做機器。



Optional parts: need extra cost

1. Various size of printing cylinder

2. chamber doctor blade

3. PLC touch screen

4. Image inspect system

5. Double unwinder /rewinder system

6. Automatic loading

7. Automatic unloading

8. crane

9. plate mounting machine

10. ultrasonic anilox roller cleaning machine



另外購買配件：版輥，封閉刮刀，PLC，靜止畫面，雙收雙放，自動上料，自動卸料, 吊車，貼版機，超聲波清洗機
