自貢自泵水泵鑄鐵ZIS或ZIR型臥式單級單吸離心泵清水泵循環泵

在線服務：WEIXIN：180（8165）9672 或zipo2019; Q: 219(141)7589

咨詢或購買前，請用戶告知準確的流量、揚程、管損、介質比重、電機功率等參數。

ZIS、ZIR系列水泵為單級單吸離心泵，水平軸向吸入，產品適用於輸送清水或性質類似清水的其它介質。是工廠、礦山、農用排灌工地抽水和城市給排水的常用產品。

ZIS系列產品所輸送的介質溫度不高于80℃，泵的吸入壓力不得大於0.3MPa（即3kg/cm3）；

ZIR系列產品輸送介質溫度低於150℃，泵的吸入壓力低於0.8MPa(即8kg/cm3)。

 ZIS、ZIR系列泵性能範圍（按設計點計）：轉速 1450r/min, 進口直徑  50-200毫米, 揚  程  5~12.5m, 功 率 0.55~110KW

常見的ZIS型清水泵的型號有：

ZIS50-32-125, ZIS50-32-160, ZIS50-32-200, ZIS50-32-250, ZIS65-50-125, ZIS65-50-160, ZIS65-40-200, ZIS65-40-250, ZIS65-40-315, ZIS80-65-125, ZIS80-65-160, ZIS80-50-200, ZIS80-50-250, ZIS80-50-315, ZIS100-80-125, ZIS100-80-160, ZIS100-65-200, ZIS100-65-250, ZIS100-65-315, ZIS125-100-200, ZIS125-100-250,ZIS125-100-315,ZIS125-100-400,ZIS150-125-250, ZIS150-125-315, ZIS150-125-400, ZIS200-200-200, ZIS200-150-250,  ZIS200-150-315, ZIS200-150-400

供貨單位：自貢自泵球閥水泵有限公司ZIPO VALVE & PUMP CO., LTD

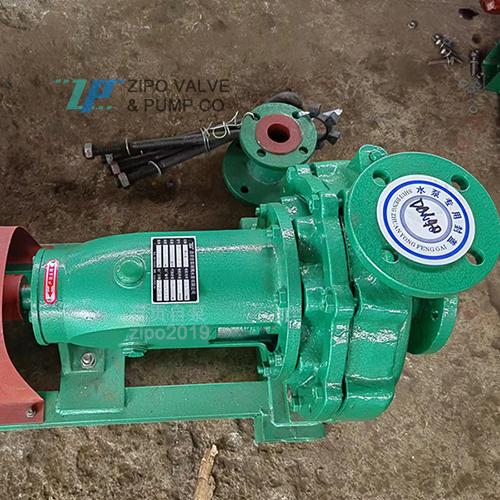

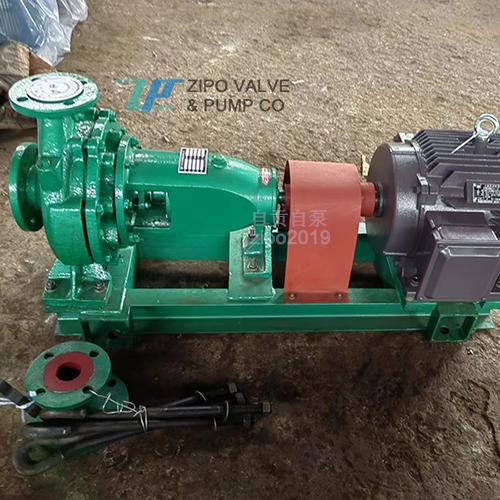

ZIPO ZIS or ZIR horizontal single stage single suction centrifugal pump clean water pump circulating pump.

Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672

Please inform us of the accurate flow, head, pipe loss, medium specific gravity, motor power and other parameters, before consulting or purchasing the product. Thanks!

ZIS and ZIR series pumps are single-stage single suction centrifugal pumps, with horizontal axial suction. All technical indicators meet the national standards. The product has high efficiency, reasonable structure and reliable use. The product is suitable for conveying clear water or other media with similar properties. It is an ideal product for pumping water and urban water supply and drainage in factories, mines, agricultural drainage and irrigation sites.

The medium temperature conveyed by ZIS series products shall not be higher than 80 ℃, and the suction pressure of the pump shall not be higher than 0.3MPa (3kg / cm3);

The transmission medium temperature of ZIR series products is lower than 150 ℃, and the suction pressure of the pump is lower than 0.8MPa (8kg / cm3).

Performance range of ZIS and ZIR series pumps (based on design points): rotating speed 1450r / min, inlet diameter 50-200mm, lift 5-12.5m, power 0.55-110kw

The common models of ZIS clean water pump are:

ZIS50-32-125, ZIS50-32-160, ZIS50-32-200, ZIS50-32-250, ZIS65-50-125, ZIS65-50-160, ZIS65-40-200, ZIS65-40-250, ZIS65-40-315, ZIS80-65-125, ZIS80-65-160, ZIS80-50-200, ZIS80-50-250, ZIS80-50-315, ZIS100-80-125, ZIS100-80-160, ZIS100-65-200, ZIS100-65-250, ZIS100-65-315, ZIS125-100-200, ZIS125-100-250,ZIS125-100-315,ZIS125-100-400,ZIS150-125-250, ZIS150-125-315, ZIS150-125-400, ZIS200-200-200, ZIS200-150-250,  ZIS200-150-315, ZIS200-150-400

Manufacturer: ZIPO VALVE & PUMP CO., LTD
