3V TECHNOLOGY is a global-service provider with 18 years experiences in the field of optical fiber polishing and coating.we support customized order based on clients' special requirements.like angle-polished fiber with specific angle;lensed fiber;metallized fiber;pinnacle lesned fiber;conical lensed fiber;biconical lensed fiber;rectangular lensed fiber;wedge lensed fiber;cleaved fiber,AR coating/Hi-refection coating at specifci wavelength.

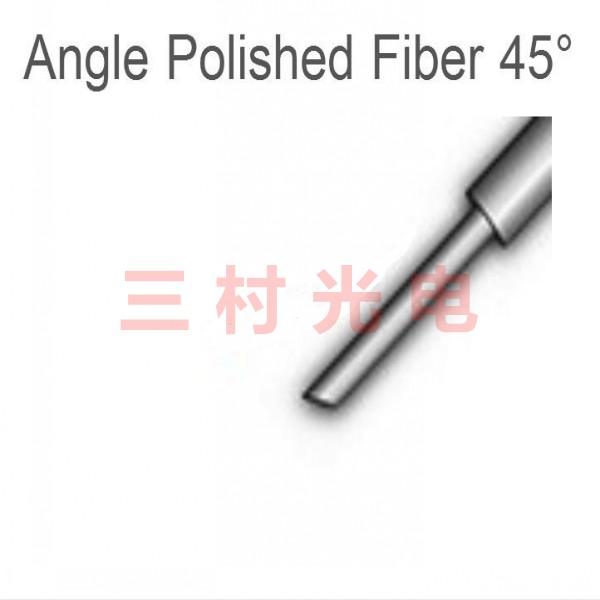

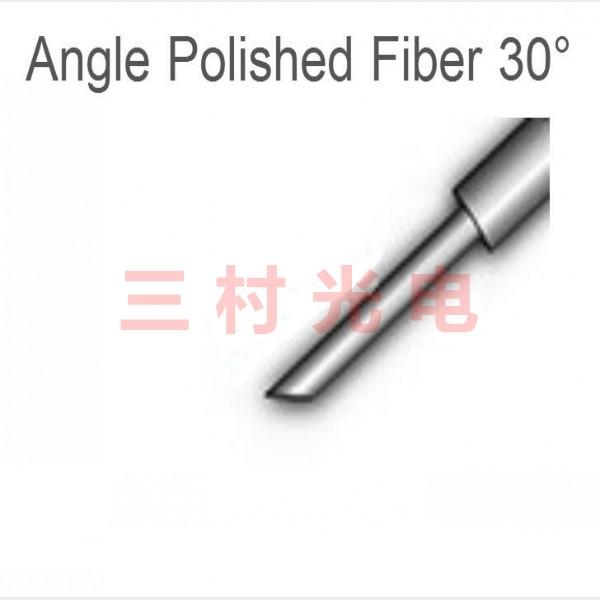

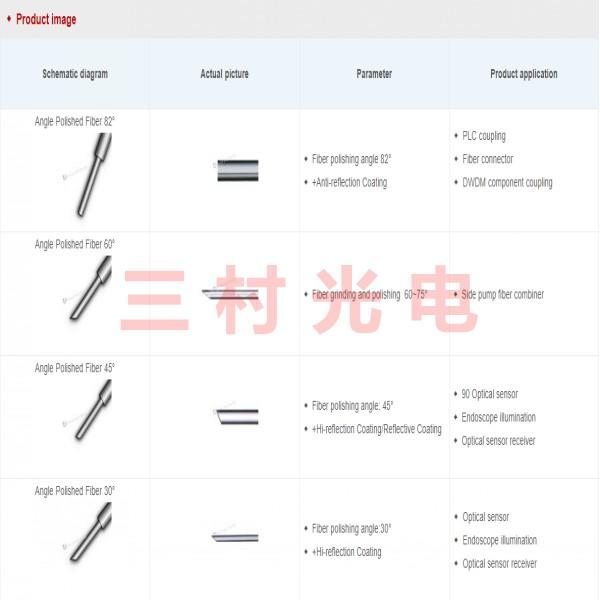

Ⅰ. Angle-polished Lensed Fiber:

Angle-polished lensed fiber is produced by precision polishing techniques to abtain different angles tip,which mainly to reduce the light return or change the optical transmitted direction.

Product Application:

-Mainly used for laser coupling.
-PLC device coupling.
-Side pupm optical fiber combiner.
-Optical sensor receiver
-Endoscope illumination.

Product Features:

3V TECHNOLOGY has unique fiber polishing techniques to produce angle tip as high as to 75 degree,and with different coating design,we can satisfy most of customer requirement.
±0.2 degree polishing angle precision at best.
Super clean tip finishing surface.
AR/Hi-reflection coating.

Fiber Type	Single-mode,multimode,large-core fiber or customer specified
Fiber Model	SMF-28,Hi1060,Nufern 105/125 MM fiber,Customize

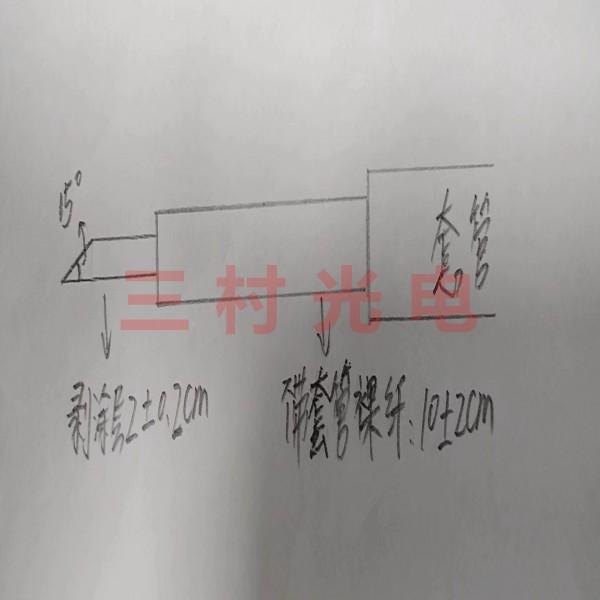

Fiber Tip Stripped Length	Customize size±0.5mm,Customize
Polishing facet to fiber axis	15-90 degree as customer's requested
Length of the Fiber	50-200cm,Customize.
Coating Parameter	Anti-reflection coating,R＜0.2%@Center wavelength±50nm.



Ⅱ​.Lensed fiber:

Lensed fiber is produced using different fine lens tip shaping techniques.

The surface is treated by planar or spherical finishing,optionally the tip was coated with thin film layer.

Product application:
-DFB laser diode fiber tail coupling.
-Fiber to waveguide coupling.
-Medical and biological illumination applications.



Bare Fiber Coating

Bare Fiber Coating means laying optical thin film on the bare fiber end face to increase light transmission or reflection.

3V TECHNOLOGY succeed in polishing bare fiber without any epoxy and coating optical precision thin film to the fiber tip,which improve the product quality significantly.

Product Application:

-Fiber laser pump diode coupling
-High power laser processing flexible transmission
-Medical laser equipment coupling transmission
-Fiber optic Sensor(Connecting Photoelectric detector)

Product Features:

-The fiber tip is directly polished without any epoxy in the process,which can aviod laser absorption caused by epoxy residue and reduce the fiber burn rate efficiently.
-High quality fiber tip polishing surface,without scratches and particles on the fiber core.-Coat only on the bare fiber tip(without ferrule&epoxy),which can eliminate film cracking caused by inconsistent thermal expansion coefficients of different substrates under the coating layer.
-Avoid the impact of the ferrule and epoxy on the laser chip at a close distance,effictively reducing COD and chip Contamination.
-Low heat absorption and high laser damage threshold of coating layer,Optical damage threshold(＞200MW/cm2,test by quantel USA)

Fiber Type-01	Nufern MM-S105/125-15A,Core/Clad:105/125um,0.15NA;Customer Specified
Fiber tip Stripped length	6+/-mm;Customize
Length of the fiber	200cm-210cm;Customize
Coating Parameter	Dichroic/Anti Reflection Coating,T＞99%@900-980nm,R＞99.5%@1050-1100nm

Fiber Type-02	Nufern MM-S200/220-22A,Core/Clad:200/220um,0.22NA;Customer Specified
Fiber tip Stripped length	6+/-mm;Customize
Length of the fiber	200cm-210cm;Customize
Coating Parameter	Anti Reflection Coating,R＜0.5%@780-1000nm;Customize

Fiber Type-03	Nufern MM-S105/125-22A,Core/Clad:105/125um,0.22NA;Customer Specified
Fiber tip Stripped length	6+/-mm;Customize
Length of the fiber	200cm-210cm;Customize
Coating Parameter	Anti Reflection Coating,R＜0.5%@780-1000nm;Customize



Fiber Pigtail Coating

Protruding fiber pigtail is a kind of assembly which install a ceramic ferrule to the end of the coated bare fiber and keep the fiber’s endface some distance from the ferrule’s endface.Different from the traditional fiber and ferrule flat assembly way.Protruding fiber pigtail can eliminate film cracking caused by inconsistent thermal expansion coefficients of different substrates(fiber,epoxy,ferrule) under the coating layer and has obvious advantage in fiber coupled high power laser diode.

Product Application:

-Fiber laser pump diode coupling.
-High power laser processing flexible transmission.
-Medical laser equipment coupling transmission .
-High power laser test and measurement.
-Fiber optic Sensor(Connecting Photoelectric detector).

Product Features:

-The fiber tip is directly polished without any epoxy in the process,which can aviod laser absorption caused by epoxy residue and reduce the fiber burn rate efficiently.
-High quality fiber tip polishing surface,without scratches and particles on the fiber core.
-Coat only on the bare fiber tip(without ferrule&epoxy),which can eliminate film cracking caused by inconsistent thermal expansion coefficients of different substrates under the coating layer.
-Avoid the impact of the ferrule and epoxy on the laser chip at a close distance,effictively reducing COD and chip Contamination.
-Low heat absorption and high laser damage threshold of coating layer,Optical damage threshold(＞200MW/cm2,test by quantel USA)

Fiber Type-01	MM-S135/155-22A,Core/Clad:135/155um,022NA;Customer Specified
Length of the fiber	200+/-10mm;Customize
Coating Parameter	Anti Reflection Coating,R＜0.5%@780-1000nm;Customize
Assembly Method	Install SC  ceramic ferrule to the end of the coated bare fiber,   and keep the fiber tip protruding from the ferrule tip.
Protruding tip length	1+/-0.2mm;Customize
Fiber ferrule type	Standard SC or LC ceramic ferrule; or Customized ferrule

Fiber Type-02	MM-S105/125-15A,Core/Clad:105/125um,015NA;Customer Specified
Length of the fiber	200+/-10mm;Customize
Coating Parameter	Anti Reflection Coating,R＜0.5%@780-1000nm;Customize
Assembly Method	Install SC  ceramic ferrule to the end of the coated bare fiber,   and keep the fiber tip protruding from the ferrule tip.
Protruding tip length	1+/-0.2mm;Customize
Fiber ferrule type	Standard SC or LC ceramic ferrule; or Customized ferrule

Fiber Type-03	MM-S105/125-22A,Core/Clad:105/125um,022NA;Customer Specified
Length of the fiber	200+/-10mm;Customize
Coating Parameter	Anti Reflection Coating,R＜0.5%@780-1000nm;Customize
Assembly Method	Install SC  ceramic ferrule to the end of the coated bare fiber,   and keep the fiber tip protruding from the ferrule tip.
Protruding tip length	1+/-0.2mm;Customize
Fiber ferrule type	Standard SC or LC ceramic ferrule; or Customized ferrule

Fiber Type-04	MM-S200/220-22A,Core/Clad:200/220um,022NA;Customer Specified
Length of the fiber	200+/-10mm;Customize
Coating Parameter	Anti Reflection Coating,R＜0.5%@780-1000nm;Customize
Assembly Method	Install SC  ceramic ferrule to the end of the coated bare fiber,   and keep the fiber tip protruding from the ferrule tip.
Protruding tip length	1+/-0.2mm;Customize
Fiber ferrule type	Standard SC or LC ceramic ferrule; or Customized ferrule



Fiber Patchcord Coating

D80 Optic Fiber Patchcord utilize high precision D80 connector or air-gap-ferrule connector.It is equipped with high quality tip polishing surface fiber.The Patchcord mainly used for energy transmission of semiconductor laser modules and medium-low power solid state lasers.The internal connector of the fiber patch cord apply high-quality environment epoxy free technology,which improve the heat dissipation effect and service life of the fiber.The D80 Patchcord can meet the demand for laser welding,cutting and other high power transmission.3V TECHNOLOGY also offer custom patch cable services and accpet fiber cable(sunc as SMA905 jumper,FC/PC patch cord) coating services.

Product Application:

-Pump laser fiber tail and fiber patch cord.
-High power laser processing energy transmission.
-Medical laser equipment.
-Industrial laser processing

Product Features:

-3V-TECHNOLOGY’s unique fiber polishing and assembling process.
-The fiber patch cord is made if imported high quality large-core optical fibers.
-AR coated fiber end face,demage threshold up to 200mW/CM2.
-Stainless Steel Protective Tubing Design,resists crusing,abrasion,cutting,and pulling.
-The SMA ferrules are made of stainless steel or cupronickel and used as a heat sink,evacuating the heat quickly away from the fiber.
-Utilize air-cap-ferrule technology that eliminates energy-absorbing materials near the fiber end face sunc as epoxies,connector material,and coating,making them ideal for high-power applications.

Fiber Core	200/300/400/600/800/1000um;Customer Specified.
Fiber Length	200+/-5mm;Customer Specified.
Assembly Method	D80 flat or air-gap-ferrule
Armored Diameter	φ6 Stainless Steel Protective Tubing
Ferrule Material	Ceramic/stainless steel/cupronickel
Coating Parameter	AR Coating,R＜0.5@%780-1000nm;Customer Specified. D80,FC/PC accept fiber cable(such as SMA905 jumper,FC/PC patch cord) coating services.



SMA905 Fiber Patchcord Coating

SMA905 Fiber Patchcord utilize high precision SMA905 connector or air-gap-ferrule connector.It is equipped with high quality tip polishing surface fiber.The Patchcord mainly used for energy transmission of semiconductor laser modules and medium-low power solid state lasers.The internal connector of the fiber patch cord apply high-quality environment epoxy free technology,which improve the heat dissipation effect and service life of the fiber.The SMA905 Patchcord can meet the demand for laser welding,cutting and other high power transmission.3V TECHNOLOGY also offer custom patch cable services and accpet fiber cable(sunc as D80 jumper,FC/PC patch cord) coating services.

Product Application:

-Pump laser fiber tail and fiber patch cord.
-High power laser processing energy transmission.
-Medical laser equipment.
-Industrial laser processing

Product Features:

-3V-TECHNOLOGY’s unique fiber polishing and assembling process.
-The fiber patch cord is made if imported high quality large-core optical fibers.
-AR coated fiber end face,demage threshold up to 200mW/CM2.
-Stainless Steel Protective Tubing Design,resists crusing,abrasion,cutting,and pulling.
-The SMA ferrules are made of stainless steel or cupronickel and used as a heat sink,evacuating the heat quickly away from the fiber.
-Utilize air-cap-ferrule technology that eliminates energy-absorbing materials near the fiber end face sunc as epoxies,connector material,and coating,making them ideal for high-power applications.

Fiber Core	200/300/400/600/800/1000um;Customer Specified.
Fiber Length	200+/-5mm;Customer Specified.
Assembly Method	SMA905 flat or air-gap-ferrule
Armored Diameter	φ6 Stainless Steel Protective Tubing
Ferrule Material	Ceramic/stainless steel/cupronickel
Coating Parameter	AR Coating,R＜0.5@%780-1000nm;Customer Specified. SMA905,FC/PC accept fiber cable(such as D80 jumper,FC/PC patch cord) coating services.
