型號: | 定制 |
---|---|
品牌: | 3V-TECH |
原產地: | 中國 |
類別: | 電子、電力 / 通信和廣播電視設備 / 其他通訊產品 |
標籤︰ | DR4模塊 , FA-MPO組件 , MT組件 |
單價: |
¥1
/ 件
|
最少訂量: | 10 件 |
With more than 18 years experiences in optical communiation field,3V TECHNOLOGY is a world-service expert for fiber optic solutions.Our products are high-quality & eco-friendly with the best quality materials and the most perfect process manufacturing, all will compliant with Rohs&Reach2.0,andIEC standards.
3V TECHNOLOGY specializes in high-level fiber optic components,LC attenuation loopback;MPO attenuation loopback;MPO patch cord;MTP patch cable and other MPO/MTP sub-assembly.special fiber array,fiber pigtail and collimtors; Relying on our these years experience accumulation,we also design and develop according to clients' special requirements.
MPO series pre termination refers to the end of the fiber sector MPO single head 8/12/24 cores connector, and the other end is assembled with LC/SC/FC connector specified. It is mainly used in the pre terminal module box,connecting terminal jumper,pre trunk optical cable and equipment, to achieve modular, plug and play, compared with the traditional welding, which greatly improves the convenience and efficiency of work
MT-MT connector
Features:
8-12 core fiber available
small in size ,easy to management
loss mode: Low loss;Standard Loss
Different in fiber connection according to QSFP requirement
Manufacturer of MT:US Conec or SENKO Optional
Applications:
QSFP module
Data Center
Specifications:
Fiber type |
single mode |
multimode |
|
Standard insertion loss |
typical(dB) |
0.35 |
0.35 |
Maximum(dB) |
0.75 |
0.60 |
|
Low insertion loss |
typical(dB) |
0.20 |
0.20 |
Maximum(dB) |
0.35 |
0.35 |
|
Return loss (dB) |
≥60(APC) |
≥20(PC) |
|
≥50(PC) |
|||
Tensile Strength (kgf ) |
10 |
||
Durability (dB) |
≤0.2 500 matings |
||
working temperature (℃) |
-40 ~+85 |
||
Test wavelength (nm) |
1310 |
850 |

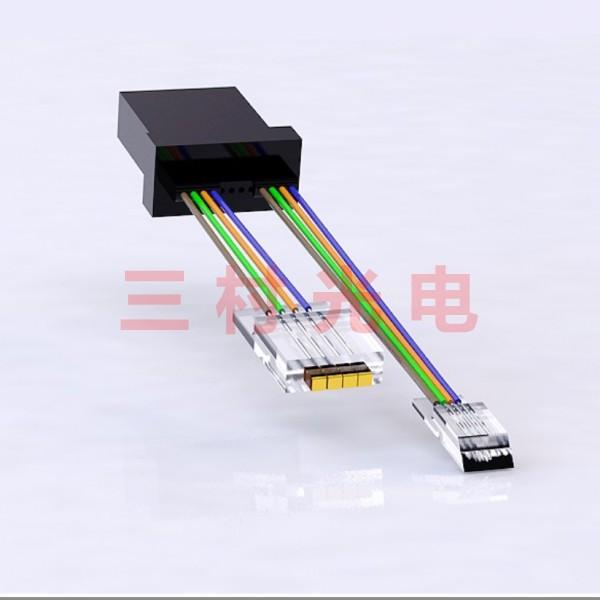

MT-FA connector
Features:
8-12 core fiber available
small in size ,easy to management
loss mode: Low loss;Standard Loss
Different in fiber connection according to QSFP requirement
Manufacturer of MT:US Conec or SENKO Optional
Applications:
QSFT module
Data Center
Specifications:
Fiber type |
single mode |
multimode |
|
Standard insertion loss |
typical(dB) |
0.35 |
0.35 |
Maximum(dB) |
0.75 |
0.60 |
|
Low insertion loss |
typical(dB) |
0.20 |
0.20 |
Maximum(dB) |
0.35 |
0.35 |
|
Return loss (dB) |
≥60(APC) |
≥20(PC) |
|
≥50(PC) |
|||
Tensile Strength (kgf ) |
10 |
||
Durability (dB) |
≤0.2 500 matings |
||
working temperature (℃) |
-40 ~+85 |
||
Test wavelength (nm) |
1310 |
850
|
付款方式︰ | TT |
---|---|
蘇州三村光電科技有限公司 | |
---|---|
國家/地區︰ | 江苏省苏州市 |
經營性質︰ | 生產商 |
聯繫電話︰ | 18913093537 |
聯繫人︰ | 孫向偉 (經理) |
最後上線︰ | 2024/12/23 |
