排塵風機，6-51風機結構，12#風機用途：適用於排送含有木質碎屑、纖維和塵土等的空氣混合物。
在一般情況下，6-51型離心通風機有№3.15、№4、№5、№6.3、№8、№10、№12共7個機號。其中任何一個機號的任何一種傳動，皆可作成“左”旋或“右”旋兩種型式。從電機一端正視葉輪，凡順時針旋轉者皆稱“右旋風機”，以“右”表示，反之皆稱“左旋風機”，以“左”表示。
風機的出風口位置以機殼的出風口角度表示，出風口調整範圍是0°～225°，間隔是45°；上述出風口角度是風機行業的習慣做法，如這些做法不能滿足您的具體使用環境和條件，我廠可以為您做成令您滿意的角度，出現這種情況時，本說明書後邊的安裝尺寸表可能會有所變動，望用戶注意。
風機的傳動方式為C式：
C一表示懸臂支承裝置，皮帶傳動，但是皮帶輪在軸承外側；
這些傳動方式一般均能滿足用戶的使用要求，當萬一不能滿足您的要求時，我廠有實力設計和生產使您滿意的風機。

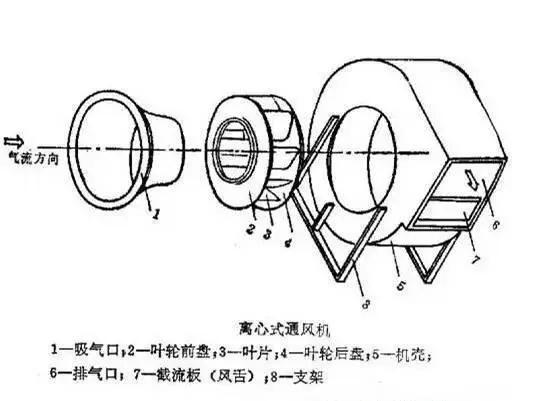

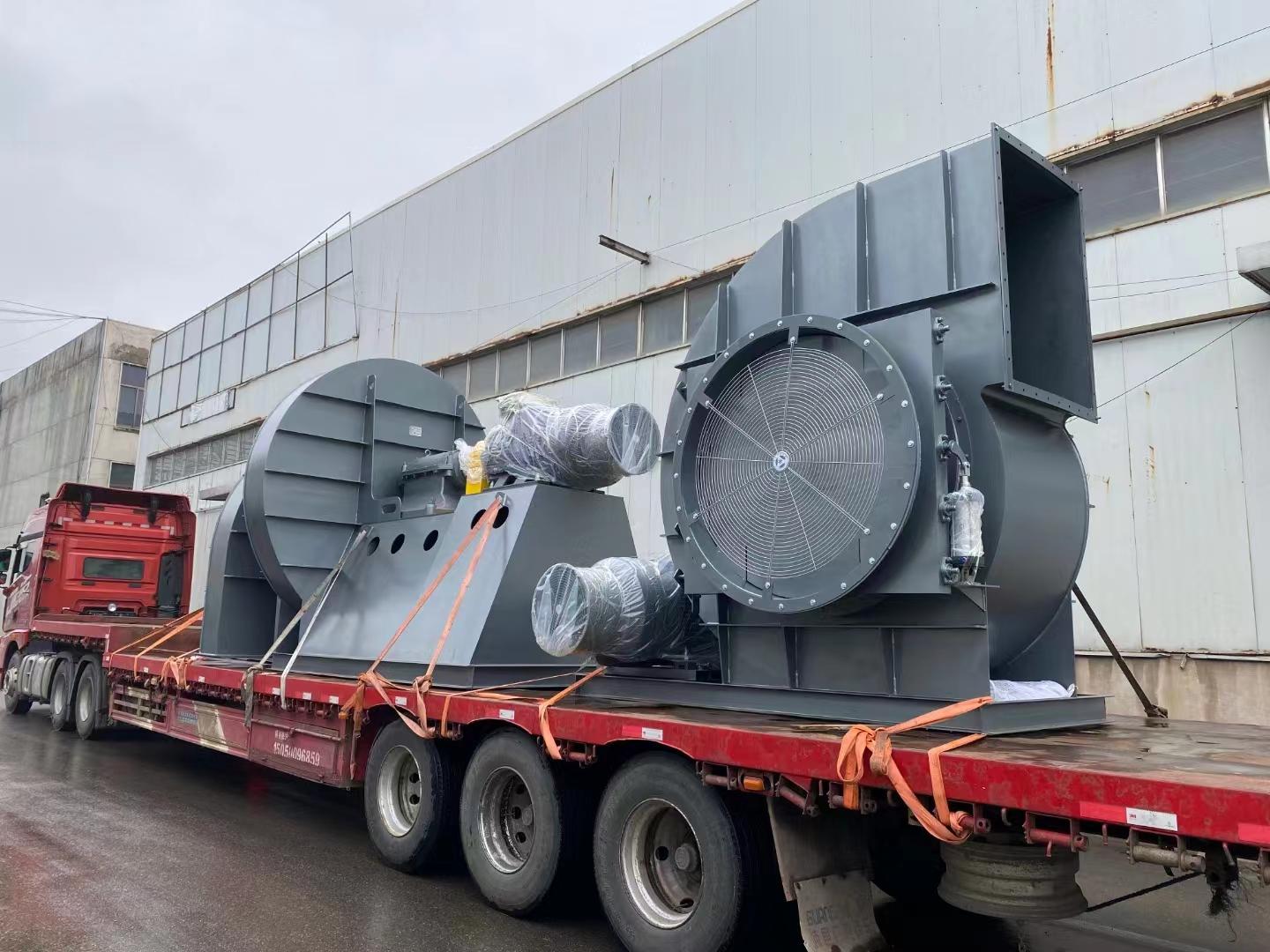

風機一般主要由葉輪、機殼、進風口和傳動部分組成。
葉 輪 一 它是風機的核心部件，它的材質和型線決定了一颱風機的風壓、風量。能耗、噪聲和壽命。本風機由十個后傾的圓弧型葉片、曲線型輪蓋和平板后盤組成，經動靜平衡校正和超速運轉實驗，運轉平穩可靠，空氣性能良好。
機 殼 一 機殼做成整體，不能拆開。具體材質根據風機的用途或普通鐵板焊成，或用不鏽鋼焊成，或用玻璃鋼加工而成，當然工藝、造價和工期也隨之不同。
進風口 一 進風口製成整體結構，它與軸向平行的截面為曲線形狀，便於氣體順利進入葉輪且損失較小，進風口通常用螺栓固定于風機一側。進風口與葉輪在徑向和軸向間隙太小了稍有不慎會造成摩擦，太大時會造成漏風，影響效率，請保証設計尺寸。
傳 動 一 傳動部分由主軸、軸承箱、滾動軸承、皮帶輪組成。
性能
風機的性能通常用流量、全壓、主軸轉速、軸功率、效率等參數表示，這些參數間
有一定的換算關係，其關係可用性能曲線，數學公式或表格等方式表示；
如果設 Q 一 流量 m3/h； H 一 全壓 Pa；
N 一 軸功率 kW； η一 全壓效率
ηm一 機械效率 ％； r 一 比重 kg/ m3；
n 一 主軸轉數 r／min； t 一 溫度 ℃
式中：
帶註腳“2”的表示已知性能參數，帶註腳“1”的表示未知性能參數。
那麼：
風機性能一般均指標準狀況下的性能，當使用狀況與標準狀況不符時須把此時的性能換算
成標準狀況下的性能，然後再查性能表選擇機號和轉速。所謂註標准狀況是指：
大氣壓力P＝101325 Pa 自由落體加速度g＝9．8 m／sec2
空氣密度 ρ＝0.1223 kg·se c2／m4 大氣溫度 t＝20℃
所需功率按下式求出：N＝10-3η-1·K ·Q·H 相對濕度＆＝50％
K值的選取
電機功率kW K值
0.5以下
>0.5～1
>1～2
>2～5
>5 1.5
1.4
1.3
1.3
1.15
安裝與使用
在安裝前首先應準備好材料和工具，對風機各部機件進行全面核對，對葉輪、機殼、主軸和軸承等機件更應特別細緻檢查，如發現損傷，應予修復，然後用煤油清洗軸承箱內部。
在進行固定操作過程中必須注意以下幾點：
1.在一些接合面上，為了防止生鏽，減少拆卸困難起見，應塗上一層潤滑油或機械油。
2．在上接合面的螺栓時，如有定位銷釘應先上好銷釘，再擰緊螺栓。
3．檢查機殼內及其它殼體內部，不應有掉入和遺留的工具或雜物。
安裝時的具體要求是：
1． 安裝時，嚴禁儿童、老人、殘疾人等行動不便者或無關人員在場圍觀。
2．按先安裝風機，后接通電源的次序進行。
3．安裝風機時，輸氣管道的重量不應加在機殼上。
4．按圖紙校正進風口與葉輪之間間隙尺寸，而且保持軸的水平度。
5．安裝進風口管道時，可以直接利用進風口本身的螺栓進行連接，此時進風口固定是靠三個沉頭螺釘。
6．風機安裝完后，用手或槓桿撥動轉子，檢查是否有過緊或刮蹭等現象。在無過緊或刮蹭的情況下方可進行試運轉。
7．電動機安裝后，安裝皮帶輪或聯軸器防護罩，如進氣口處不接進氣管道時，也需加防護網或其它安全裝置（用戶自備）。
其它部件，按圖紙對應位置進行安裝。
由於風機的流量Q、全壓H、主軸轉數n、軸功率N四者有固定關係：
因此在電動機容量不改變時，主軸轉速不宜更改，若主軸轉速增大，電動機則有因過載被燒之危險。
通風機所採用的電機功率，系指在特定的工況下，軸功率加上機械損失與應有的儲備量而言，並非出風日全開時所需功率，如風機的出口或入口不接管路或未加外界任何阻力而進行空轉，則電機亦有被燒之危險。為安全起見，應在風機的出口或入口管路中加裝閥門，起動電機時將其關閉，運轉后將閥門慢慢開啟，直至規定工況，並注意電流是否超標。
維 護
l、風機不許帶病運行。
2、風機的維護和修理必須在停機斷電、風機確實停穩后進行。
3、維護人員不許隨意更換，應保持相對的穩定，最好專人使用，專人維護。
4、在修理風機時電機開關須有專人監護或上鎖。
5、定期清除風機及管道內部的灰塵、污垢及水等雜質，並防止鏽蝕。
6、對溫度計及油標的靈敏性應定期檢查。
7、除每次拆修后更換潤滑油外，還應定期更換潤滑油。
故障原因一覽表
故障 原因
軸承箱體
振動劇烈 1．風機軸與電機軸不同心，聯軸器歪斜。
2．機殼或進風口與葉輪摩擦。
3．基礎的剛度不夠或不牢固。
4．葉輪鉚釘鬆動或輪盤變形。
5．葉輪軸盤與軸鬆動，聯軸器螺栓活動。
6．機殼與支架、軸承箱與支架、軸承箱蓋與座等聯按螺栓鬆動。
7．風機進、出氣管道的安裝不良，產生振動。
8．轉子失衡。
軸承溫
升過高 1．軸承箱振動劇烈。
2．潤滑脂質量不良、變質或填充過多和含有灰塵、粘砂、污垢等雜質。
3．軸承箱蓋、座聯接螺栓之緊力過大或過小。
4．軸與滾動軸承安裝歪斜，前後兩軸承不同心。
5．滾動軸承損坏。
電動機電
流過大和
溫升過高 1．開車時進氣管道內閘門或節流閥未關嚴。
2．流量超過規定值或風管漏氣。
3．風機輸送之氣體密度過大或含粘性物質。
4．電動機輸入電壓過低或電源單相斷電。
5．聯軸器聯接不正，皮圈過緊或間隙不勻。
6．受軸承箱振動劇烈的影響。
7．受並聯風機工作情況惡化或發生故障的影響。
皮帶滑下 兩皮帶輪子位置彼此不在一中心線上，使皮帶從小皮帶輪上滑下。
皮帶跳動 兩皮帶輪距離太近或皮帶過長
性能與選用件表（見下）
外型及安裝尺寸圖（見下）
Centrifugal Fan
Type C6-51
Operation Instruction
LINYI BLOWER WORKS
表 頭 中 的 中 英 文 對 照
Performance and Optional Part Table of Centrifugal Fan………離心風機性能與選用件表
Speed……………………………………………………………轉速
Driving Mode……………………………………………………傳動方式
No.………………………………………………………………序號
Flow………………………………………………………………流量
Total Pressure……………………………………………………全壓
Inner Effic..………………………………………………………內效率
Inner Power………………………………………………………內功率
Req. Power………………………………………………………所需功率
Motor……………………………………………………………電動機
Type………………………、……………………………………型號
Power……………………………………………………………功率
Triangle Belt………………………………………………………三角帶
Anchor Bolt………………………………………………………地腳螺栓
Nut.………………………………………………………………螺母
Washer.…………………………………………………………墊圈
I.C.………………………………………………………………內周長
Shaft Pulley………………………………………………………主軸皮帶輪
Code………………………………………………………………代號
Size………………………………………………………………規格
Motor Pulley………………………………………………………電機皮帶輪
Motor Rail…………………………………………………………電機導軌
（Set）………………………………………………………（套）
Installation and Overall dimension of Centrifugal fan…………離心通風機安裝及外形尺寸
Machine No. …………………………………………………機號
Intake…………………………………………………………進風口
Discharge…………………………………………………… 出風口
Connecting Bolt………………………………………………連接螺栓
Size……………………………………………………………規格
Quant. ………………………………………………………數量
Bolt Hole………………………………………………………螺栓孔
Dia. …………………………………………………………直徑
Distance………………………………………………………間距
Installation and Overall dimension……………………………安裝及外形尺寸
Impeller Weight………………………………………………葉輪重量
Fan Weight（Motor Excl）…………………………………風機重量（不包括電機）
Motor Weight…………………………………………………電動機重量
Installation……………………………………………………安裝
Right，……………………………………………………………右
Purpose
Type 6-51 are mainly used for esporting air mixture with small wood、fiber and dust.
Type
In normal condition, type -51centrifugal fan has 7 different sizes, they are №3.15、№4、№5、№6.3、№8、№10、№12.
One of them can be made of two types rotation i.e. right and left, viewing from one end of the motor, it is called as clockwise fan if the impeller rotates clockwise, and symbolized with “right”, on the contrary, it is called as counter clockwise fan if the impeller rotates counter clockwise, and symbolized with “left”.
The outlet position of the fan can be expressed from the outlet angle of the casing, user can change the angle according to the requirement, without note when ordering.
The outlet is 0°～225°, the interval is 45°;
The mentioned outlet angles is the customary doing of the fan trade, if they can’t meet
your specific environment and condition, our factory can manufacture satisfactory
angles for you, if this situation occurs the installation dimension behind the manual
may be changed, users should take notice.
There are 1 driving modes: C:
C—Cantilever bearing unit, belt driving, but the pulley is outside the bearing;
Generally these driving modes can meet users operating requirement, if they can’t meet your requirement, our factory has ability to design and manufacture satisfactory fan for you.
Structure
The fan mainly consists of impeller, casing, inlet and driving unit, but No. 2.8～6A is mode A driving, and without driving unit.
Impeller—it is the key part of the fan, its material and contour can determine the wind pressure, flow rate, power consumption, noise and service life. The impeller consists of 10 arc blades, a curved front disc and flat rear disc, they are made up of steel plate, 16 Mn stainless steel or glass fiber reinforced plastics according to the various purpose and medium, the impeller shall be balanced statically and dynamically, over speed running test is carried out, and thus it has smooth running and the aerodynamic performance is good.
Casing—it shall be made in integral type, it can not be disintegrated.
Inlet—the inlet is manufactured as an integral type, the section which is parallel to the shaft is curved forms and gas is allowed into the impeller smoothly with a little loss, the inlet is generally fixed on the side of the fan with bolts. Radial and axial clearances between inlet and impeller are too small, friction can be caused between them, and when the clearances are too big, air leakage can be caused between them, please keep the design dimensions.
Driving unit—it consists of shaft, bearing box, rolling bearing, belt pulley .
Performance
The Performance of the fan is symbolized by flow, total pressure, speed, power, efficiency and Parameters etc.. there are certain conversional relations between these parameters, the relation can be shown by performance curve, mathematical formula and form mode etc;
Q—Flow rate m3/h; H—total pressure Pa;
N—Shaft power kW η—total pressure efficiency
ηm—mechanical efficiency % r—specific gravity kg/m3
n—speed r/min; t—temperature ℃
where:
with footnote 2 symbolizes the known parameter,
with footnote 1 symbolizes the unknown parameter.
then:
The performance of the fan normally indicates the performance under the standard state. When the operating condition is inconsistent with standard state, at this moment the Performance must be converted into the performance under the standard state. The so-called standard slate indicates: atmospheric pressure P=101325 Pa, acceleration of gravity g=9.8m/sec2, air density ρ=0.1223kg·sec2/m4, atmospheric temperature t=20℃, the required power N=10-3η-1·K·Q·H, the relative humidity &=50%
Selection of value k
motor power (kW) value k
below 0.5
>0.5～1
>1～2
>2～5
>5 1.5
1.4
1.3
1.3
1.15
Installation and Operation
First, prepare attachment and tools before installation, then, check every parts of the fan, impeller, casing , shaft and bearing etc. should be inspected carefully, if damages are found, repair should be carried out, and then clean inside of the bearing box with kerosene.
The following points must be noted during installation:
1. Lubricating oil or mechanical oil should be coated on the joint surface in order to prevent rust.
2. When the bolt is screwed in the joint surface, if there are setting dowels, doweling the joint surface first, and then tighten the bolt.
3. Pay attention to check the casing and any tools or goods should not be dropped and remained inside the casing.
Requirements of installation:
1. During installation, prohibit children, old people, disabled person and the persons who has difficulty getting about a bit on the installing site to surround and watch.
2. Install the fan first and then switch on power supply.
3. During installation, the weight of air duct should not added on the casing of the fan.
4. Correct the dimensions between the impeller and the inlet according to the drawing, keep the horizontality of the shaft.
5. When installing the inlet pipe, the bolt of inlet is directly used to connect pipe, at this time the inlet is fixed by three countersunk screws.
6. Turn the rotor with hand or lever after installation to check whether it is over tight or touched with stationary components.
7. After installing the motor, install the belt pulley or coupling guard, if the inlet is not connected to the inlet pipe, the protective net or other safety device is also added (provided by user himself). Other parts of the fan are fixed according to the drawing.
Because of the flow rate Q, total pressure H, the shaft speed n, and shaft power N having the specific relations:
Thus, without changing the motor capacity, the shaft speed can not change, otherwise, the motor may be damaged by overload.
The motor power used by fan indicates under the specific operating condition, shaft power plus mechanical loss and storing quantity, but not the required power when the outlet full open, if the outlet or inlet of fan without connecting pipe or without outside resistance, the motor can not be put into operation. For the safety, a valve should be installed in the inlet and outlet pipes of the fan, close the valve when motor start up, the valve is slowly open after running, until reached the specific operating condition, and pay attention to the current if exceeds the rated value.
Maintenance
1. Don’t allow fan with trouble running.
2. Maintenance of fan can only be carried out during shut-down of fan.
3. Don’t freely change the maintenance person, specific person operating and repair the fan is preferred.
4. When the fan is repaired, the motor switch must be monitored or locked.
5. Regularly remove dust, contamination and the foreign materials and prevent rust.
6. Inspect the thermometer and oil indicator regularly.
7. Except replacing the lubricant after overall, replace the lubricating oil periodically.
List of troubles and causes
Troubles causes
Severe vibration of bearing box 1.The shaft of fan is not parallel with that of motor; the coupling is misalignment.
2.friction between casing or inlet and impeller.
3.The foundation is not rigid enough or firm enough.
4.loosing of rivets in impeller or deformation of impeller.
5.Loose matching of shaft with impeller main disc.
6.Loosing of the bolts which connect casing and bearing with support, bearing with its cover.
7.Installation of fan inlet and outlet ducts is improper, which causes vibration.
8.The rotor is unbalance.
High temperature-rise of bearing 1.Severe vibration of bearing box.
2.Lubricant is poor in quality, deteriorated, mixed with dust, sand, contamination and etc.
3.Connection of bearing box cover and pedestal is over tight or Loose.
4.Fixing position between shaft and rolling bearing is slant, the front and back bearing are out of alignment.
5.wornout of rolling bearing.
Over current and high temperature-rise in motor 1.Gate or damper in the inlet and outlet pipes are not closed when starting-up.
2.Flow rate exceeds the specific value or air duct leaks.
3.Air density delivered by fan is over strong or contain visco-materials.
4.Input voltage of motor is low or is cut out in a single phase.
5.Coupling connecting is out of alignment the belt is too tight or the clearance is not uniform.
6.Influence caused by severe vibration of bearing box.
7.Influence caused by fan in parallel operation condition is worse or trouble happened.
Belt sliding Two belts are not in the center line. The belt slides down from a small belt pulley.
Bet chattering The distance of two belt pulleys is too short or the belt is too long.
