u.fl IPEX 3M膠安裝高增益GPS Glonass北

u.fl IPEX 3M膠安裝高增益GPS Glonass北斗PCB天線
型號:GPSGNBD005-IPEX
品牌:慧聯
原產地:中國
類別:電子、電力 / 天線
標籤︰gps glonass北斗天線 , 3M膠安裝gps天線 , 高增益車載天線
單價: ¥21.6 / 件
最少訂量:10 件

產品描述

GPS/GLONASS/BEIDOU Active Antenna Specifications:

Part Number: GPSGNBD005-IPEX

Dielectric Antenna Specification

Size

25×25×4mm

Frequency Range

1559-1610MHz

BEIDOU:1561MHz, GPS:1575.42MHz, GLONASS:1602MHz

V.S.W.R

<2.0

Attenuation

>25dB

Impedance

50 ohm

Peak Gain

>3dBic, Based on 7×7cm ground plane

Gain Coverage

>-4dBic at –90°<0<+90°(over 75% Volume)

Polarization

Right-handed Circular(RHCP)

LNA specifications

LNA Gain

(Without cable)



28dB Typical

Noise Figure

1.8dB

V.S.W.R

<2.0

DC Voltage

2.7V-5.0V±0.5V

DC current

<25mA   Max(5V DC)

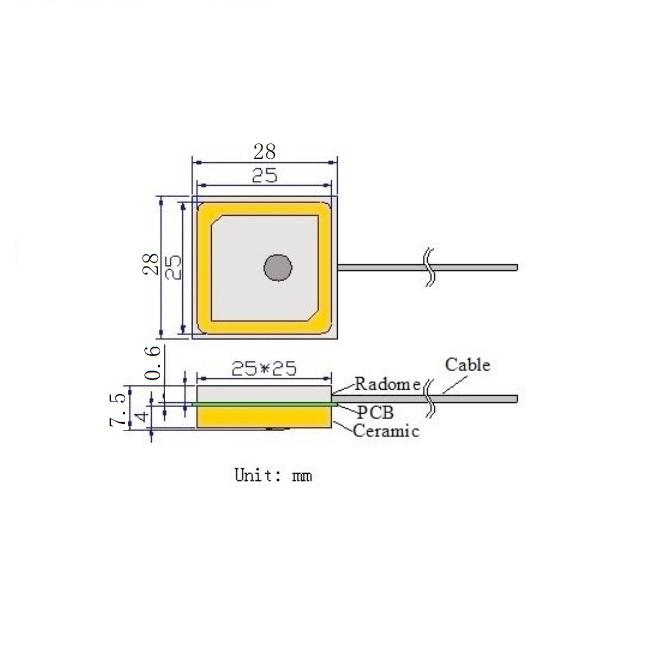

Mechanical Specifications

Weight

<100g

Size

28x28x7.5mm

Cable

200mm 1.13mm (D) cable

Connector

U.FL/IPEX connector

Other Cable

RG178, RG174, RG316, LMR100 or others

Other Cable Length

10cm, 50cm, 100cm, 200cm, 4m or others

Other Connector

SMA, FAKRA, FME, MCX, MMCX, BNC, TNC or others

Mounting

Adhesive

Housing

N/A

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis



付款方式︰TT, PayPal

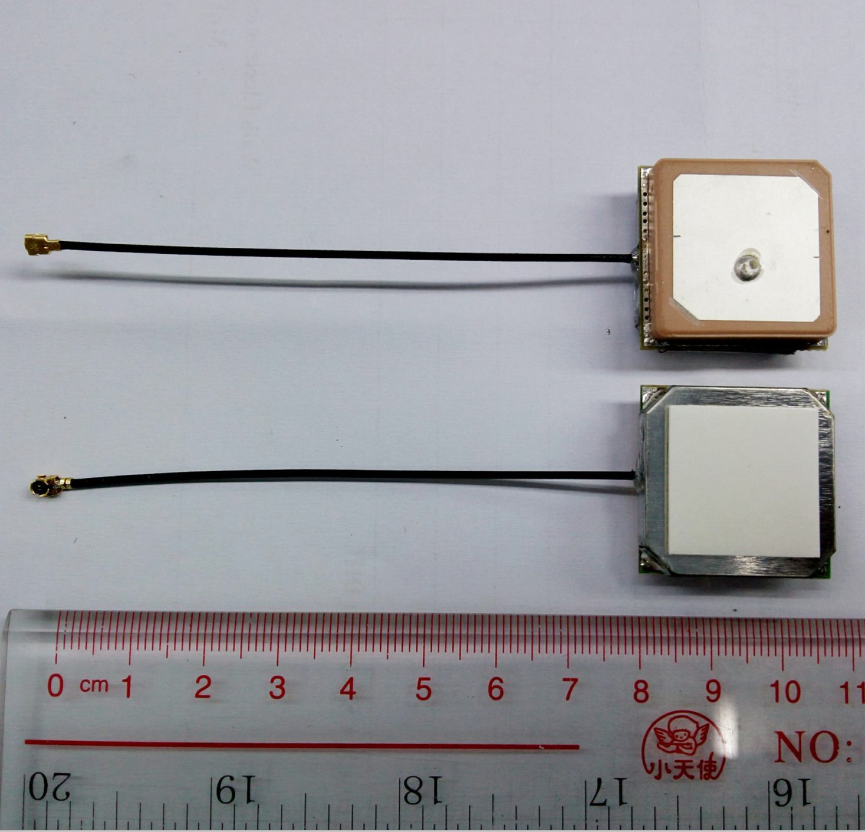

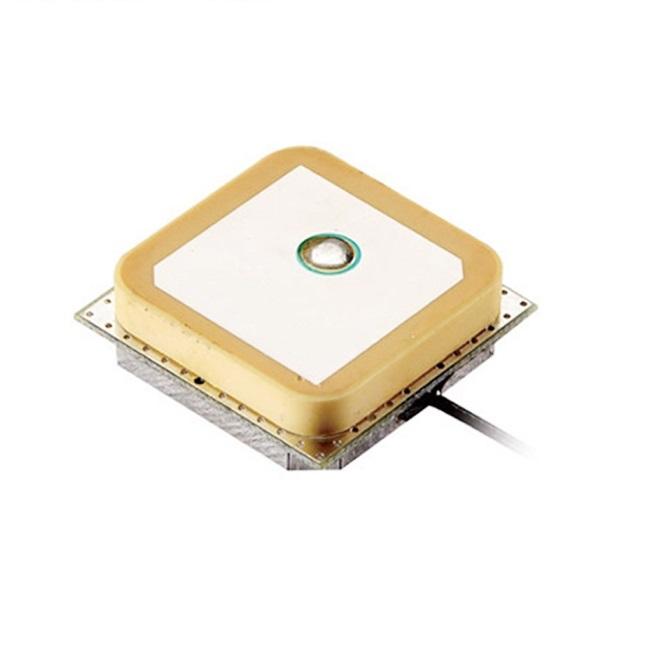

u.fl IPEX 3M膠安裝高增益GPS Glonass北斗PCB天線 1u.fl IPEX 3M膠安裝高增益GPS Glonass北斗PCB天線 2u.fl IPEX 3M膠安裝高增益GPS Glonass北斗PCB天線 3
