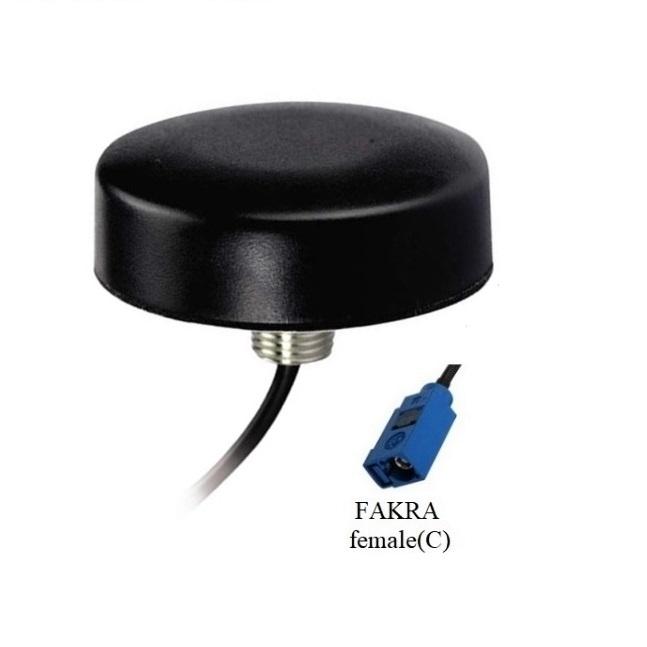

fakra母直螺絲安裝防水室外用高增益GPS Glonass

fakra母直螺絲安裝防水室外用高增益GPS Glonass北斗有源車載天線
型號:GPSGNBD007-FAKR
品牌:慧聯
原產地:中國
類別:電子、電力 / 天線
標籤︰gps glonass北斗天線 , 螺絲安裝gps天線 , 高增益車載天線
單價: ¥38.4 / 件
最少訂量:10 件

產品描述

GPS/GLONASS/BEIDOU Active Antenna Specifications:

Part Number: GPSGNBD007-FAKRA

Dielectric Antenna Specification

Size

25×25×4mm

Frequency Range

1559-1610MHz

BEIDOU:1561MHz, GPS:1575.42MHz, GLONASS:1602MHz

V.S.W.R

<2.0

Attenuation

>25dB

Impedance

50 ohm

Peak Gain

>3dBic, Based on 7×7cm ground plane

Gain Coverage

>-4dBic at –90°<0<+90°(over 75% Volume)

Polarization

Right-handed Circular(RHCP)

LNA specifications

LNA Gain

(Without cable)



28dB Typical

Noise Figure

1.8dB

V.S.W.R

<2.0

DC Voltage

2.7V-5.0V±0.5V

DC current

<25mA   Max(5V DC)

Mechanical Specifications

Weight

<200g

Size

Φ47×15mm

Cable

4m RG174 cable

Connector

FAKRA female straight (code C)

Other Cable

RF1.13, RG178, RG316, LMR100, RG58 or others

Other Cable Length

50cm, 100cm, 200cm, 3m, 5m or others

Other Connector

SMB, FME, SMA, MCX, MMCX, BNC, TNC or others

Mounting

Screw

Housing

Black ABS

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

Waterproof

IP67



付款方式︰TT, PayPal
