型號: | LTE4G044-SMA |
---|---|
品牌: | 慧聯 |
原產地: | 中國 |
類別: | 電子、電力 / 天線 |
標籤︰ | 支架安裝lte 4g天線 , 牆面安裝lte 4g天線 , 高增益車載天線 |
單價: |
¥62
/ 件
|
最少訂量: | 10 件 |
GSM 3G 4G LTE Antenna Specifications:
Part Number: LTE4G044-SMA |
|
4G LTE Antenna Specification |
|
Frequency Range |
698-960/1710-2700MHz |
V.S.W.R |
≤2.5 |
Gain |
25dBi |
Polarization |
Vertical |
Radiation |
Omni directional |
Max Input power(W) |
50 |
Impedance |
50 ohm |
Mechanical Specifications |
|

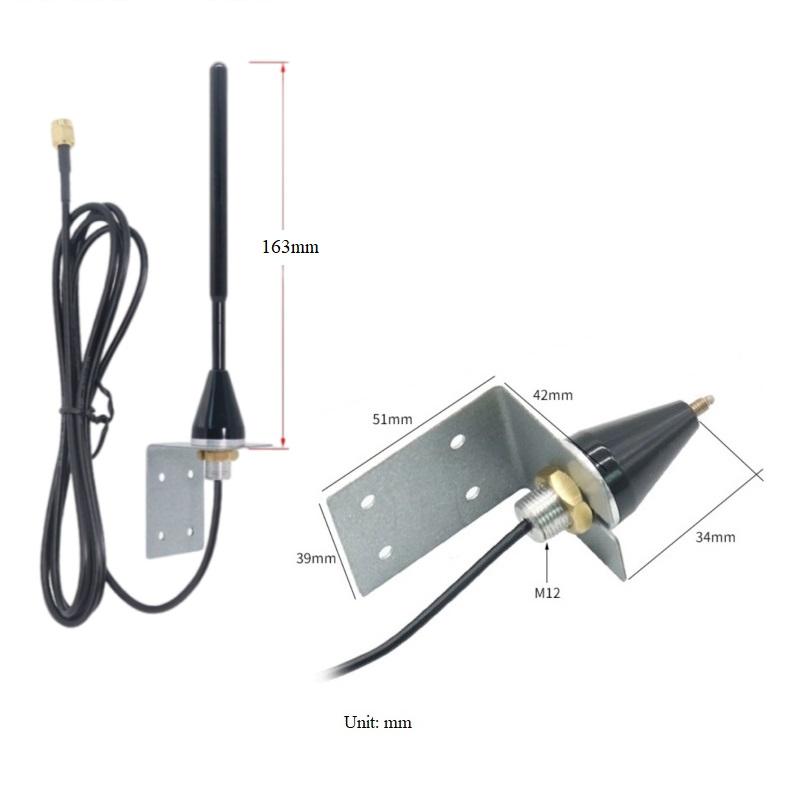

Size |
163mm |
Weight |
<250g |
Cable |
3m RG174 cable |
Connector |
SMA male straight |
Other Cable |
RG178, RG316, LMR100, RG58 or others |
Other Cable Length |
50cm, 100cm, 250cm, 4m or others |
Other Connector |
SMB, FME, FAKRA, MMCX, MCX, BNC, TNC or others |
Mounting |
Bracket, wall mount |
Housing |
Black ABS |
Environmental Specification |
|
Working Temp |
-40℃~+85℃ |
Vibration |
Sine sweep 1g(0-p), 10~50~10Hz each axis |
Humidity |
95%~100%RH |
Waterproof |
IP67 |
