Model: R5AV-W:
- US receptacle(2P+E)
- Max Voltage-proof: 3KV
- Rated: 10A 250V
- Dimensions: 36 x 36 x 28(mm)
- Receive all kinds of plugs from USA

Model: R5BV-W:
- 2-pin Universal receptacle (2P+E)
- Max Voltage-proof: 3KV
- Rated: 10A 250V
- Dimensions: 36 x 36 x 36.3(mm)
- Receive all kinds of plugs 2-pin

R7V-W:
- BS receptacle (2P+E)
- Max Voltage-proof: 3KV
- Rated: 13A 250V
- Dimensions: 36 x 36 x 28(mm)
- Receive all kinds of plugs 3-pin UK

RGFV-W:
- Euro type Universal receptacle (2P+E)
- Max Voltage-proof: 3KV
- Rated: 16A 250V
- Dimensions: 36 x 36 x 28(mm)
- Receive all kinds of plugs European

R16V-W:
- GB 3-pole receptacle(2P+E)
- Max Voltage-proof: 3KV
- Rated: 10A 250V
- Dimensions: 36 x 36 x 36.3(mm)
- Receive all kinds of plugs China

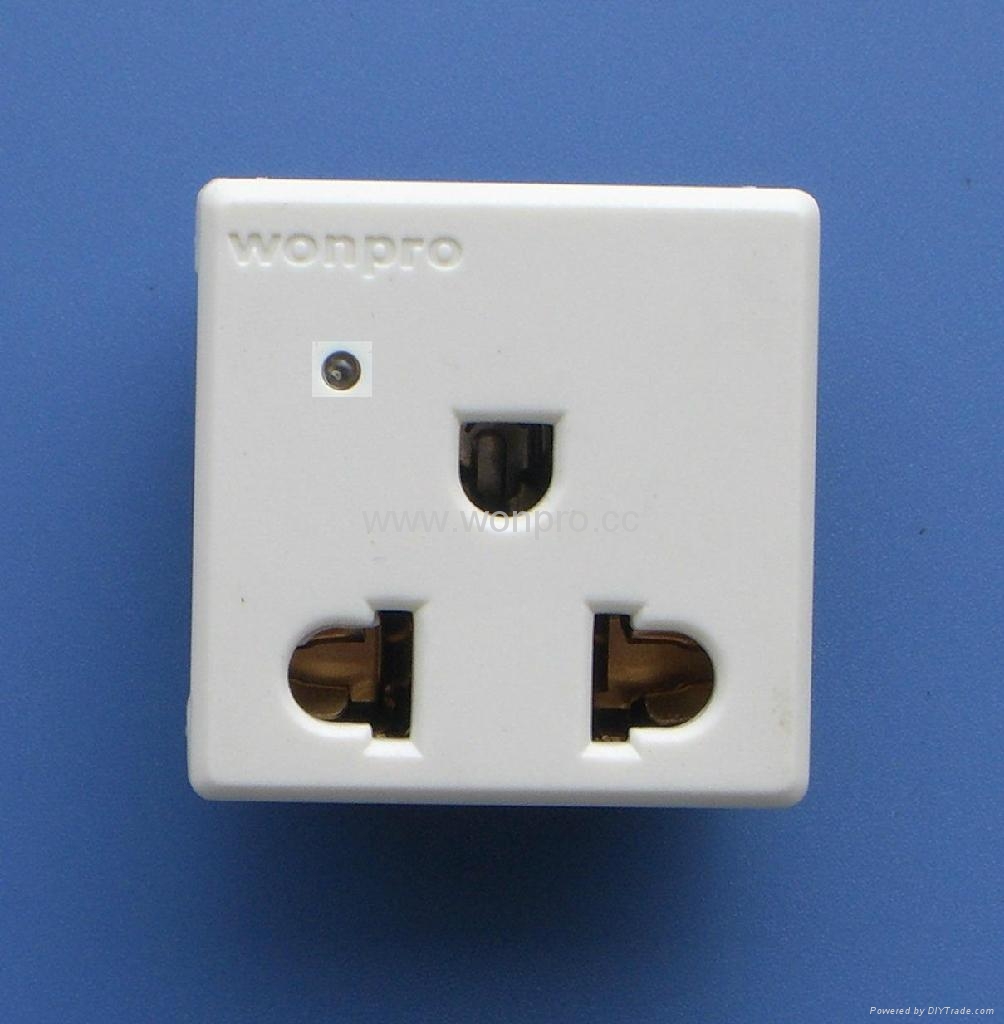

Universal receptacle can receive all kinds of plugs all over the world. Design for international standardization, unified size., replacing easily, and meet your individuality need. Specially design of match electroform apparatus for all kinds of industrial manufacturing lines/testing instrument equipment /big type database/web management center/information product.

***Suitable for factory testing use or install on electronic insrument and equipment.

Reverse side of R4T, RU4T, R5AT, R5BT.
1. The size of holes to insert the wire= Φ4.7mm*3;
2. Suitable cable Φ0.8m/m~Φ4.5m/m;
3. Please skin 15m/m~18m/m when connecting the cable;
4. After insert the wire, please try to pull and make sure the cable is firm;
5. The size of panels and frames, please refer to the panel series.
