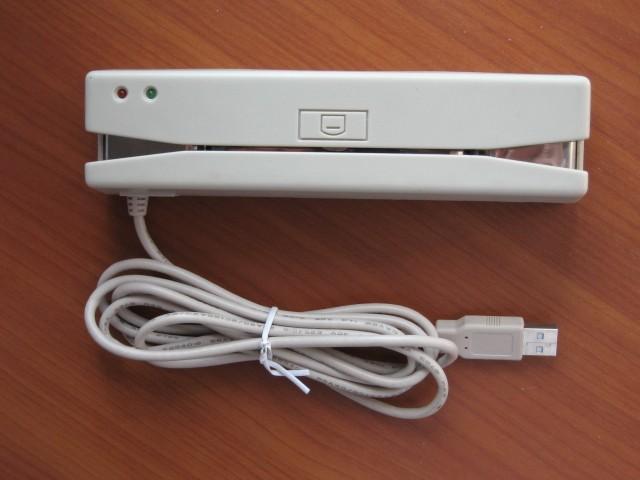

磁卡閱讀器(USB、美國駕照讀卡器)

磁卡閱讀器(USB、美國駕照讀卡器)
型號:MSR123
品牌:優科利
原產地:中國
類別:電器、照明 / 金融和商業用電子 / 金融電子產品
標籤︰磁卡閱讀器 , 刷卡機 , 磁卡機
單價: -
最少訂量:-

產品描述







Ⅰintroduction

magcard reading machine is one of magcard reading equipments we developing. It is specially used to read and transmit information in magcard.

With F2F decoding magcard, the product has magcard coding and data transmitting functions and supports pulling cards in both directions. According requirements of every client, it will read information in the No.1, No.2 and No.3 tracks of magcard. It is fully according with ANSI/ISO technical standard and reads all 3 data tracks including the AAMVA data on many states drivers license and the CA DMV format too.



Ⅱ functions

· automatically inspecting function when starting

· supporting reading information in magcard in both directions

· buzzer buzzing and green LED lighting to indicate reading successfully

· usb output getting power by it self and no driver also no programming

· operating conveniently, online simple

· Read cards like gift cards;credit cards;drivers license

· Use the DIP switch to change the output like turn tracks on and off

Ⅲ technical guideline

· magcard standcard:ISO7810,7811-1,2,3,4,5 and all other standard

· Size: 141(L)*44(W)*43(H)mm

· Cable:  USB Cable  , really  Plag and Play

· coding mode:F2F(FM)

· speed of pulling card:10─120cm/s

· life of magnetic head:≥ 800,000 times

· work power pressure:DC5V±5%

· work current:≤35MA

· work temperature:0℃~40℃   storage temperature:-20℃~+60℃

· work humidity:10%~85%RH   storage humidity:5%~95%RH
