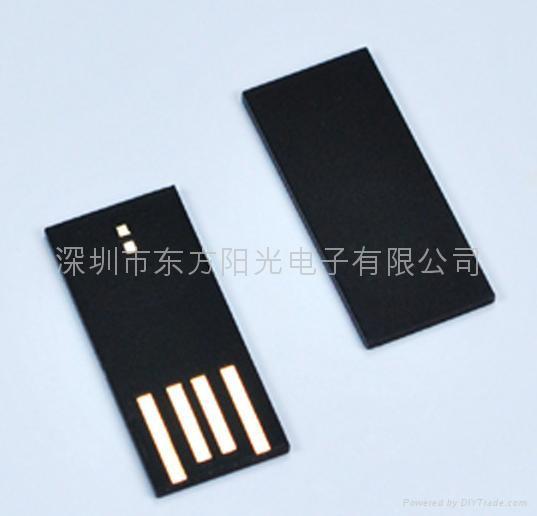

GOODSUN (SHENZHEN) ELECTRONICS CO.,LTD.  UFD is an USB Flash Module,available in multi-chip packaging (MCP) process. The total capacity of the flash module

for single-line flash die.  The flash types supported in UFD are MLC and SLC. An on module flash controller - SUN-850-241114A, support high-speed, reliable flash data transfer with USB1.1/2.0 data  transfer protocol. This flash module is suitable for tiny Size, water proof and shockproof USB portable storage applications.

Features

²Capacity: 1GB-8GB

²Module size: 24.8 X 11.3 X 1.4mm

²RoHS compliant products.

²Hi-Speed USB 2.0 compliant; backward compatible with USB 1.1.

²True Plug and Play functionality .

²Fully compatible with devices and Operating Systems (OS) that support

²the USB buck device standard.

²On module low power USB flash disk controller

²Water proof.

²Shock proof.

²Working Temperature: 0℃ to  70℃

²Storage Temperature: -40℃ to 85℃

²Input power: 5V/50mA(max)
