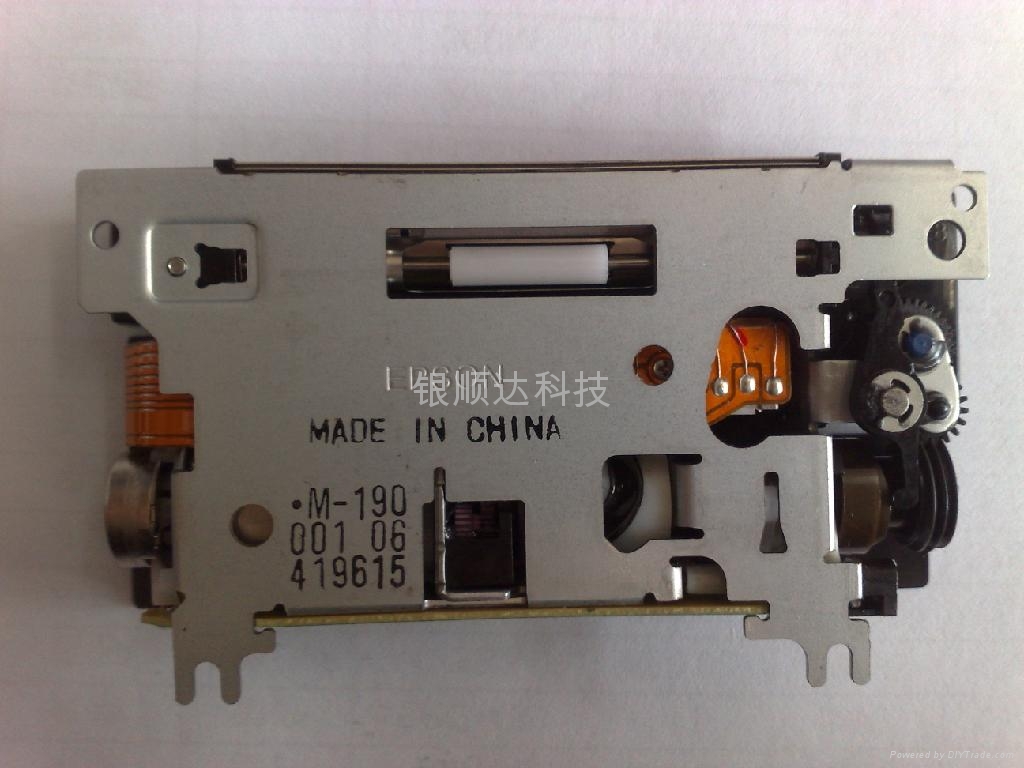

EPSON M-190
梭式點陣打印機M-190 系列

更快、更強
M-190系列可以提供比M-150系列更好的性能，打印速度有大幅的提高，帶來了應用上新的擴展，如用在CAT/EFT和測量儀器上。

高可靠性
該系列打印機卓越的可靠性令人放心。

小巧輕便
該系列超小型打印機性能優異，重量輕，可支持廣氾的應用場合。

技術規格：
M-190 Series (1 Station Printer)
Model M-190
Printing Method Shuttle impact dot matrix
Printing Format 　
Font 5 x 7
Column capacity 24 columns
Character size 1.7 (W) x 2.6 (H) mm
Line spacing 3.7 mm (In case of 5 x 7 font and 3 dots / line paper feed)
Column spacing 2.0 mm
Number of total dots 144 dots / line
Printing Speed 2.5 lines / sec. (at 4.8 VDC)
Print head 　
Voltage 3.3 to 5.2 VDC
Peak current Approx. 2.5 A / solenoid (at 4.8 VDC)
Motor 　
Voltage 3.8 to 5.2 VDC
Mean current Approx. 0.35 A (at 4.8 VDC)
Paper Roll paper
Dimensions 57.5 ± 0.5 mm (W) x dia. 83 mm max.
Total Thickness 0.06 to 0.085 mm
Copy Capability Original and one copy
Ribbon Cassette ERC-09 / 22
Operating Temperature 0 to 50℃
Reliability 　
Print head Life -
MCBF 1,500,000 lines
Printer Life 2,250,000 lines
Overall Dimens ions 91.0 (W) x 46.9 (D) x 15.8 (H) mm
Mass (without options) Approx. 100 g
