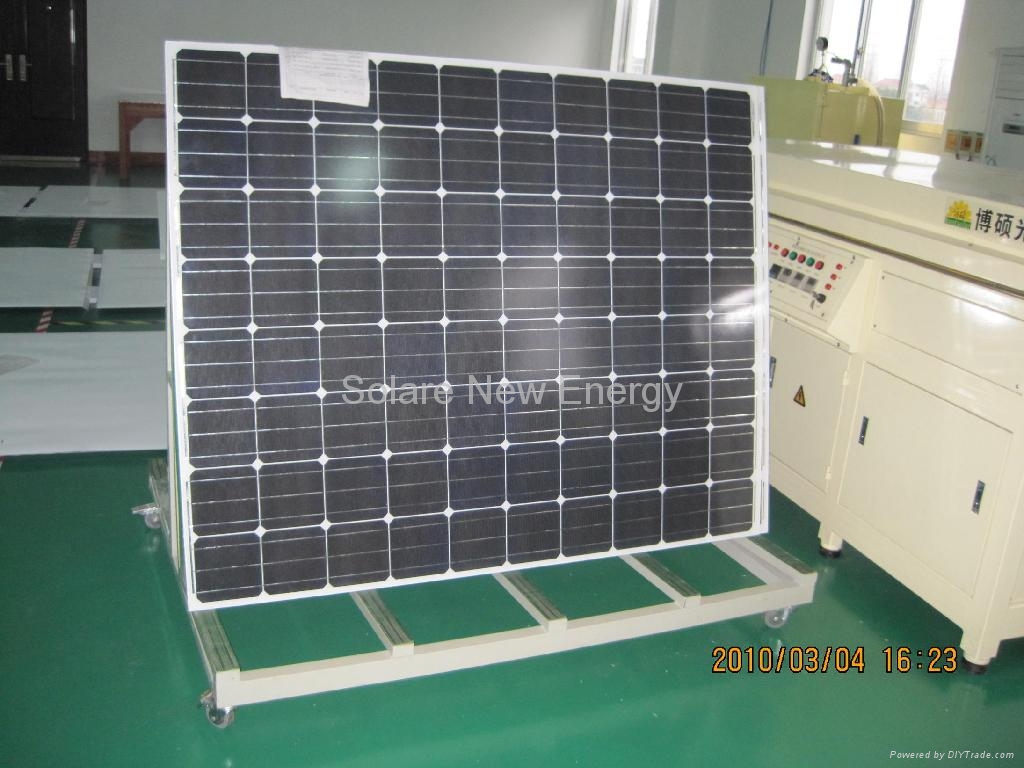

Solare New Energy Mono solar panel 300Wp 40V offer industry leading high performance and are designed specifically to meet our client demands for residential, commercial and industrial use from small installations to multi-Megawatt power plants.

Quality Characteristics are as below:

a) Mono solar panel 300Wp 40V With famous brand High-efficient solar cells ensure high performance of solar module and create more power under same condition.

b) Average power of PV modules is within positive tolerance.

c) 3.2mm high-transparent low-iron toughened glass, EVA laminate and water-proof TPT yield long life modules while enhancing cell performance.

d) Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind pressure and snow load.

e) Bypass diodes to avoid hot-spot effect.

f) The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame trough and freeze or even bend the frame in cold season.

g) 5 years warranty for PV module and its materials and corresponding fittings, 90% output of rated power after 10 years and 80% output of rated power after 25 years under Standard Test Conditions.

h) Comply with IEC61215 and IEC 61730 TUV standard.

i) Produced under systemic quality control covering all processes and factors.



Module Specification	SM300(40)M1640×1307
Module Type	Mono
Peak power (Pmax)	300W
Open circuit voltage (Voc)	48.58V
Short circuit current (Isc)	8.20A
Max. power voltage (Vm)	39.5V
Max. power current (Im)	7.59A
Maximum System Voltage	1000VDC
Operating Temperature()	-40 to 85
Module size (mm)	1640×1307×50mm
Weight	26.5kg
All technical date at standard test condition: Am=1.5  E=1000W/m2  Tc=25
