特點
Feature
*體積小，容量大，適合自動安裝的卷（編）帶包裝。
Miniature size, large capacitance, tape and reel packaging suitable for auto-placement
*環氧樹脂封裝，從而具有優良的防潮性能、機械強度及耐熱性。
Epoxy resin coating creates excellent performance in humidity resistance, mechanical strength and heat resistance
*工業生產標準尺寸及多種腳型產品。
Standard size, various lead configuration
|
介質種類
Dielectric Type
|
I類介質
Class I
|
II類介質
Class II
|
|
介質材料
Dielectric Material
|
溫度補償型
Temperature Compensating
|
X7R/X5R(B)
|
Z5U(E)
|
Y5V(Y/F)
|
|
電氣性能
Electrical Properties
|
電氣性能最穩定，幾乎不隨溫度、電壓和時間的變化而變化。
The electrical properties is the most stable one and has little change with temperature, voltage and time.
|
具有較高的介電常數，容量可做到比I類電容器高，具有穩定的溫度特性。
X7R material has high dielectric constant, and its capacitance is higher than class I. These capacitors are classified as having a semi-stable T.C..
|
溫度特性介於X7R和Y5V之間，容量穩定性相對較差，對溫度、電壓等條件較敏感。
Temperature characteristic is between that of X7R and Y5V. The capacitance is unstable and sensible to temperature and voltage.
|
介電常數最大，但溫度特性較差，對溫度、電壓等條件較敏感。
Y5V material has highest dielectric constant. Its capacitance and dissipation is sensible to temperature and voltage.
|
|
應用
Application
|
適用於低損耗，穩定性要求高的高頻電路，如濾波器、振動器和計時電路等。
Used in applications where low-losses and high-stability are required, such as filters, oscillators, and timing circuits so on.
|
適用於容量範圍廣，穩定性要求不高的電路中，如隔直、耦合、旁路及鑑頻等電路中。
Used over a wide temperature range , such in these kinds of circuits, DC-blocking, coupling, bypassing, frequency discriminating etc.
|
適用於要求大容量，使用溫度範圍接近於室溫的旁路、耦合等，及低直流偏壓電路中。
Ideally suited for bypassing and coupling application circuits operating with low DC bias in the environment approaching to room temperature.
|
適用於要求大容量，溫度變化不大的電路中
Used over a moderate temperature range in application where high capacitance is required.
|
|
容量範圍
Available capacitance range
|
0.5pF~0.1uF
|
100pF~22uF
|
1nF~10uF
|
訂貨代碼
Ordering Code
CT4 - 0805 Y 104 M 500 P F3
↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑
A B C D E F G H
尺寸、工作電壓及容量關係表
Size Code and Voltage VS Capacitance
• 其它規格可直接和我們聯繫。
• Others are available, Contact yuexing.

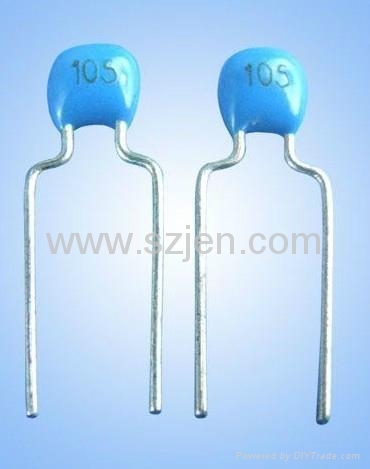

通用型引線MLCC可靠性及測試方法
Reliability and Test Method for General Leaded MLCC
以上所示“標準條件”解釋如下：
溫度：5~35℃， 濕度：45~85%， 氣壓：86~106kPa
* Note on standard condition: " standard condition " referred to herein should be defined as follows:
5 to 35℃ of temperature, 45 to 75% of relative humidity, and 86 to 106kPa of atmospheric pressure.
若測試結果有爭議時，仲裁試驗用標準大氣條件為：
溫度：25±1℃， 相對濕度：48%~52%， 氣壓：86~106kPa
* When there are questions concerning measurement results:
In order to provide correlation data, the test should be conducted under a condition of 25 degrees plus/minus 1
centigrade of temperature, 48% through 52% of relative humidity and 86 through 106 kPa of atmospheric pressure.
包裝形式
Packaging Style
注意Note：
P1=3.85mm for F=5.08mm；P1=5.1mm for F=2.54mm.
|
