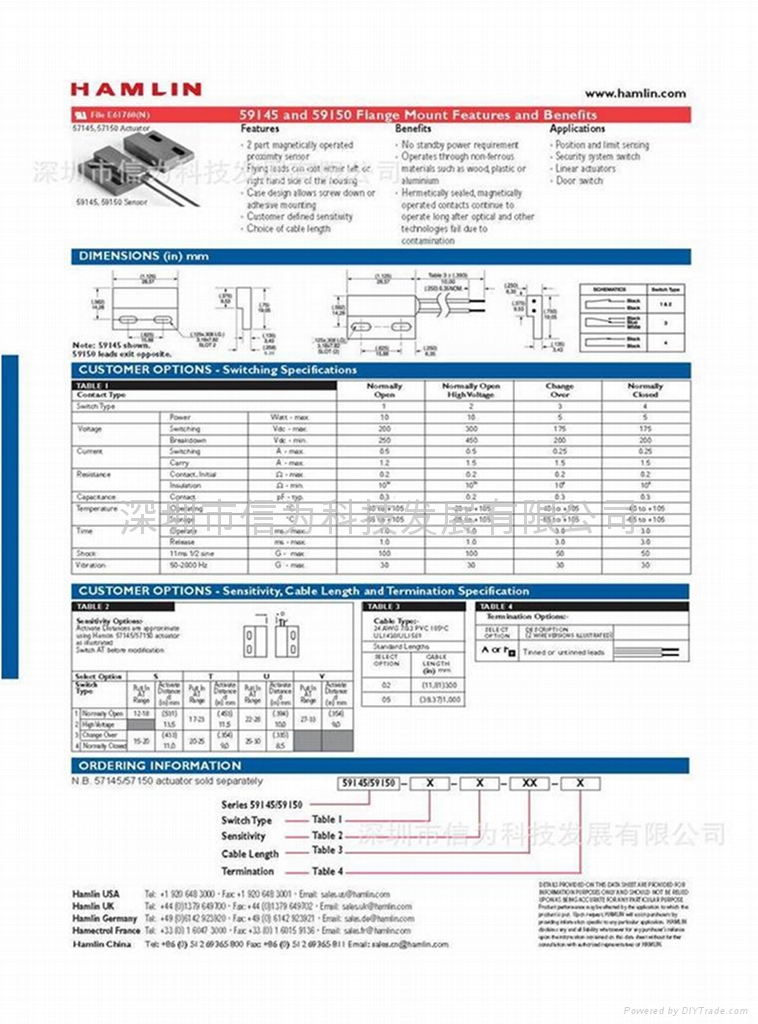

59145 / 59150 belongs to reed proximity switch, actuated by  magnetic field, and can be installed with screw. this switch sensor is consist of  two parts, one is the switch, the other is the magnet. The switch is made of reed switch ,connected with the wire,tightly sealed. The related strength magnet sealed in a plastic or alloy case.  The switch on or off status will be changed according to the distance of these two parts and varing the sensing distance of the object.

can be customized: yes

brand: Hamlin

modle number:  59145 / 59150

response frequency: 3200

rated current: 1A       rated voltage: 250V

certification: SGS       detect distance: 8-15mm

four typical  styles :

（X）1. normal open low voltage 10W ;  2. normal open high voltage 70W ; 3. conversion C type; 4. normal closed

（X）S\T\U\V  means different sensitivity cable and trigger action distance

（X）02:  wire lengh 300mm,  03: wire lengh 1000mm

（X）A: with tin   F: without tin

normal open:  get through while the magnet close to the switch

normal closed:  switch off while the magnet close to the switch

C type:  single pole double throw switch

sensing distance: 8-15mm ( be related to the component parts and the matched magnet strength. and it also can be customized)

withstand voltage: 130V\250V

color , outgoing wire direction , wire material, terminal , sensing distance can be customized.
