Electronic transmission line core line flexible metal conduit

Electronic transmission line core line flexible metal conduit
Model:3mm to 12.7mm
Brand:TongFeng
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Other Machine Hardware
Label:flexible conduit , metal conduit , stainless steel tube
Price: ¥10 / pc
Min. Order:200 pc
Inquire Now
点击这里给我发消息

Product Description

Small bore instrumentation tubing, Flexible metal conduit for optic fibers & control panel wirings
Stainless Steel Flexible Conduit System is particularly suitable for corrosive environments wirings, and the flexible design means it is ideal for constantly vibrating or flexing applications. The TongFeng small bore Stainless Steel Conduit System further enhances the metallic flexible conduit ranges with the benefits of stainless steel. They are most suitable for protecting fibre optics cables.
Flexible Stainless Steel Conduit: Type AT  is an ultra-flexible, stainless steel conduit designed primarily for OEM applications. A typical application would be armouring in specialty sensing devices, or medical equipment, including fiber-optics. SMALL BORE HOSE, Flexible stainless steel conduit for CCTV/roller shutter
TongFeng manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel or galvanized steel strip. However, other metals are also available. flexible stainless steel conduit
Applications: Offshore and Chemical Plants & Optical Fiber and sensors wirings
Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.

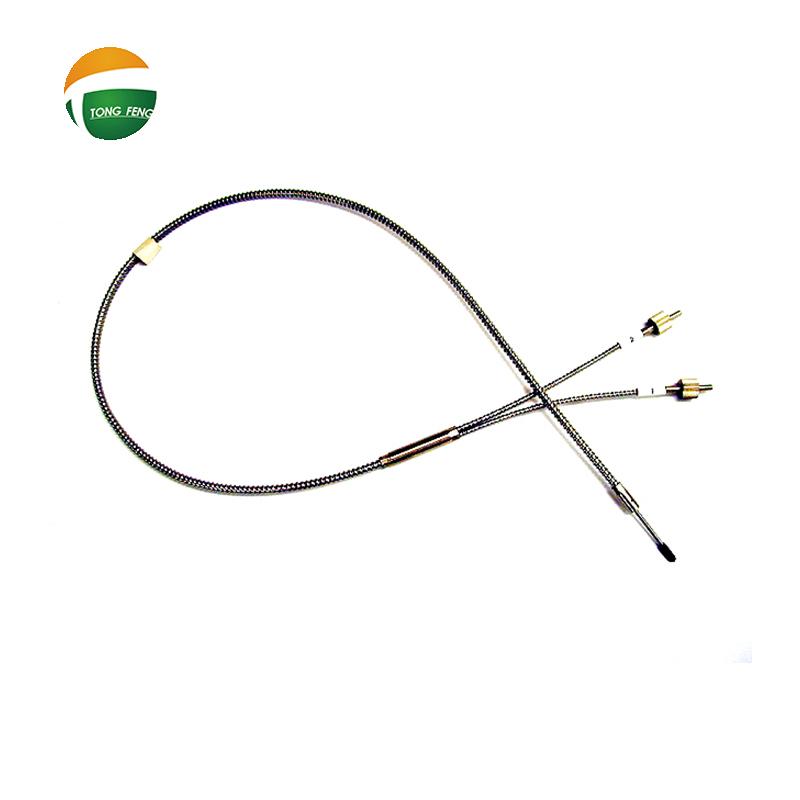

Small ID flexible metallic conduit used for Flexible Fiber Optic Scope wirings.
Constructions:
Instrumentation tubing is made in two configurations, or constructions, commonly called SquareLok and InterLok, and is often abbreviated as SL and FI.
SquareLok Style (SL)
SquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.
Fully InterLok Style (FI)
InterLok metal strip and the edges of the strip are completely interlocked with each other. This offers increased crush protection, and higher axial strength.

Electronic transmission line core line flexible metal conduit 1Electronic transmission line core line flexible metal conduit 2Electronic transmission line core line flexible metal conduit 3Electronic transmission line core line flexible metal conduit 4Electronic transmission line core line flexible metal conduit 5
