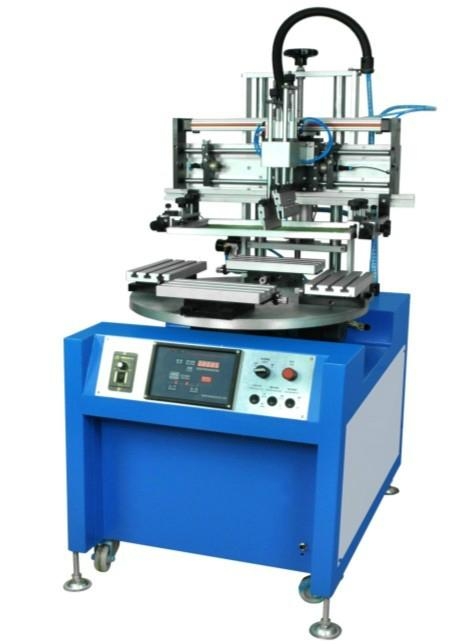

This machine is a high speed and precise screen printing machine, using Taiwan mechanical cam divider compose high speed rotary table, which have no shack when printing, because of having more workstations, you can pick and place workpiece at the same time. The speed is quickly, can be up to 1500PCS/hr. It's the first choice for you to do large quantity printing.
Feature&Specification
1. SCM IC coordinate light touching panel to compile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy, and metal coating surface
4. Distyle vertical structure, high precision, steady operation
5. The transverse stroke can be adjusted, spacing by Taiwan electronic switch
6. The angle of scraper and ink covering blades can be adjusted randomly
7. Installing scraper constant pressure equipment to make sure pressure is steady when printing
8. You can regulate work-table back and forth or right and left, and then fastening it
9. You can regulate screen frame back and forth, right and left or level orientation
10. T-slot worktable, convenient to install mould
11. Installing CEC oil buffer on up and down, left and right to avoid printing shocking
12. The machine is running fastly, stably and lower noise.
13. Action model option: Fully automatic semi-automatic manual
14. Start-up method: Panel foot switches
15. Scraper pressure controller: By pressure regulating Valve
16. Vertical driving style: Pneumatic
17. Transverse driving style: Pneumatic
18. Maximum printing area: 200*300mm
19. Transverse stroke: 400MM
20. Vertical stroke: 800MM
21. Worktable size: 600mm
22. Max height of printing products: 100mm
23. Printing workstation: 1PC
24. workstation: 2, 4, 8 for optional
25. machine size: 750*950*1500mm
26. weight: 195kg
Price Terms : FOB Shenzhen or Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Machine Fittings:
1.One aluminium screen flame
2.One Manual in English
3.One set of tool
Package List
Wooden case :850×1050×1600mm
Gross Weight: 235kg
Ship Date
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
Warranty
1.Cylinder can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.
3.Warranty period:3years
