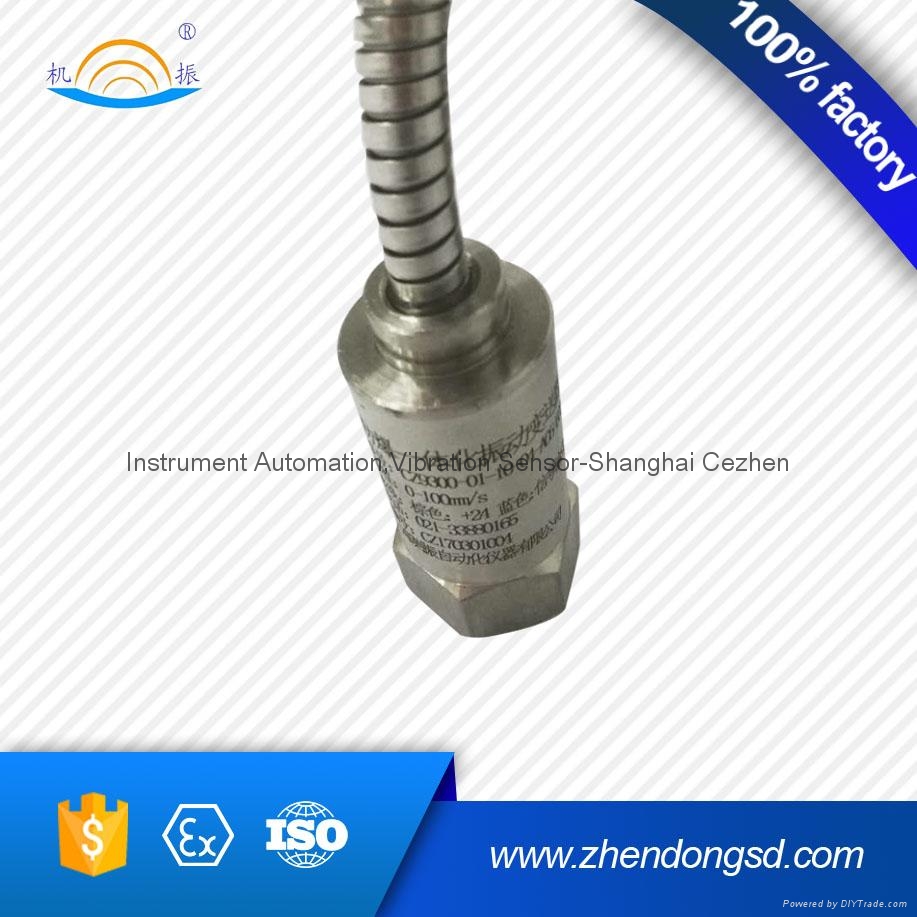

CZ9300 vibration control of a cylindrical shell using distributed piezoelectric  sensors and actuators

(Equivalent to Seismic Transmitter from Bently Nevada)



        CZ9300 installed built-in precision integral circuit to provide speed output,   based on Piezoelectric Acceleration Transducer. Compared with magneto-electric velocity transducer.

It has lots of advantages, for example, it has wider response frequency range (2HZ-4000HZ), mechanical moving parts are not easy to   damage   (working life up to 7 years), lightweight, excellent dynamic performance and so forth.

CZ9300 provide 4-20mA current output, wiring fault-tolerant protection, with  excellent  stability  reliability  and  strong  anti-interference ability.



Product Description

A.Technical Parameters

Production Name	CZ9300 piezoelectric vibration sensor with 4-20 mA output
Production Brand	Cezhen
Frequency Response :	5~1000HZ(Vibration speed  2~2000Hz (Vibration acceleration)  10~500Hz (Vibration displacement)
Measuring Range:	0 - 200mm/s (Vibration speed) 0-50g (Vibration acceleration) 0-8000μm (Vibration displacement)
Speed Direction::	From the bottom to the sensor (forward direction)
Output Signal:	4~20mA
Power Supply:	+24VDC
Can Withstand the Largest Impact	2000g
Working Temperature:	-40 ~ +85 Degree
Piezoelectric Material:	PZT-5
Explosive-proof Grade:	Ex ia llB Ga NO.: CNE×12.2768
IP Grade:	IP65

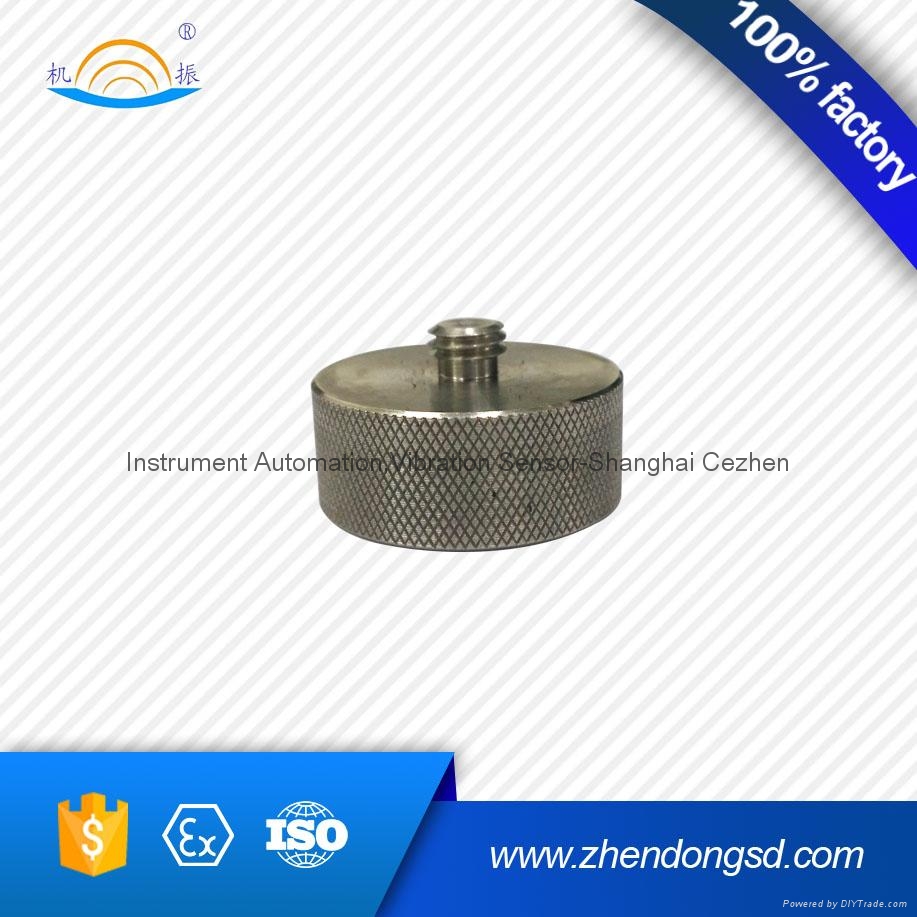

Mounting Thread:	M10*1.5 thread or customized
Weight:	About 110g
Connection Way :	Two Wire
Accessory:	Calibration certificate parameters; A mounting screw; Direct lead cable (standard: 2m, can be customized)
Shell Material:	Stainless Steel (Material can be changed according to user’s requirements)





B. Temperature Curve

C. Frequency Response Curve

D. Dimension Parameters



E,Parameter selection table



Related Products







Company Information



Packaging & Shipping

Packaging:

Packaging with plastic box saperated packing;

1 piece,2 pieces,5 pieces,10pieces per master caton or any ways you want;

10 pieces standard size sensors,gross weight is about 3kg.

Shipping:



Certifications





FAQ

1.What kind of sensor do we do?

We offer a very wide variety of vibration,displacement ,speed ,accelerometer sensors or transmitter,etc.



2.How to get your offer?

Please send us your technical parameters,specification or product model ,quantity you want,we will send you our best quotation.



3.If i did not use sensor before,how shall i do?

It does not matter,please tell us some key  teachnical parameters and the order quantity,we'll choose you most suitable one  and give our best service.



4.How to place the order?

If you accept the price,we would send you the profoma invice to arrange the payment.



5.How long is the production time after placing the order?

It would take 7-10 days ,anyway,when you place the order,we would comfirm the delivery time to you.



6.How do you send the goods?

We normally send the goods by DHL,FEDEX,UPS,TNT through our agent.And it will take 3-5 days for shipping.
