Water Jet Cutting Machine Double Cutting Head CNC Cutting Table

Water Jet Cutting Machine Double Cutting Head CNC Cutting Table
Model:DWJ2040-FB
Brand:Dardi
Origin:Made In China
Category:Industrial Supplies / Machinery / Cutting & Fold-bend Machine
Label:waterjet , water cutter , laser cutting machin
Price: -
Min. Order:1 pc
Inquire Now

Product Description

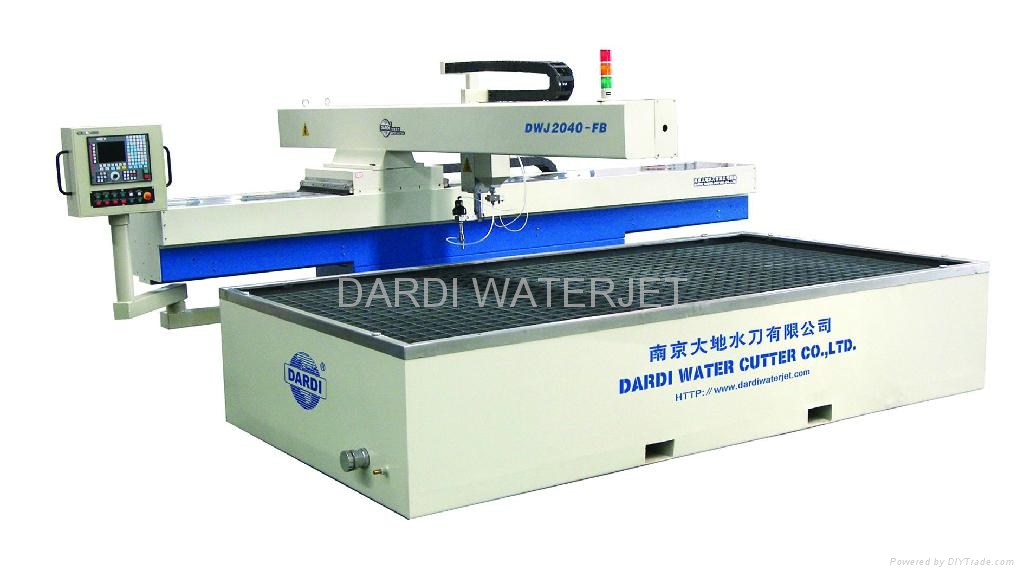

The Water Jet Cutting Machine Double cutting head CNC cutting table (DWJ2040-FB) can play twice the result with half the effort and increase the cutting speed and efficiency.

Fly arm, three sides of the table are open and easy to load and unload work-piece

The CNC machine body is aparted from table
The machine body is made of cast iron, and It's stable and holding mechanical precision for long-time.

                                                           DWJ20 Series Flying-arm CNC cutting table
 Model  2020  2030  2040  2060  2080
 Table size  X-axis  2100mm  2100mm  2100mm  2100mm  2100mm
 Y -axis  2100mm  3100mm  4100mm  6100mm  8100mm
Cutting Travel  X -axis  2000mm  2000mm  2000mm  2000mm  2000mm
 Y -axis  2000mm  3000mm  4000mm  6000mm  8000mm
 Z -axis 150mm/ 210mm/310mm
 Drive Motor A:Chinese New Step Motor
 B: ACservo (YASKAWA)
 NC controller HUAXIN320W;FAGOR
Cutting Accuracy  ±0.1mm
Repeatability Accuracy  ±0.025mm
 Fast positioning speed  A:5000mm/min           B:15000mm/min
Power supply  220/380/415 VAC,50/60Hz
Payment Terms:T/T west union
Water Jet Cutting Machine Double Cutting Head CNC Cutting Table 1Water Jet Cutting Machine Double Cutting Head CNC Cutting Table 2Water Jet Cutting Machine Double Cutting Head CNC Cutting Table 3Water Jet Cutting Machine Double Cutting Head CNC Cutting Table 4
