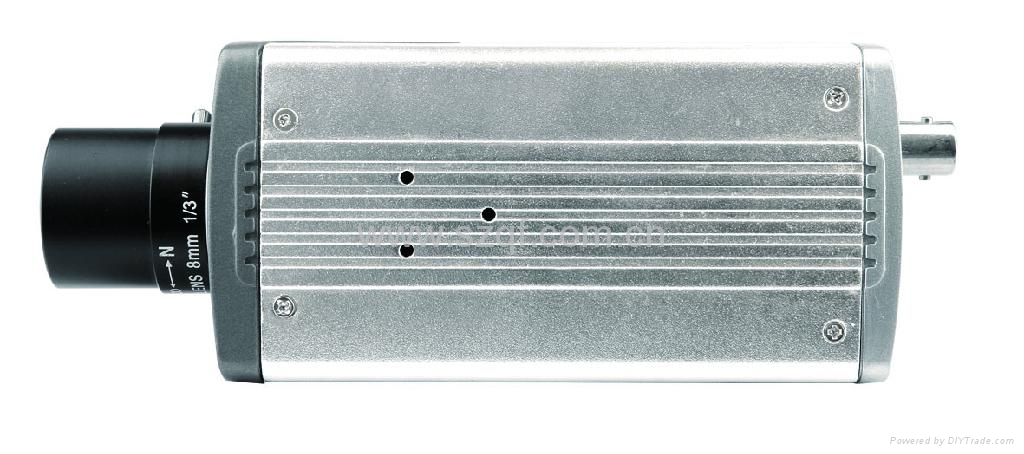

QF-608 security box type cctv camera
1.Resolution:420TVL/480TVL/580TVL optional
2.Lens:4mm/6mm/8mm/12mm/16mm optional with 2 driver,DC Driver/ vedio driver
3.Min. illumination 0.1lux/F1.2 used in day
4.Lingtning protection and anti-jamming to protect the camera and keep the good picture
5.Optional OSD menu and WDR fuction for the higher resolution 480tvl and 580tvl
6.Certificate:CE,FCC,ROHs

Spectification:
mage Sensor: 1/3" Sony Color CCD(Optional 420tvl/480tvl/580tvl);1/4" Sony Color CCD(420tvl);1/3" Sharp Color CCD(420tvl);1/4" Sharp Color CCD(420tvl)

Horizontal Resolution:420TV Lines/480TV Lines/580TV Lines

Signal System:PAL/NTSC

Picture Pixels:PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V)(420TVL)
PAL: 752(H) X 582(V);NTSC: 768(H) X 494(V)(480TVL&580TVL)

Sync System : Internal Synchronization

S/N Ratio:>48dB

Lens :  4mm/6mm/8mm/12mm/16mm optional

Electronic Shutter : PAL: 1/50 -1/100,000 Sec, NTSC: 1/60 -1/100,000 Sec

Gamma Collection : r=0.45

White Balance : AUTO

BLC : AUTO

AGC : AUTO

Minimum Illumination : 0 Lux (IR ON)

Video Output : 1.0Vp-p, 75ohm

Power Supply : DC12

Operation Temperature : -10~+50 degree



Delivery time:Sample order 5-7 days,bulk order 15-20 days

Production ability:20000pcs/month
