720P RS232 JPEG Camera with wide angle lens

720P RS232 JPEG Camera with wide angle lens
Model:LCF-23IRCB
Brand:LCF
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / GPS
Label:rs232 camera , jpeg camera , jpeg serial camera
Price: -
Min. Order:5 pc

Product Description

Model No.: LCF-23IRCB

Application

General purpose embedded imaging and control.

Security system

Access Control system

Robot vision, object detection and recognition.

Industrial control system.

Automotive system.

Medical systems etc.

Features

1. Working by day and light(IR LED)

2. Low cost and low powered camera for embedded imaging applications.

3. On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.

4. UART: up to 115200bps for transferring JPEG still pictures

5. Support fast continuous snapshotting

6. Built-in down sampling, clamping and windowing circuits for 1280X720,VGA, QVGA, 160x120 image resolutions.

7. Auto-Infrared, Auto-White Balance, Auto-Gain Control.

No.

Item

Description

1

Image sensor

CMOS

2

Pixels

1.0 mega pixels

3

Image Resolution

1280*720,640*480 320X240 160X120

4

Image Compression

JPEG

5

Focal Length

2.5mm  3.6mm 6.0mm

6

Angle of View

150°120°  90°

7

Minimum lumen

1 Lux

8

Night Vision lumen

5 Lux

9

Night Vision Image

Black-White Image

10

Night Vision Distance

3-10M

11

Serial Interface

RS232 TTL RS485

12

Baud Rate

9600-115200bps

13(1)

Connector

Customize for customer(any connector is available)

(2)

 PIN Description

DC5V/24V

TXD

RXD

GND



14

Length of Cable

Customize for customer(2m is default one)

15

White Balance

Automatic

16

Exposure

Automatic

17

Auto Gain Control

Automatic

18

Weight

0.3KG

19

Size

92Φ*66h(mm)

20

Working Current

IR Off: 50-80mA

IR On: 250-350mA

21

Power Supply

5V

22

Working Temperature

-15°C~70°C

23

Datasheet/Protocol

LCF Protocol

24

PC Test Software

Support

Payment Terms:T/T in advance
Lead Time:2-3 working days

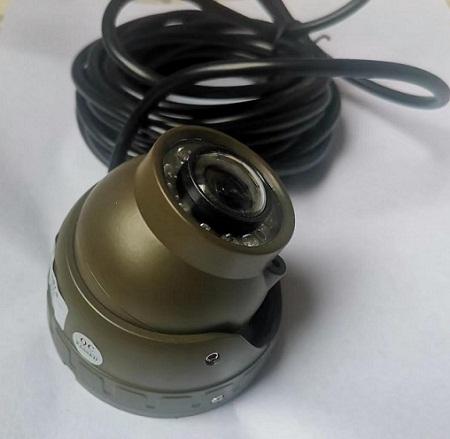

720P RS232 JPEG Camera with wide angle lens 1720P RS232 JPEG Camera with wide angle lens 2
