Newest Real-time Gradient PCR Instrument

Model:	-
Brand:	ROCTEC
Origin:	-
Category:	Industrial Supplies / Pharmaceutic Machine
Label:	Real-time PCR , Gradient PCR , PCR Instrument
Price:	US $42000 / pcs
Min. Order:	1 pcs

Inquire Now

Product Description

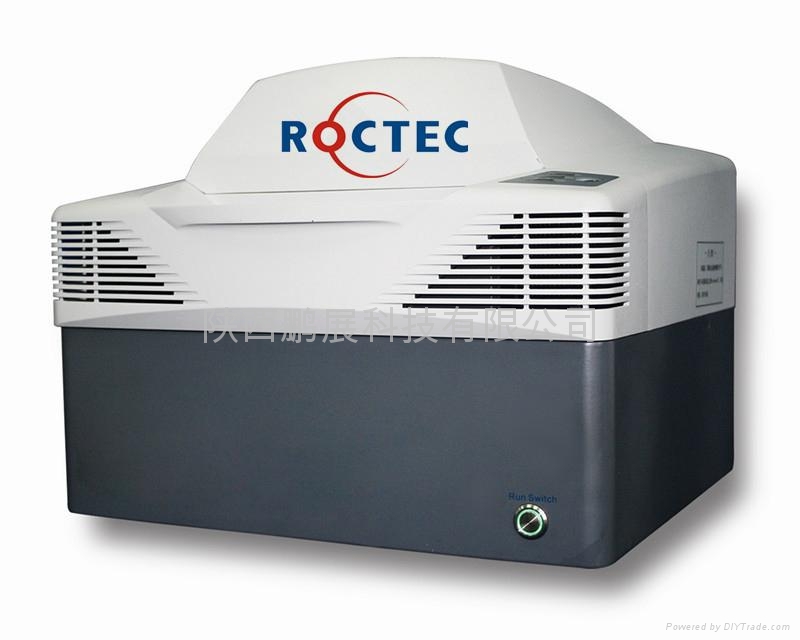

Line-Gene 9600 is the newest product Real-Time PCR detection system family. Based on Line-Gene family's tradition, Line-Gene 9600 performs larger sample capacity, more detection channels and wider temperature range.

Unlike other Line-Genes in family, the unique patented block dissipation technology and bottom detection mode provide Line-Gene 9600 better heating/cooling rate, temperature accuracy, uniformity and stability. Line-Gene 9600 has up to 96 samples capacity and implements 96 wells dual-color scanning only within 5.5 seconds. With new design of at most eight channels, the instrument covers the whole fluorescence detection wavelength.

Name	LineGene9620		LineGene9640	LineGene9660	LineGene9680
Model	FQD-96A
Sample Capacity	96-Well Microplate(Full Skirted),128-strip,960.2ml(Bottom Transparent)
Excitation Wavelength	300-800nm
Emission Wavelength	500-800nm
Detected Fluorescence	F1:FAM,SYBR GreenⅠ F2:VIC,HEX,TET,JOE	F1:FAM,SYBR Green Ⅰ F2:VIC,HEX,TET,JOE F3:CY3,NED,TAMRA F4:ROX,TEXAS-RED		F1:FAM,SYBR Green Ⅰ F2:VIC,HEX,TET,JOE F3:CY3,NED,TAMRA F4:ROX,TEXAS-RED F5:CY5 F6:Light Cycler Red		F1:FAM,SYBR Green Ⅰ F2:VIC,HEX,TET,JOE F3:CY3,NED,TAMRA F4:ROX,TEXAS-RED F5:CY5 F6:Light Cycler Red F7,F8 for Customized
Block Temp. Range	4~105°C(Minimum Increment:0.1°C) SOAK Low Temp. Conservation Function
Heating/Cooling Rate	4.0°C/s
Temp. Control Accuracy	≤±0.1°C
Temp. Fluctuation	≤±0.1°C
Temp. Uniformity	≤±0.3°C
Temp. Control Mode	BLOCK/Tube Simulation Mode(Automatic Control Based On Sample Volume)
Sample Volume Range	5~100ul
Gradient Temp. Range	1~36°C
Hot-lid Temp. Range	30~110°C(Adjustable, Default 105°C,Automatic Hot-lid)
Fluorescence Detection Repeatability	5%
Scan Mode	Entire Plate or Designated Line
Program	Max 20 Segments for Each Program, Max 99 Cycles
Operation Mode	Continuous
Scan Period	5.5s(F1/F2 96 Plate Scan)
Feature Function	Absolute, Quantification, Relative Quantification, SNP Analysis, Melting Curve, Gradient etc, Automatic Gain, Customized
Operation System	Microsoft:Windows2000/XP/Vista/windows7 Software:Excel2000/2002/2003/2007 Access2000/2002/2003/2007
PC configuration	Memory:512M Hard Disk:10GB CPU:PentiumR4 Virtual Memory:≥1000M
Power Supply	100-240V~50/60Hz 600W
Dimension(LWH)	430395352
Net Weight	28KG
Socket	RS232 Adapter, USB Adapter(Optional),Blue Tooth Adapter(Optional)
