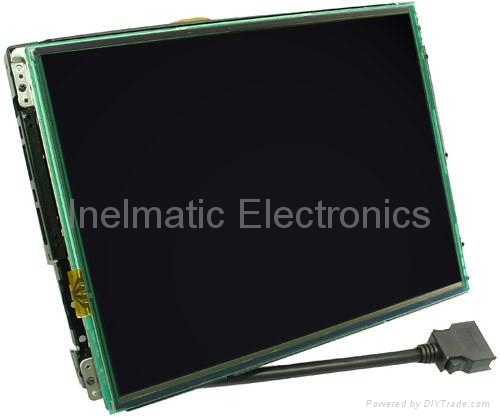

MF1000 is the open frame version of our MF1000model with XGA resolution, including AFFS+ technology (transflective equivalent) with 350nits upto 1000nits brightness.The r ed chassis design makes it perfect for harsh environments as Vehicle fleet management terminal.

The XF1000 includes a high featured controller including automatic and manual back-light adjustment, depending of the ambient light, which makes it suitable for applications from the darkest night (NVIS) to the bright sun light. Besides, the XF1000 optionally includes a resistive touch panel with USB controller, adding full interactivity.

The XF1000 is available with VGA and Audio input as standard, optional DVI, Composite Video and S-Video inputs. and S-Video inputs. All inputs are available on the “all in one cable”, minimizing the time and cost for the installation and mainteniance, plus it includes a lockable connector for an easy and quick connection.

Features:

• Open frame aluminium chasis.
• Ultra-low power LED backlight.
• Sun-readable available.
• 5 Steps backlight dimmer.
• Automatic backlight dimmer.
• Autopower on/off by VGA signal.
• Autopower on/off by DVI signal.
• Native resolution 800x600 and 1024x728px.
• Two composite video input.
• One composite video input with mirror option.
• All in one cable, 2.5 and 4.5m length options.
• Power 6-36V, meets car/truck requirements.
• Ultra low power consumption.
• Wide temperature range.
• Shock/Vibration proof.
• Aluminium chassis with VESA 75mm mount and panel mount brackets.
• Headrest and stand alone mount accessories.
• Customization available for small qty.

Specifications:
Size: 10.4 inches

Aspect: 4:3
Colors: 256K

Native resolution: 1024x768px
Resolutions: 640x480px to 1200x1024px

Contrast: 700:1

Physical:
Storage temperature: -30ºC to 80ºC

Operation temperature -20 to 60ºC
Vibrations 1G 2-500Hz Shock 20G 11ms

Drop 10cm max. (1cm collision to display area)

Connections:
VGA input: Yes

USB hub: Opional
DVI input: Optional

Audion Input: Opional
Video input: 2 optional

Touch panel: USB/RS232
Rear camera input: optional

Power supply: 6-36Vdc

Any other quesrions, please check our website: www.inelmatic.com
