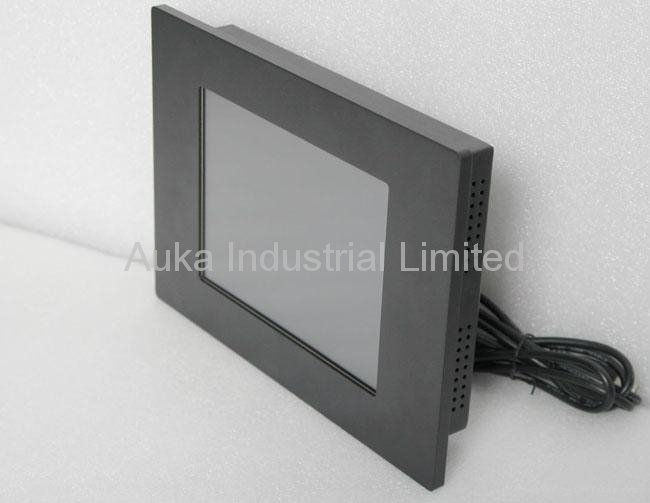

10.4 Inch Industrial Panel PC with Touch Screen
| Model: | PC-1042T |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Commerce & Finance Electronics / Other Commerce Electronics |
| Label: | industrial panel pc , touch screen pc , all in one computer |
| Price: |
-
|
| Min. Order: | 1 pc |
Product Description
Display Type/Size: Color TFT LCD/10.4 Inch
Active Display Area (mm): 214mm(W)× 160mm(H)
Display Model: 4: 3
Max Resolution: 800× 600
Support Color: 16.7M
Luminance(CD/m2): 300CD/m2
Backlight: CCFL; (LED backlight optional)
Contrast Ratio: 500: 1
Response Time: 7ms
Pixel Pitch: 0.264(H)× 0.264(V)
Viewing Angle: 110/150(H/V)
Chip set: Intel Atom D525+ICH8M
CPU: Intel core D525(optional N455/N475 CPU)
Internal memory: DDR3(800/1066/1333MHz)Typ. 2G (Max 4G optional)
Hard disk: 16G SSD
VGA ports: 1xVGA Ports
COM ports: Defaultx2 COM(optional)
Ethernet ports: One Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g. )
Audio: with Realtek ALC662; Line-In/Line-Out/Speaker out with 3W AMP Circuit USB ports: Defaultx4 USB(Max x6)
TouchScreen Type: 4-wire Resistive(5-wire optional)
Optional Touch Type: SAW, IR, Capacitive
TouchScreen interface: Serial (RS232) or USB
Input Voltage: DC12V 4A
Output Rating: ≤ 18W
Operating Temperature: -20~70ºC
Storage Temperature: -20~70ºC
Relative Humidity: 20(%RH)~90(%RH)
Active Display Area (mm): 214mm(W)× 160mm(H)
Display Model: 4: 3
Max Resolution: 800× 600
Support Color: 16.7M
Luminance(CD/m2): 300CD/m2
Backlight: CCFL; (LED backlight optional)
Contrast Ratio: 500: 1
Response Time: 7ms
Pixel Pitch: 0.264(H)× 0.264(V)
Viewing Angle: 110/150(H/V)
Chip set: Intel Atom D525+ICH8M
CPU: Intel core D525(optional N455/N475 CPU)
Internal memory: DDR3(800/1066/1333MHz)Typ. 2G (Max 4G optional)
Hard disk: 16G SSD
VGA ports: 1xVGA Ports
COM ports: Defaultx2 COM(optional)
Ethernet ports: One Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g. )
Audio: with Realtek ALC662; Line-In/Line-Out/Speaker out with 3W AMP Circuit USB ports: Defaultx4 USB(Max x6)
TouchScreen Type: 4-wire Resistive(5-wire optional)
Optional Touch Type: SAW, IR, Capacitive
TouchScreen interface: Serial (RS232) or USB
Input Voltage: DC12V 4A
Output Rating: ≤ 18W
Operating Temperature: -20~70ºC
Storage Temperature: -20~70ºC
Relative Humidity: 20(%RH)~90(%RH)
