Absorb style dot peen marking machine

Model:	BY-09P
Brand:	Benyon
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Engraving & Etching Machine
Label:	Marking machine , Dot peen marking mac
Price:	-
Min. Order:	-

Inquire Now

Product Description

√Description:

BY-09 DOT PEEN MARKING MACHINE --- combined with marking part and controller . The controller insetted a mini industry PC which could operate it directly. Computer controlled the pin to moves in X-Yplane, stylus pin dotting on the surface of workpiece with high frequency and mark logo (characters,VINcodes ,serialNO ,date ,graph ,matrix ect). This model is best choose for on-line marking

√Marking machine high performance:

◆Marking contents: all kinds of logo (characters , Alphanumeric , date, numbers , serial NO, VIN codes, graph ,ect) on any metal or non-metal material.

◆support plane marking (curve or any angle)

◆support flat or regular convex surface marking

◆Support “line” and “dot ” marking

√Marking software function:

◆PC not inquired

◆Support WINDOWS98/XP

◆Support multi-kinds fond

◆Support linear ,angular , radial , indination, inverted ,mirrored marking .

◆All the logo size could changeable as will

◆Marking speed is changeable as will

◆ protect VIN code exactness automatically

◆Support . MVG format graph from CAD ,CORLEDRAW

◆ALL marking contect could be saved as .xls format file.

◆ Simple graph could draw directly by our marking software

◆ support series No and mass data marking one by one automatically

◆Marking contents could be saved automatically and not be destroyed due to the electric-break

◆Connect with ARGOX PPLA , ARGOX PPLB and barcode timing output

√Main tech-specification:

Marking speed	30-40MM/S
Hitting frequency	300HZ
Marking depth	0.1-1mm(according to the workpiece material )
Marking accuracy	0.02mm
Marking scope	110*80mm (customrization any marking area )

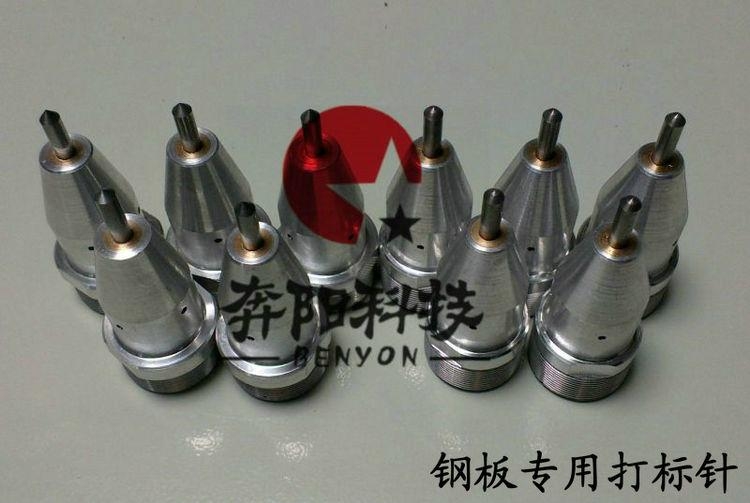

Pinhead hardness	HRA92
Workpiece hardness allowed	≤HRC62
Inputting air pressure	0.3-0.6MPA
Power consumption	≤350W
Voltage	AC220V±10%，50Hz
Working Temperature	0℃-40℃
Relative humidity	≤90%

√Application:

Material :aluminium , iron , copper, stainless steel, Invar; Coated & Plated Metals; Nylon, ABS, Polycarbonate, PVC . Most metallic materials mark well.

Application Industry: automobile or bodywork of motorcycle, car frame, automotive chassis, engine, and mechanical part, machine tool, metal pipe, gear, pump body, valve, various hardness plastic products.
