Condi electrode humidifier

Condi electrode humidifier
Model:OEM
Brand:Condair
Origin:Made In Switzerland
Category:Industrial Supplies / Environment Protection Facilities / Air Purifier
Label:Condi humidifier , Electrode humidifier , Humidifier
Price: -
Min. Order:1 pc
Inquire Now
点击这里给我发消息

Product Description

Condair OEM steam humidifier is specially designed for indoor humidifying directly or indirectly a free flow of steam generator, when the water in water form, it is not conductive.Daily use tap water can conduct electricity because there are a number of mineral salt in water, the working principle of electrode type steam humidifier is to use the electrical conductivity of the water.When with mineral salt water through inlet valve into the humidifying barrels, humidification barrels of upper electrode as the water level will increase gradually submerged, because with the mineral salt water is a conductor, so when the water in contact with the electrodes can form pathway, at this time to the electrode voltage, high speed movement, the ions in the water will generate heat, which makes water clean saturated steam heating, and spread by steam device into air conditioning box or duct, so as to achieve to the purpose of air humidification.According to the effect of bajaur, steam production and current is proportional to, and then with water is proportional to, the current is through the main control board, current transformer measurement through the inlet valve and drain valve cycles on and off, adjust the water level, to accurately adjust current and steam production.Evaporation when water levels will decline, but with no water in the steam mineral salt, so that the mineral salt concentration in the water will increase, and the conductivity will increase, once the current to reach the upper limit of the microprocessor control configuration, drain valve will get rid of high concentration of water, and then through the inlet valve added new water, achieve the purpose of dilution, so to protect the humidifying barrels.Long running scale attached to the electrode plates will be produced, will be cut off contact of electrodes and ion in water, thus affecting humidifying capacity, so the humidifying barrels to regular cleaning and replacement.System composition:Mounting bracket, steam generator, filling water box, into the drainage water electromagnetic valve and matching connecting pipe, the humidifying computer control panel (optional), condensed water pipe (optional), steam delivery hose (optional), steam distributor (optional).

Product featuresInto the drainage solenoid valve: the valve body, valve core, sealing ring using imported raw materials, high temperature, high pressure resistance, high strength, not easy to damage, reliable performance, 500000 switch life.Steam delivery hose: high temperature resistant, non-toxic, tasteless, long service life.Into the drainage hose: use rubber materials, non-toxic, tasteless, good toughness, no crack, anti-aging.Pieces made of special materials can be clean type humidifying barrels, high temperature aging, not only can flame retardant anti-scaling, coupled with the barrel adopts the folding structure, convenient maintenance, greatly reduce the operation cost.In pieces due to the electrode type steam humidifier is borrow the ions in the water conductive, no water, no electricity, there won't be any dry, secure excellent results, and this is all the constant temperature and humidity of manufacturers use the electrode humidification.Complete sterilization, no dirt, no white powder, so the hospital adopt electrode humidification.Pieces of high level alarm and prevent overflow design. Application placesMixer hospitals, pharmaceutical factory, health institutionsMixer, semiconductor chips, photoelectric, circuit boards, liquid crystalMixer coating workshopIn pieces cigarette factory, textile factory, wood processing plantsPieces of library, art galleries, museums, archives, printing plantPieces of computer room, program-controlled equipment roomMixer office buildings, high-grade hotelMixer, cold storage, food processing plants and controllingPieces of nuclear power, aviation, war industry, offshore platforms

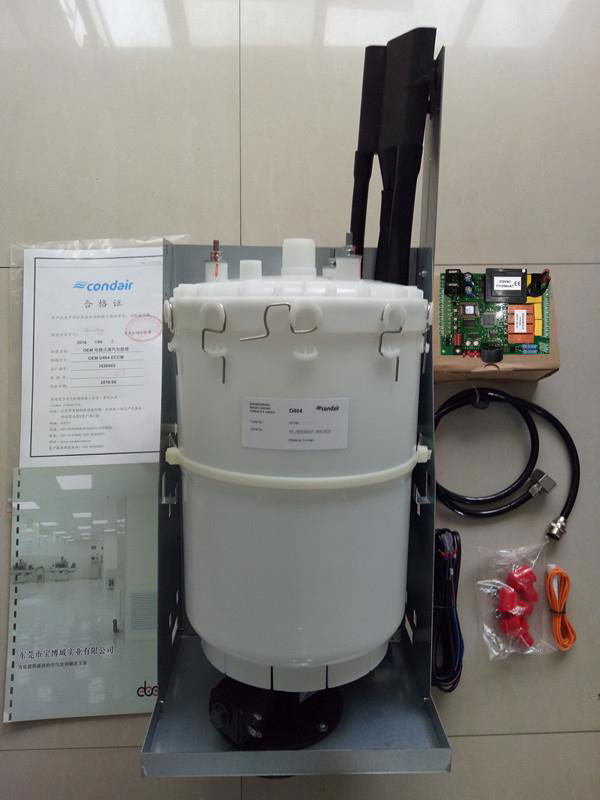

Condi electrode humidifier 1Condi electrode humidifier 2Condi electrode humidifier 3Condi electrode humidifier 4
