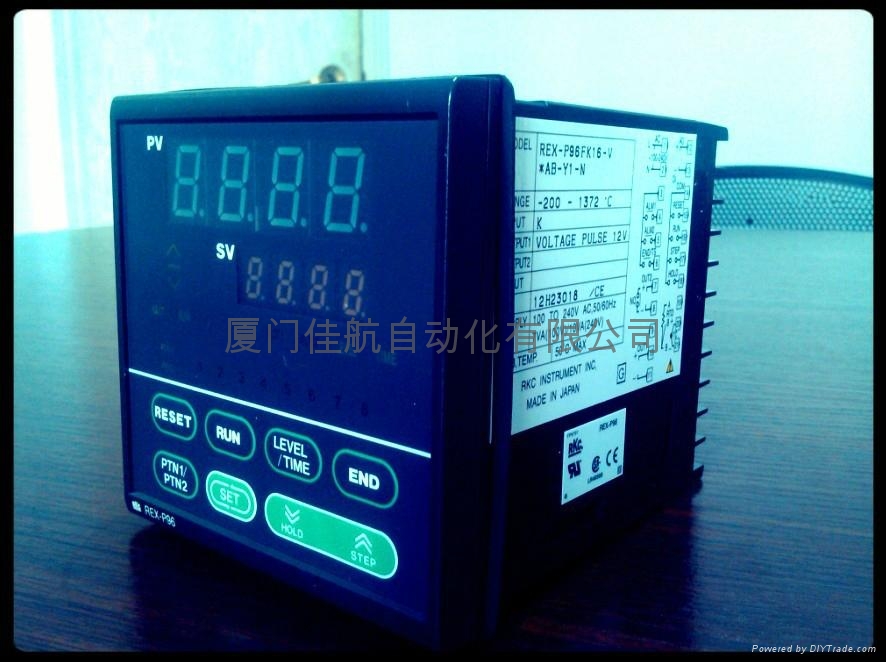

REX - P96/48 program type temperature controller

The most suitable for simple program type temperature controller



< characteristics >

Setting procedure is simple, easy to operate

The key to distinguish in accordance with color, with temperature slope status display lamp display program state

Can go to the lavatory use of SPC

Economical and practical type of program type temperature controller

In accordance with the purposes and to the size of the two same function model

Corresponding overseas security specification (optional)

(to prepare the CE MARKING for product, UL/CSA recognized product, etc.)

Memory program

Every 1 program has eight segments

2 the program (can be connected)

input

Thermocouple, temperature resistance

Sampling cycle

0.5 seconds

Measurement precision

± (Span of 0.3% + 1 digit)

Control mode

PID control * can be two position, P, PD, PI action (with automatic calculus)

Heating/cooling PID control

Control output

Relay contact output, SSR drive with voltage pulse output, current output

communication



Outlook size

REX - P48:48 x96x100mm

REX - P96:96 x96x100mm

Standard function

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Matching function

Grade PID control (4 level), alarm functions: a maximum of 2 point (temperature alarm), program end output: 1 point, time signal output: 1 point, the external contact input: 4 point (RESET, RUN, HOLD, STEP), analog transmission output
