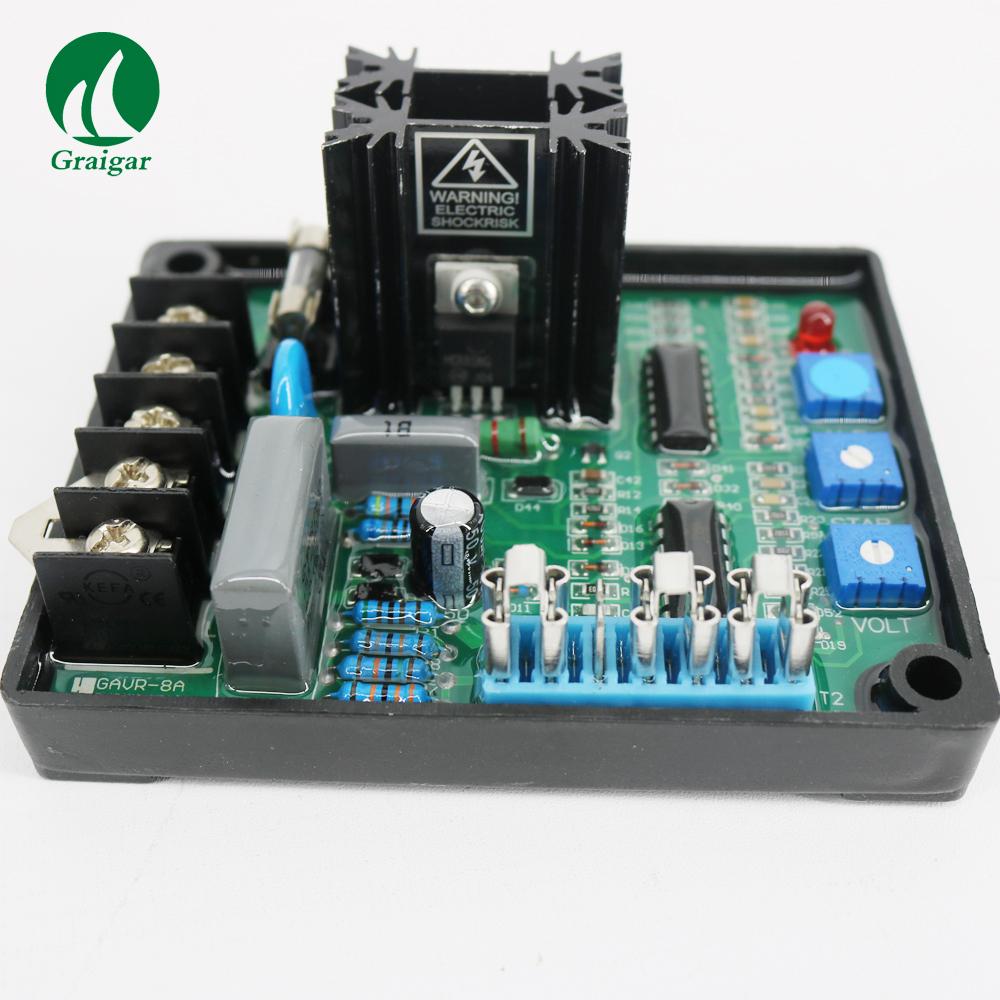

Product Description

Generator a generator in the boot, the remanence and a very weak voltage, this voltage back to the excitation coil of the generator and produce a stronger magnetic field, a high voltage so slowly voltage has grown.

The output voltage is higher than the set voltage excitation board will control the output of the low excitation current becomes small, on the other hand, the output voltage does not control or control of very small angle, the voltage will rise.

TECHNICAL DATA

INPUT

Voltage: 90-480V AC

Frequency :50-60 Hz nominal

POWER OUTPUT

Voltage: 95-264V ac max

Frequency:50-60 HZ nominal

OUTPUT

Voltage: max 90V dc at 207V ac input

Current: continuous 2A

Intermittent 5A for 10 Secs

Resistance:18 ohms minimum

REGULATION: +/-1.0%
