PS/GPPS diffusion sheet/panel extrusion line

Model:	LSJ-100/36
Brand:	Leader Machinery
Origin:	Made In China
Category:	Industrial Supplies / Rubber & Plastics Machine
Label:	diffusion panel , ps panel extrusion , gppd panel extrusion
Price:	US $115000 / SET
Min. Order:	1 SET

Inquire Now

Product Description

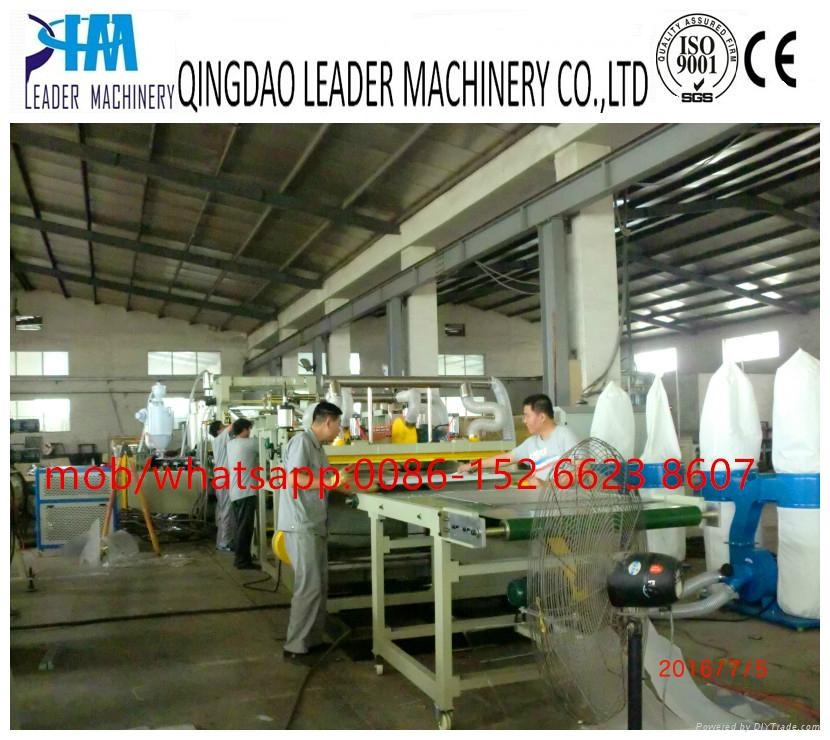

PS/GPPS Diffusion Sheet/Panel Extrusion Line
Diffusion panel is applicable to direct type and side type light source LED lighting.
Direct type light source led light, like downlights, grille lights, high grade aluminum lights.
Side type light source led light, like flat panel lights, advertising light boxes, professional
film viewer, usually used with light guide panel.

MAIN TECHNICAL DATA:

main extruder model	120/35	130/38
main driving motor power	185kw	250kw
Co-extruder model	45/30	45/30
Co-extruder driving motor	22kw	22kw
Sheet width	1000mm	1220-2100mm
Sheet thickness	0.3-3mm	0.2-2mm
Max output	450kg/h	600kg/h

MACHINE SPECIFICATIONS:

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (120/35 or 120/38)			1 set
3	Hydraulic exchanging unit			1 set
4	Melting gear pump			1 set
5	T-type /hanger type die head (JC-Times brand)			1 set
6	Three Roller Calendars (alloy steel material )			1 set
7	Rollers thermoforming machine			1 set
8	Cooling frame and edge cutting unit			1 set
9	protective films coating unit			1 set
10	Haul off machine			1 set
11	Plastic cutting machine-guillotine			1 set
12	Stacker			1 set
13	Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
14	Spare parts			1 set

PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set

PART 3 SHEET SPECIFICATIONS
1	Sheet width	1000-1220-2100mm
2	Sheet thickness	0.3-3mm
3	Type	GPPS single layer or GPPS and PMMA co-extrusion layers
4	Raw material	GPPS, PS, PMMA

PART 4 SHEET APPLICATIONS
1	flat panel lights, advertising light boxes, professional film viewer,
2	usually used with light guide panel.

PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1	Payment terms	40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time	80 days after receipt of prepayment
3	Packing method	Wooden cases/pallets with stretching films
4	Guaranteed time	18 months for mechanical parts, 12 months for electrical parts
5	After sale service	Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6	Contact	Ms Lilly Zhou (mob: 0086-15266238607)
