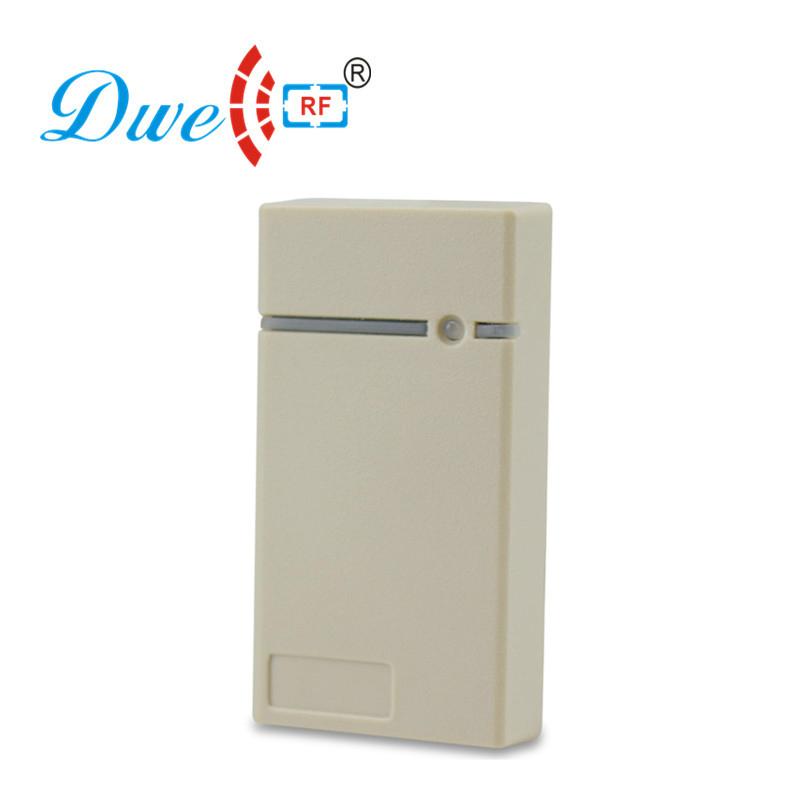

D201A(B) 5 to 10 cm short range 125 KHz or 13.56 MHz reader with wiegand 26, wiegand 34 protocol

Selling Point:

1. Smallest size

2. White and black color optional .

3. Waterproof

4. Simple and easy installation

5. FCC certification

Optional Model:

D201A-26, (Black Color, wiegand 26 interface)

D201A-34, (Black Color, wiegand 34 interface)

D201B-26, (White Color, wiegand 26 interface)

D201B-34, (White Color, wiegand 34 interface)

Specification

Wiegand 26bits/ Wiegand34bits Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature:-25ºC to 75ºC

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer

With Water-Proof Function

Audiovisual indication: When a registered card is presented to the reader, the re

LED flashes green and the beep sounds.

80*43*16(mm)

Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)
