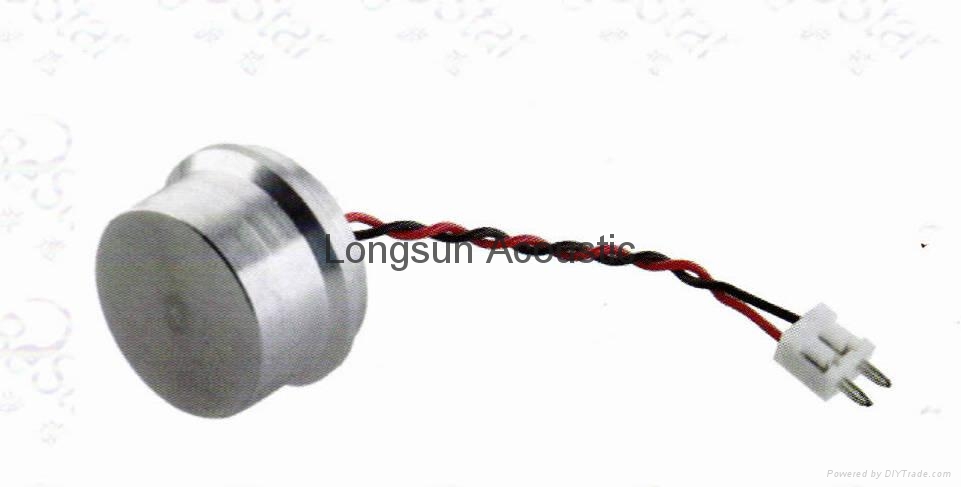

Sensor for ultrasonic distance measurement

Sensor for ultrasonic distance measurement
Model:HPU1548H10.7G
Brand:LONGSUN
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:sensor , knock sensor , control sensor
Price: -
Min. Order:2000 pc

Product Description

Features:

*Water proof and dual use;

*Compact and light weight;

*High sensitivity and sound pressure;

*Less power consumption;

*High reliability;

ELECTRICAL AND MECHANICAL CHARACTERISTICS:

Type: HPU1548H10.7G, dia: 15mm, H: 10.7mm

Using Method: Dual use

Frequency: 48±1KHz

S.P.L: >= 90dB (30cm/10Vrms)

Sensitivity: >= -75dB/V/µ bar

Capacitance: 2500pF±25% at 1KHz

Directivity: 110 x 50 degree

Operating Temp.: -40~ +85 centigrade

Storage Temp.: -40~ +85 centigrade

Allowable input Voltage: 160 Vp-p

Housing Material: Aluminum

Email for pricing and detailed requirements.




Price Terms:FOB China mainland port
Payment Terms:T/T
Packing:Carton lined with foam tray
Lead Time:35 days
Standards Certificate:ROHS
