Wire Twisting & Stripping Machine,copper wire twisting machine X-5016

Model:	X-5016
Brand:	XUXIN
Origin:	Made In China
Category:	Industrial Supplies / Electrical & Electronic Product Equipment
Label:	Wire Twisting machin , Wire Strip machine , wire twist machine
Price:	US $900 / pc
Min. Order:	1 pc

Inquire Now

Product Description

Contact: Lora Tang

QQ:1031964085

Mobile & wechat: 17751717336

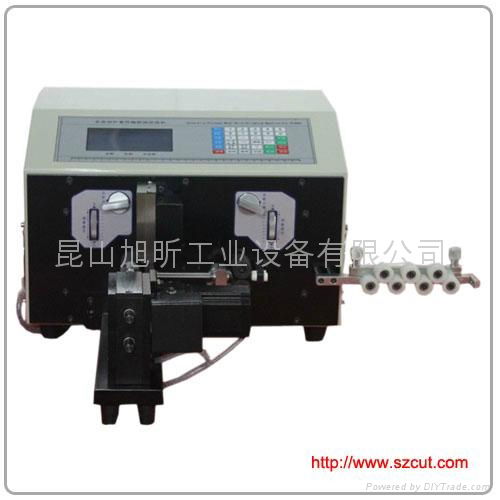

Automatic Wire Twisting Machine, Wire Twisting & Stripping Machine,copper wire twisting machine X-5016

The model is a factory successfully developed its own high-tech products. Main widely used in the electronics industry, electric power, injection molding equipment, electric tools, automobile and motorbike industry, electrical machinery, electrical appliances, air conditioners, washing machines, electronic instruments, toys, lamps, transformers, connectors and other types of products, wiring harness processing. Appropriate wire stripping:PVC/teflon/silica gel line /Glass fiber etc. This product USES the LCD screen people dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher character. Wire length can set arbitrary, according to the customer request free to change, different degree of finish off wire, also have on row line, sheath line, power lines and bushing cutting functions.

Model:	X-5016
Power:	AC 110V/220V/ 50/60Hz
Power:	Rated 450W
Display:	Full English LCD Display
Cutting length:	1mm-100000mm
Twisting length	Line head 0-35, line tail 0-20
Twisting way	Both sides or one side
Stripping length:	Line head 0-30, line tail 0-20
Cutting Tolerance:	(0.2±0.002xL) mm
Max. Middle Stripping Section:	16
Core cross-section cut-line:	0.1~2.5mm² ( AWG16#-AWG32#) Single up to 4.5mm²
Conduit diameter:	Φ6
Appropriate wire stripping:	PVC, Teflon, glass and wire
Blade Material:	Hard tungsten steel
Stripper speed (Article / h):	L=100mm, 3000-10000pcs/h
Drive Mode:	Four-wheel drive
Weight:	40kg
Dimensions:	450365265(mm)
Adjustable speed	0-9
