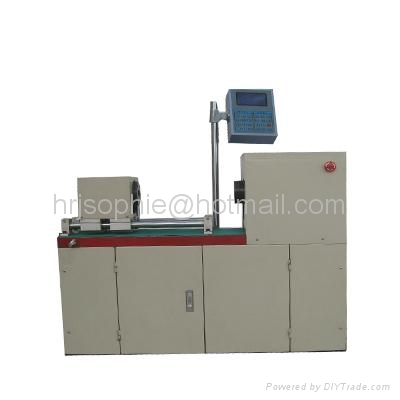

digital material torsion testing machine

digital material torsion testing machine
Model:NDS
Brand:bangke
Origin:Made In China
Category:Industrial Supplies / Electrical & Electronic Product Equipment
Label:testing machine , torsion test machine , torsion tester
Price: -
Min. Order:1 set
Inquire Now
点击这里给我发消息

Product Description

 Function and features:



This series machine comply with standard JB/T9370-1999 Technical Condition for Torsion Testing Machine, GB10128-88 Torsion Test Method of Metal at Room Temperature or according to customer’s requirements, to test the torsion force, torsion angle, angle stiffness for metallic, nonmetallic and other member such as transmission shaft, half shaft deformed nail, bolt etc.



This series machine adopt horizontal type, microcomputer CPU control the servo motor, photoelectric encoder collects the torsion angle,  240×128 dot-matrix LCD display the torque, torsion angle, easy to read out the test information, easy and convenient to operate.



Main specifications:

Model&spec.

NDS-50

NDS-100

NDS-200

NDS-500

Max. torque(Nm)

50

100

200

500

Torque resolution

0.001 N.m



Measuring range of torsion angle

09999°

Resolution of torsion angle

0.1°

Error of indicating value in forward direction and reverse direction

1%

Moving distance  of grips(mm)

0-300mm or can be made as required

Loading speed

0.0022r/min or can be made as required

Central height of the principle axis

170mm

Loading mode(mm)

Manual/electric (optional)

Data display mode

Microcomputer LCD display



Price Terms:FOB qingdao or convenient seaport in China
Payment Terms:TT/LC
digital material torsion testing machine 1digital material torsion testing machine 2
