Product Description:

Hybrid amplifier module operating over a frequency range of 40 to 1003 MHz at a voltage supply of +24V(DC) ,employing GaAs MMIC.

• CTB: -69dB
• CSO: -68dB
• FL: ±0.5dB
• SL: 1-2.5dB
• S11/S22: -16/-12dB
• Frequency range: 40-1000MHz
• Voltage supply: 24V
• Total current consumption: 270-330mA
• Gain power: 23.5-26.5dB
• Noise figure: 5dB

Product Features:

• ·Excellent linearity
• ·Extremely low noise
• ·Excellent return loss properties
• ·High gain
• ·High reliability

If need more details, pls contact us anytime.

Recommend Products:

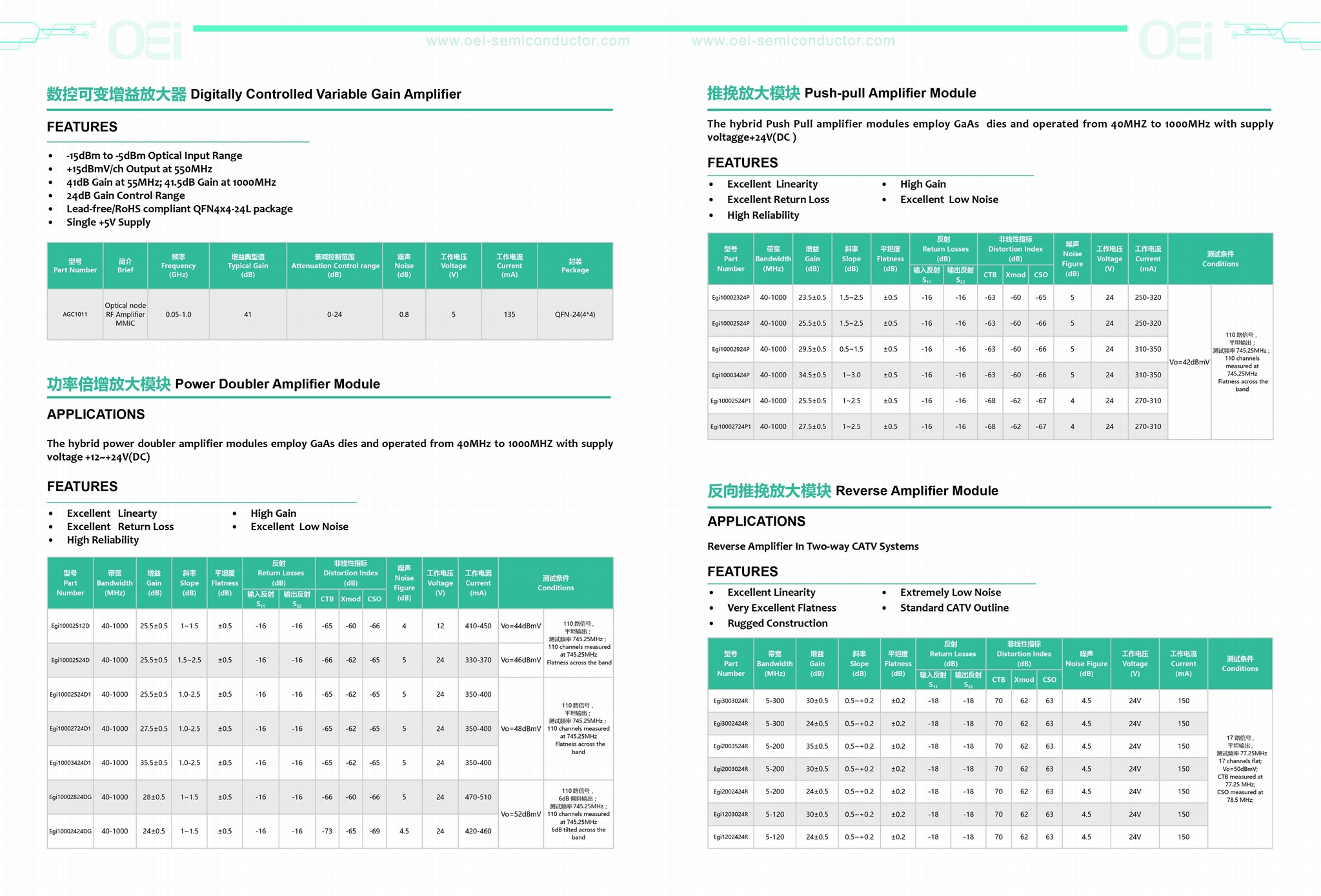

We also have other different data modules.

Egi1000xx24P1  series can be 27db power gain -Egi10002724P1 or 34db power gain- Egi10003424P1

If you have other demand on data, pls let us know.
