Low noise of the Stepper Motor Driver Board

Low noise of the Stepper Motor Driver Board
Model:MD430
Brand:-
Origin:Made In China
Category:Industrial Supplies / Machinery / Spraying Machine & Spreading Equipment
Label:MD430 , stepper driver , motor driver
Price: US $10 / pc
Min. Order:1 pc

Product Description

MD430 is the latest digital stepper motor driver that allows user to set any subdivision within 16 and any current value within 3.5A, so as to fulfill applications of most fields. Features low noise and heat generating, stable performance, this stepper motor driver is widely used for small to medium sized automation equipment like carving machines, cut-off machines, CNC machines and more.

Description:

  • Built-in 1, 2, 8, 16 subdivision, support automatic settings of parameters
  • Equipped with heat sink for better heat dissipation
  • High speed optocoupler isolation for input signal, guaranting no desynchronizing
  • Can drive 4 wire / 6 wire / 8 wire two-phase stepper motor
  • Optocoupler isolation single-end signal (common-anode) input
  • Up to 100KHz impulse response frequency
  • With short-circuit / reverse connection / over current protection

Specifications:

  • Min. Input Voltage: 12V
  • Rated Input Voltage: 24V
  • Max. Input Voltage: 34V
  • Operating Temperature: 0-50℃
  • Storage Temperature: -20-80℃
  • Size: Approx. 3 x 3 x 1.3 inch

Package Includes:

  • 1 x MD430 Stepper Motor Driver

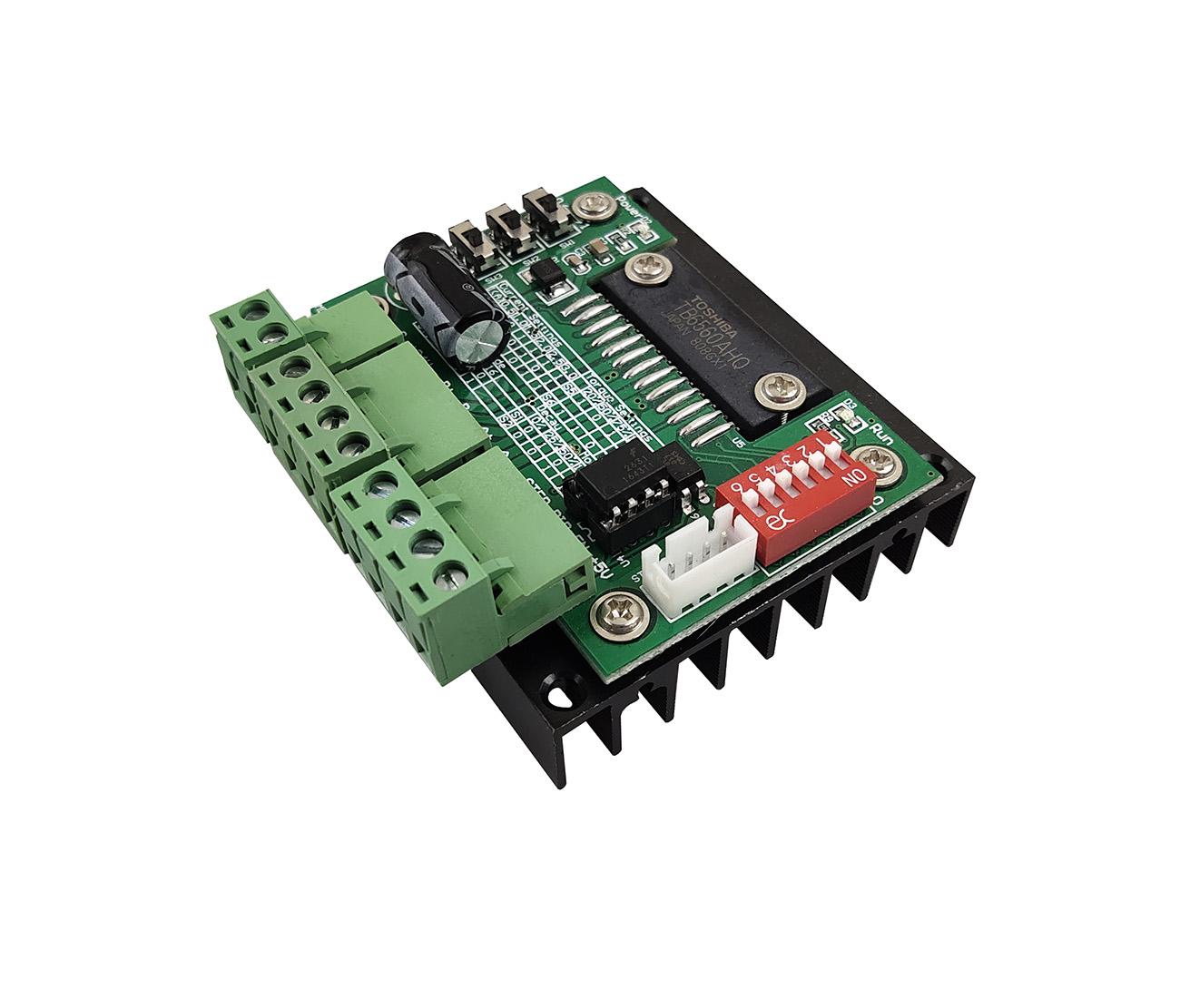

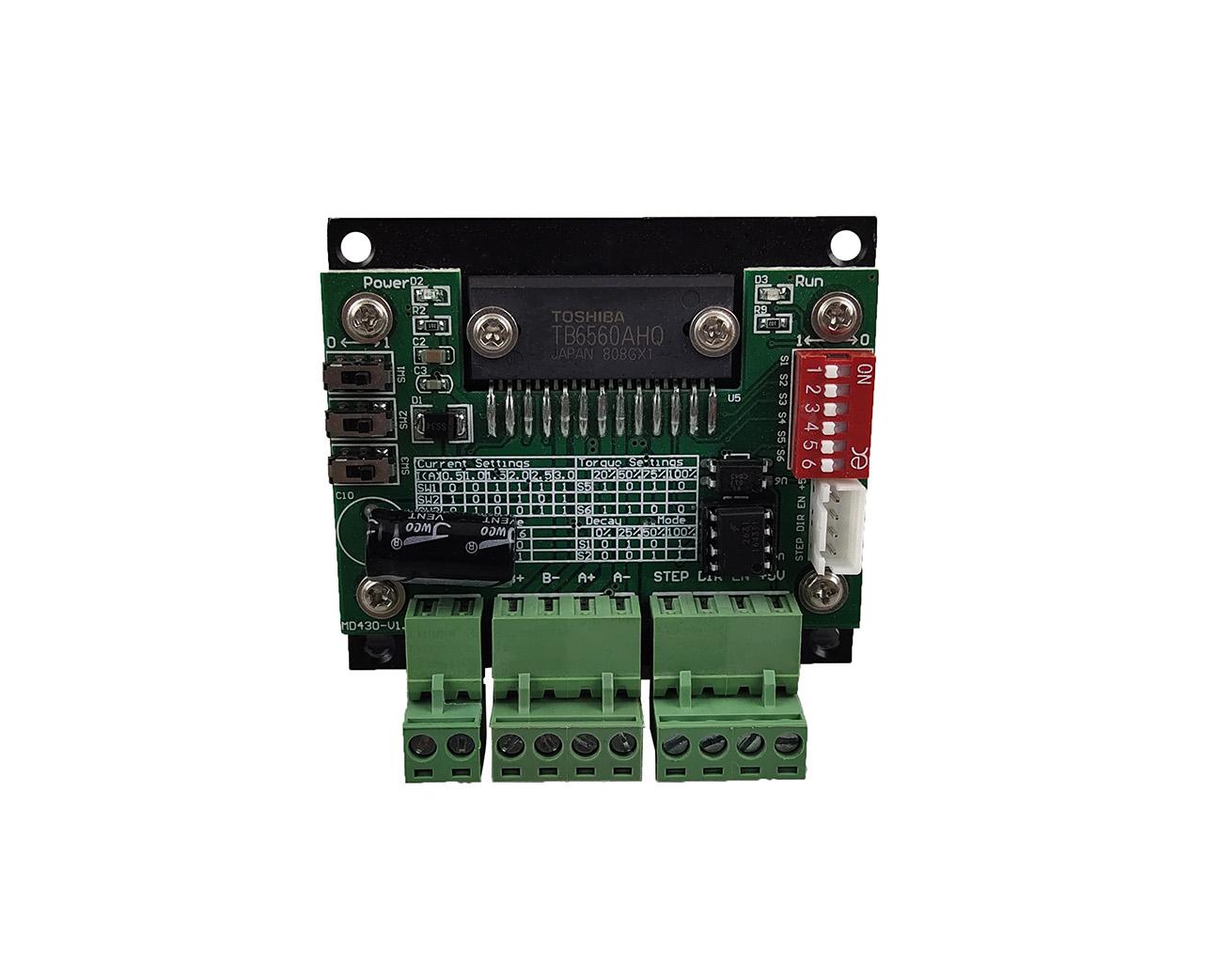

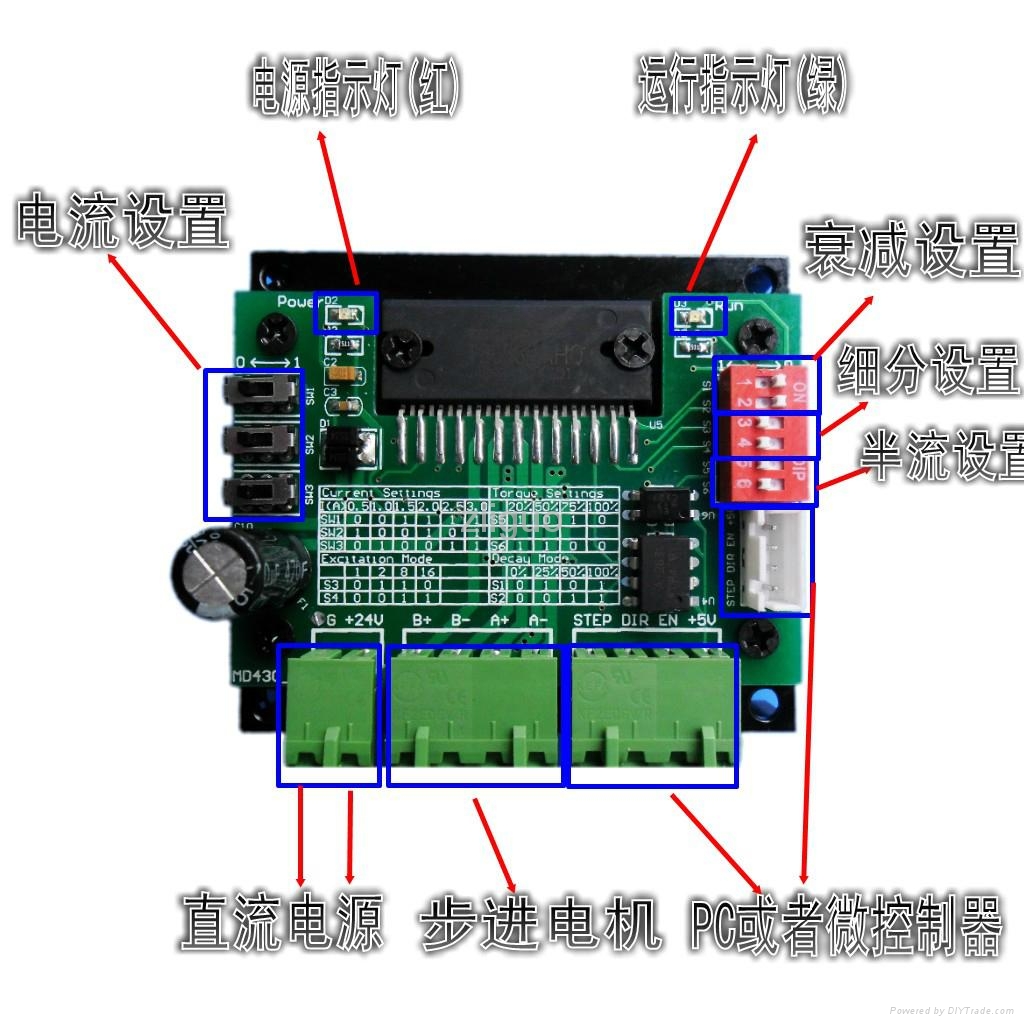

Low noise of the Stepper Motor Driver Board 1Low noise of the Stepper Motor Driver Board 2Low noise of the Stepper Motor Driver Board 3Low noise of the Stepper Motor Driver Board 4Low noise of the Stepper Motor Driver Board 5
