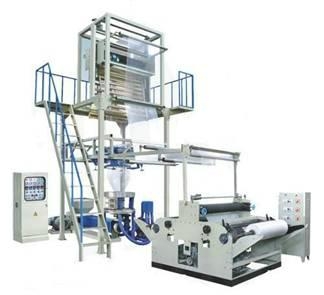

Lifting and Rotating Machine Head Film Blowing Machine Set Series (PE Heat-shrin

Lifting and Rotating Machine Head Film Blowing Machine Set Series (PE Heat-shrin
Model:CHSJ-50/55/65/6
Brand:Chengheng
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:film blowing machine , blown film machine , blowing film machine
Price: -
Min. Order:1 pc
Inquire Now

Product Description

The Closest Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical  parts lifetime warranty.
3 We will offer the professional answer and parts about relating machines in 48 hours on line
.

Feature:

It is used to blow high/low pressure polyethylene film widely used for producing composite film, packaging film, packaging bag or film for textile and clothing and other packing materials. The main motor adopts the frequency control of motor speed to improve the speed regulating stability and save the electricity by 30%. Both the screw and the charging barrel are made of 38 chrome-molybdenum aluminum through nitrogen treatment; and the traction frame applies the lifting type. No matter what size the film is (big or small), it can achieve the best effect of cooling.

Optional components:

 1)Auto loader 2)  Embossing roller 3)  Film surface treater 4) Rotary die head      5)  Air compressor 6) Mechanics screen changer 7) Auto lifting device.

Main Technical Parameters

Model

. CHSJ-55C

. CHSJ-60C

. CHSJ-65C

Diameter of screw

55mm

60mm

65mm

L/D ratio of screw

28:1

28:1

28:1

Rotation speed of screw

10-100r/min

10-100r/min

10-100r/min

Main motor power

Extrusion Capacity

15Kw 50kg/h

18.5Kw 65kg/h

18.5-22Kw 80kg/h

Maximum folding width of film

800mm

1000mm

1200mm

Single-sided thickness of film

0.01-0.10mm

0.01-0.10mm

0.01-0.10mm

Total power

26Kw

30Kw

36Kw

Machine weight

2.3T

2.6T

3T

Overall dimension

4200*2000*4900mm

4600*2300*5600mm

4800*2500*5800mm

Payment Terms:TT
