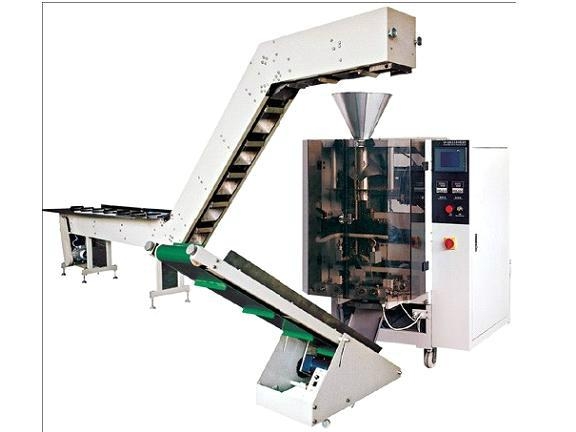

SK-220B Semi-automatic vertical form-fill-seal Machine

Model:	SK-220B
Brand:	Soonk Pack
Origin:	Made In China
Category:	Industrial Supplies / Packaging Related Machine
Label:	packing machine , packaging machine , form fill seal
Price:	¥68000 / SET
Min. Order:	1 SET

Inquire Now

Product Description

Features:

1. Compact and rational structure, stable performance,low noise,easy maintenance,bucket chain conveyor transporting.

2. Metering by hand and feeding with bucket chain conveyor. which is convenient to input prize card,lottery and uneasy measuring material or multi-type packing products. It is no empty bags will be formed when there is no material, less waste. The complete set is economical and practical.

Applications:

Suitable for packing fragile material and uneasily metering goods such as potato chip, crispy rice,fruit jelly,tea,dumpling,etc.,

Technic Specifications:

Model	SK-220	SK-420	SK-520
Air consumption	0.65Mpa3m3/min.6kg/cm2	0.65Mpa,3m3/min,6kg/cm2	0.65Mpa,3m3/min,6kg/cm2
Packing Film width	180-420mm	Max.420mm	Max.520mm
Bag Length	80-300mm	80-300mm	80-350mm
Bag Width	80-200mm	80-200mm	100-250mm
Film Roll Diameter	Max.360mm	Max..360mm	Max.360mm
Packing Speed	5-80bags/min	5-80bags/min	5-70bags/min
Film Thickness	0.04-0.08mm	0.04-0.08mm	0.04-0.08mm
Power Supply	220V.50/60Hz.2.4KVA	220V,50/60Hz,3kw	220V,50/60Hz,3kw
Machine Size	(L)1100x(W)925x(H)1600mm	(L)960x(W)930x(H)1600mm	(L)1430x(W)1200x(H)1700mm
Machine Net Weight	450kg	450kg	650kg
