Brief introduction:

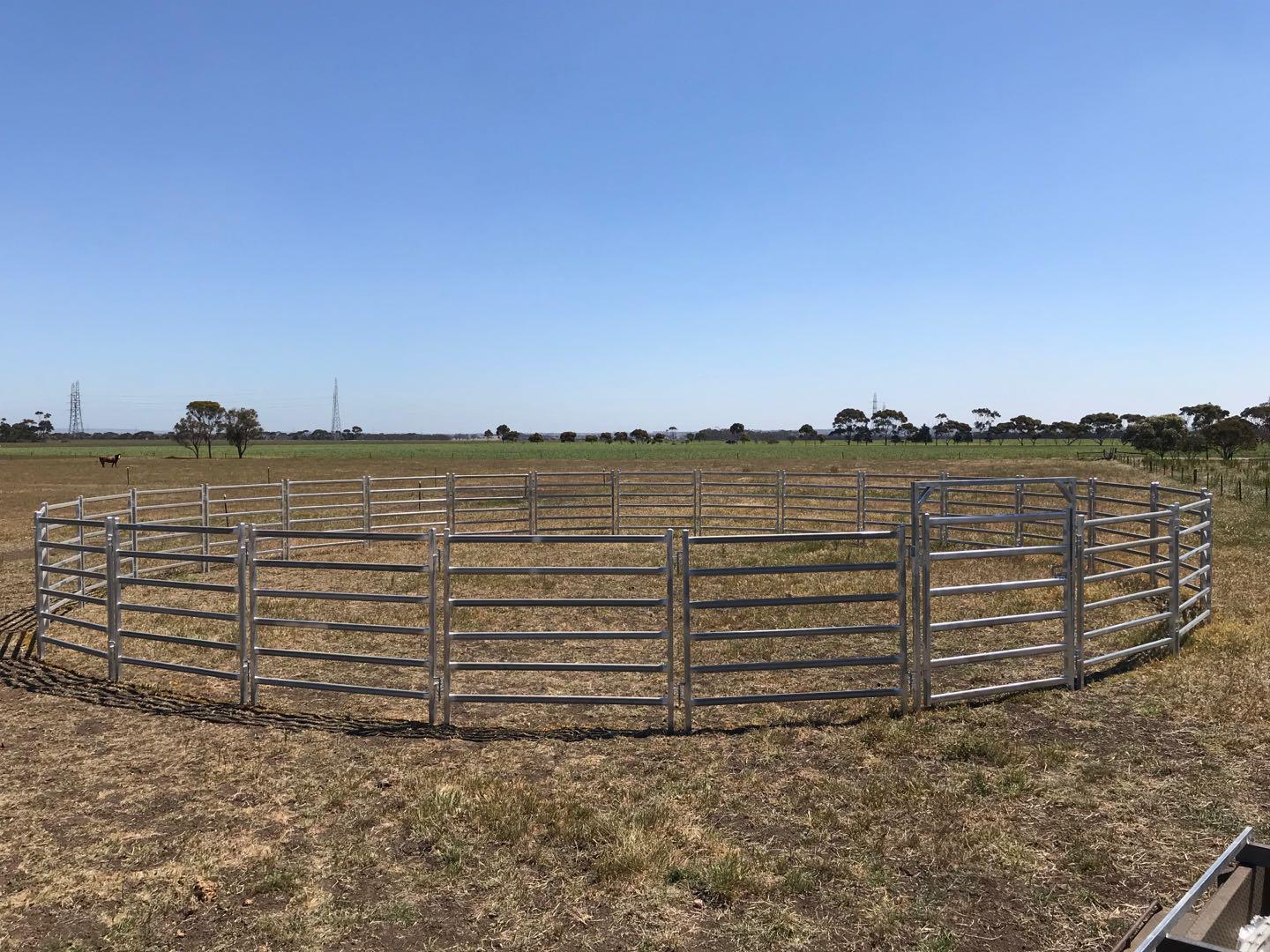

Horse ROUND YARDS 18m
25 panels 1 gate. Galvinised
Panels 2.1m long, 1.8m high. Railings 40 x 80mm. Posts 50mmx50mm. Capped
Foot. Panels. 1.6mm thick. Posts 1.8mm thick.
Gate 2.1 length. 2.6m high, chain lock.
Each panel weights 48kg.



Detailed information:



Materials: Carbon steel



Corrosion Form: hot-dipped galvanized or paint



Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.



Main markets: Australia, European countries, Canada, America and Asia countries.



Description:

-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

-Complete with Caps & Foot plates.

-Holes for ground pin on one leg of each panel.

-Elongated lug holes in brackets, for ease when connecting.

Specification

Specification	Normal size
Height x Length	1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on
pole style	Round pipe or square tube or oval tube
Pole specification	32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on
Package details	In steel pallet or in bulk

Different specifications are available according to customers' special inquiry or detailed drawings.

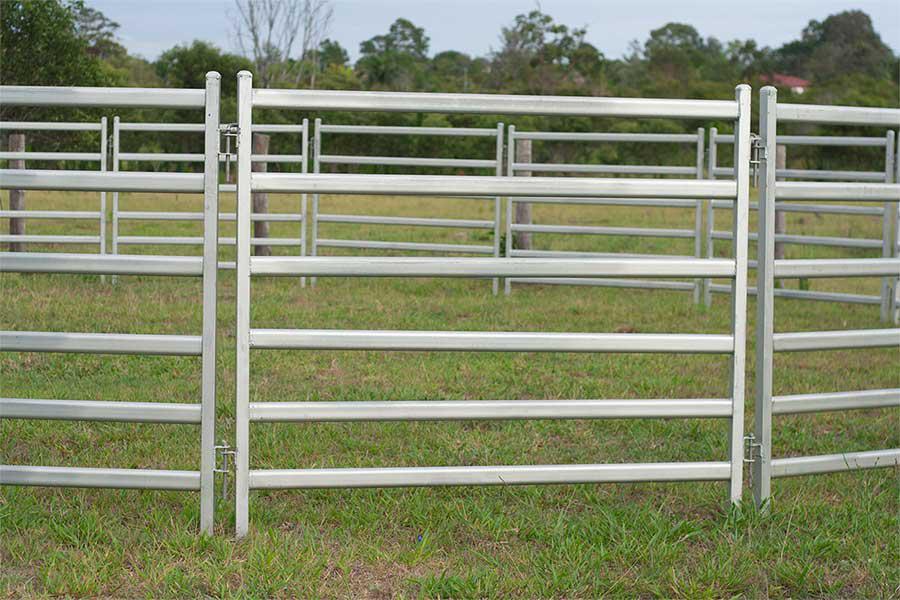

1)Round style livestock panels(Style 1)



Hot-dipped galvanized cattle panels



Height x Length :1.8x2.1m



Round pipe:40mm OD x 1.6mm thickness



2 joining pins supplied



Package: in high quality pallet

Round style livestock panels(Style 2)



Hot-dipped galvanized cattle panels



Height x Length :1.8x2.1m



Round pipe:32mm OD x 1.6mm thickness



2 joining pins supplied



Package: in high quality pallet



2) Oval tube style cattle panel



Hot-dipped galvanized cattle panels



Height x Length :1.8x2.1m



Vertical pipe:40x40mm RHS x 1.6mm thickness



Horizontal pipe:30x60mm oval rail x 1.6mm thickness



2 joining pins supplied



Package: in high quality pallet





3)Square tube style livestock





Hot-dipped galvanized cattle panels



Height x Length :1.8x2.1m



Square pipe:40x40mm RHS x 1.6mm thickness



2 joining pins supplied



Package: in high quality pallet







4) panel gates



Outside frame 2250mm (high) x 2100mm (long) x 40x40mm x 1.6mm square tube



Gate 1800mm (high) x 2030mm (long) x 30X60mm x 1.6mm oval tube - 6 bar



Hinges 2 Hinges to support gate



Catch Slam catch







Details showroom



Loading containers
