10.4 inch LED industrial all in one pc 3COM RS485

Model:	IPPC-104D-2R
Brand:	SUNPC
Origin:	Made In China
Category:	Computers & AV Digital / Computer Components / Display
Label:	industrial computer , touch panel pc , all in one pc
Price:	-
Min. Order:	2 pc

Inquire Now

Product Description

Warranty	18 months
Model Number	IPPC-104D-2R
Brand Name	SUNPC skype: shuaiyy1985

We are a manufacturer and have our own factory. our headquaters is in Shenzhen city and provide 8.4”,10.4”,12.1”,15”,17”,18.5”,19” and 22” intel Atom D525 PC, fanless industrial pc and I3/I5/I7 industrial computer, we shipped many goods to oversea.

Company name: Shenzhen SUNPC technology Co. LTD

Ms Catherine Skype:shuaiyy1985

10.4" LED Industrial Panel PC with intel® ATOM (Dual-core 1.8G) Processor

Model NO.: IPPC-104D-2R

IPPC-104D-2R :10.4" LED Industrial Panel PC support Intel® Atom D525 Dual-core 1.8GHz Processor, with 2G/4G RAM, 2.5" 320GHDD/16G SSD, with Resistive Touch Screen,DC12V/DC8-30V power

IO:3*COM( 2*RS232,1*RS422/485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*Mini PCI Features
1. 10.4" LED Panel support 800 × 600pixels
2. Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
3. Front 6mm aluminum bezel with IP65 compliant
4. Front hardness glass protect screen ( touch option )
5. 3COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,MIC
6. 1 xMini PCIe slot
7.Back For Power LED and HDD LED Indication
8. Wireless LAN with antenna (option)
9. Panel ( Flush ) mount with clips
10. Wide range DC 8-30V input (option)
11. Standard VESA 75/100mm support stand ,wall mount and swing arm

IPPC-120D-2RH picture 4

IPPC-150D-2R picture2

TFT Characteristics
Display Type	10.4XGA TFT LCD	Pixel Number	800 x 600
Pixel Pitch(RGB)	0.297*0.297	Contrast Ratio	500: 1
Light Intensity	250 cd/m2	Viewable Angles	160°(H) , 140°(V)
Max Colors	16.2MB	Response Time	5 ms
MTBF	50,000hrs.
System Characteristics
Processor	Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB	Chipset	Intel Atom D525 +ICH8M
Memory	1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB	Graphic	Intel GMA3150 chipset
HDD	Space for 1* 2.5"320G HDD/16G /32G/64G SSD	Audio	Realtek ® ALC662, 5.1 channel surround audio
Ethernet	Two LAN onboard:2*Realtek®RL8111x(Gigabit)10/100/1000 Ethernet	Mounting	Panel/VESA 7575mm/100100mm
VGA Port	1 * VGA Connector	Expansive Slot	1 * Mini PCIe
Serial Port	3 * COM( 2* RS232,1*RS422/485)	Speakers	2*2w (option)
Contruction	Aluminum front bazel and aluminum chassis	Watchdog Timer	255 Levels , 1-255 sec.
Available Options
Touch Screen	Resistive,intel USB interface controller	Wireless LAN/Wifi	Meet IEEE802.11b/g standard.
DC Power Input	Standard is DC12V input (DC 8 -30V option)	Speakers	2 * 2W
I/O Connector
PS/2	1 * PS2 for KB/ Mouse	Lan	2 *10/100/1000 MLan port(RJ-45)
VGA	DB-15 connector	USB	4 * USB 2.0
COM	2 * COM ( 1RS232, 1RS422/485)	Parallel port	1 * SPP/EPP/ECP port
DC Input	3Pin DC power input termnal block	Sound	Mic-in/line-out
Mechanical and Environmental
Operating temp.	32°F~125°F ( 0 °C to 50 °C)	Storage temp.	-4°F~140°F ( -20 °C to 60 °C)
Storage humidity	10% to 90%non-condensing	Shock(operating)	1G/peak (11m sec)
Vibration	17 to 500Hz 1G PTP	Front panel protection	IP65/NEMA 4 compliant
Dimension (WxHxD)	287.4 x 227.4 x 68mm	Weight	Net: 3.9 KG , Volume Gross:5.5KG
Power Supply

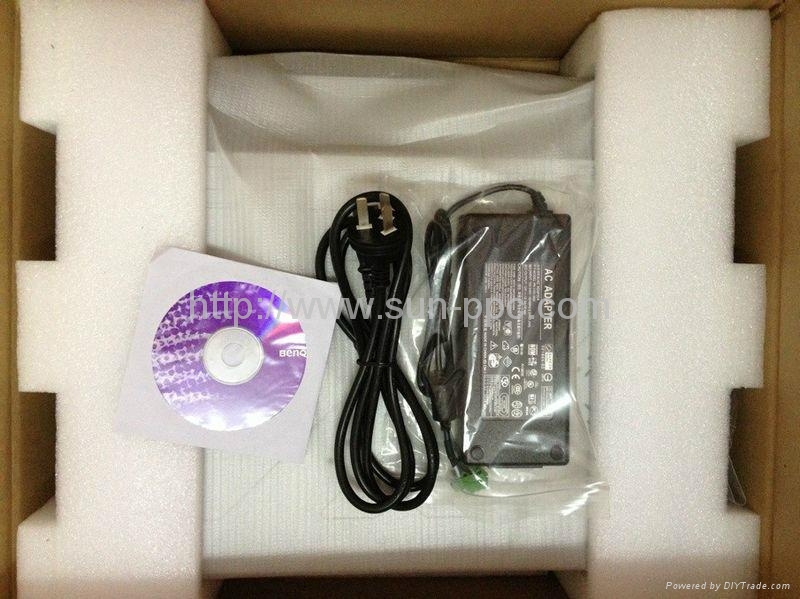

Output rating	30W	Input Voltage	8~30v, External AC adapter
Certification	CE/FCC/ RoHS

Ordering Information

IPPC-104D-2R :10.4" LED Industrial Panel PC support Intel® Atom D525 Dual-core 1.8GHz Processor, with 2G/4G RAM, 2.5" 320GHDD/16G SSD, with Resistive Touch Screen,DC12V/DC8-30V power IO:3COM( 2RS232,1RS422/485), 2PS2, 1VGA, 1LPT, 4USB, 2LAN, 1* Audio, 1* MIC,1*Mini PCI MP-MS150NW: Mini-PCIE wireless Lan card with antenna
Optional:
Storage	16G SSD/32GSSD/64G SSD
Wireless LAN	Wifi
Power supply	DC8-30V
Speakers	2 * 2W
